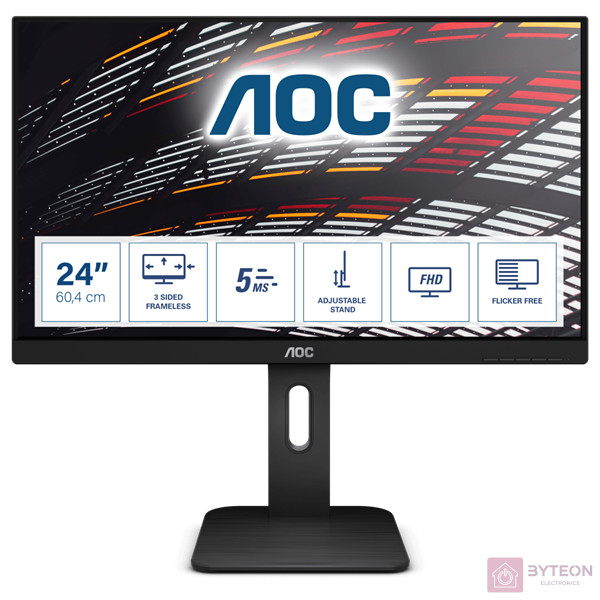

Model name
|
24P1
|
EAN
|
4038986146630
|
Product Line
|
Pro-line
|
Series
|
P1
|
Channel
|
B2B
|
Classification
|
Hero
|
Section
|
Business
|
Launch date
|
29/05/2018
|
|
|
|
|
|
|
Screen
|
|
|
|
Resolution
|
1920x1080
|
Refresh rate
|
60Hz
|
Screen size (inch)
|
23.8 inch
|
Screen size (cm)
|
60.4 cm
|
Flat / Curved
|
Flat
|
Backlight
|
WLED
|
Panel Type
|
IPS
|
Aspect ratio
|
16:9
|
Display Colours
|
16.7 Million
|
Panel Colour in Bits
|
6
|
sRGB Coverage (%) (CIE 1931)
|
106
|
Adobe RGB Coverage (%) (CIE 1931)
|
78
|
Active Screen Area (HxW)
|
527,040 x 296,46 mm
|
Pixel Pitch
|
0.2745
|
Scanning Frequency
|
"30~83KHz(H) 50~76Hz(V)"
|
Response time (GtG)
|
5 ms
|
Contrast (static)
|
1000:1
|
Contrast (dynamic)
|
50M:1
|
Brightness (typical)
|
250 cd/m²
|
Viewing angle (CR10)
|
178/178 º
|
Hard Glass
|
3H
|
OSD languages
|
EN, FR , ES, PT, DE, IT, NL, SE, FI, PL ,CZ, RU, KR, CN (T), CN (S), JP
|
|
|
|
|
|
|
Exterior
|
|
|
|
Monitor colour
|
Black
|
Bezel Type
|
Borderless
|
Removable Stand
|
Yes
|
|
|
|
|
|
|
Ergonomics
|
|
|
|
Vesa Wallmount
|
100x100
|
Tilt
|
-5/35 °
|
Swivel
|
-180/180 °
|
Pivot
|
Yes
|
Height Adjust Amount
|
150mm
|
|
|
|
|
|
|
Connectivity and Multimedia
|
|
|
|
Signal Input
|
HDMI 1.4 x 1, DisplayPort 1.2 x 1, VGA, DVI
|
USB input
|
USB 3.0 x 4
|
USB out ports
|
4
|
|
|
|
|
|
|
Multimedia
|
|
|
|
Audio Input
|
Line in
|
Built-in Speakers
|
2 W x 2
|
Audio output
|
Headphone out (3,5mm)
|
|
|
|
|
|
|
Features
|
|
|
|
Flicker-free
|
Yes
|
Blue Light Technology
|
Low blue light
|
|
|
|
|
|
|
Power / Environmental
|
|
|
|
Powersupply
|
Internal
|
Powersource
|
100 - 240V 50/60Hz
|
Power Consumption On (Energystar test method)
|
16.73 watt
|
Power Consumption Standby
|
0.32 watt
|
Power Consumption Off
|
0.23 watt
|
EnergyClass
|
E
|
Approbations / Regulations
|
Yes
|
|
|
|
|
|
|
Listed on Energystar Website
|
|
|
|
TCO
|
8
|
EPEAT
|
Yes
|
Listed on Epeat Website
|
Yes
|
TUV-GS
|
Yes
|
TUV-Bauart
|
Yes
|
CE
|
Yes
|
FCC
|
Yes
|
EAC
|
Yes
|
|
|
|
|
|
|
Warranty
|
|
|
|
Pixel Policy
|
ISO 9241-307
|
Warranty Period
|
3 Years
|
MTBF
|
50.000 hours
|
|
|
|
|
|
|
Dimensions / Weights
|
|
|
|
Product height (mm)
|
518.9
|
Product width (mm)
|
539.1
|
Product depth (mm)
|
219.5
|
Product dimensions incl base
|
518.9x539.1x219.5
|
Product dimensions excl base
|
325.6x539.1x49.4
|
Packaging Dimensions (L x W x H)
|
752x159x408 mm
|
Product Dimensions (incl base)
|
518.9x539.1x202.5 mm
|
Gross Weight (including package)
|
6.55 Kg
|
Net Weight (excluding package)
|
4.6 Kg
|
|
|
|
|
|
|
What's in the Box?
|
|
|
|
HDMI cable
|
1,8 m
|
Displayport Cable
|
1,8 m
|
Audio Cable
|
1,5 m
|
USB cable
|
1,8 m
|
Power Cable C13
|
1,8 m
|
