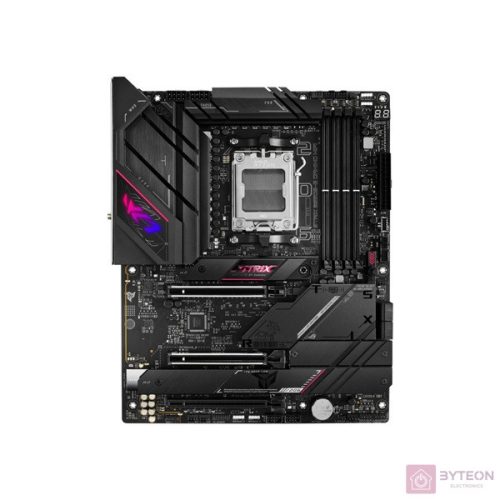

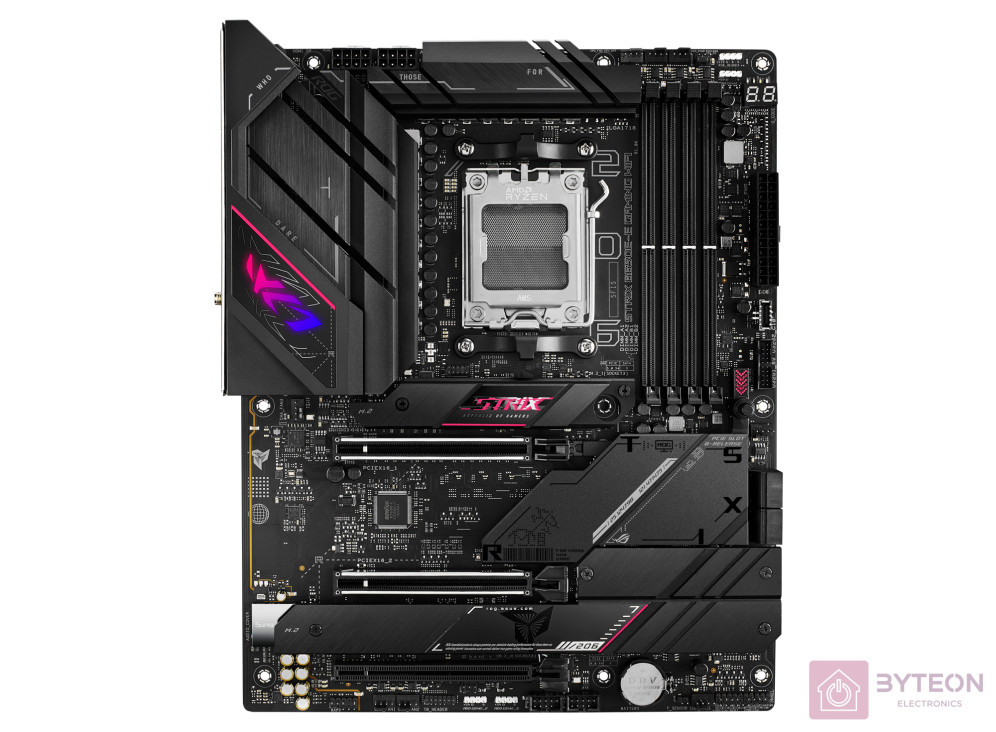

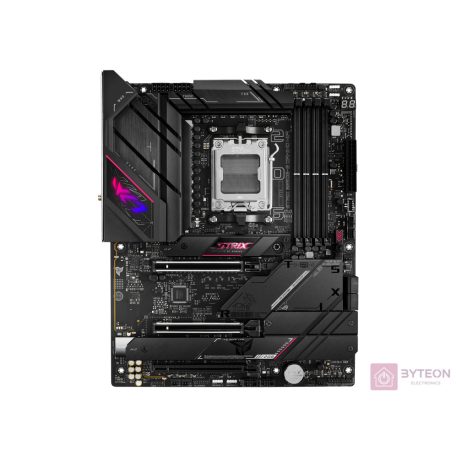

ASUS ROG STRIX B650E-E GAMING WIFI SocketAM5 ATX alaplap
ASUS ROG STRIX B650E-E GAMING WIFI SocketAM5 ATX alaplap
159 860 Ft

ASUS ROG STRIX B650E-E GAMING WIFI SocketAM5 ATX alaplap

ASUS ROG STRIX B650E-E GAMING WIFI SocketAM5 ATX alaplap
Gyártó
Asus
Gyártói cikkszám
90MB1BB0-M0EAY0
Garancia
12 hónap
További adatok
Raktáron
159 860 Ft
Külső raktár
3 db
Szállítás 4-5 munkanap
Részletek


CPU




AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*



* Refer to www.asus.com for CPU support list.







Chipset




AMD B650







Memory




4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, Un-buffered DDR5 Memory supports

On-Die ECC function







Graphics




1 x DisplayPort*

1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**Supports max. 4K@60Hz as specified in HDMI 2.1.







Expansion Slots




AMD Ryzen™ 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes)

AMD B650 Chipset**

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).







Storage




Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.







Ethernet




1 x Intel® 2.5Gb Ethernet

ASUS LANGuard







Wireless & Bluetooth




Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries.







USB




Rear USB (Total 12 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 ports

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports







Audio




ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback"

Audio Features

- Audio Shielding

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover







Back Panel I/O Ports




1 x USB 3.2 Gen 2x2 port (1 x Type-C®)

7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 xUSB Type-C®)

4 x USB 2.0 ports

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks*

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.







Internal I/O Connectors




Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with

Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header







Special Features




Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA

[white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsinks

- M.2 heatsink backplate

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers







Software Features




ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual

Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- Aura Creator

- Aura Sync

- Fan Xpert 4

- Power Saving

- Two-Way AI Noise Cancellation

AI Suite 3

 TPU

 DIGI+ VRM

 Turbo app

 PC Cleaner

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Dynamic OC Switcher

FlexKey







BIOS




256 Mb  Flash ROM, UEFI AMI BIOS







Manageability




WOL by PME, PXE







Accessories




Cables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

2 x Rubber Packages for M.2

Documentation

1 x User guide







Operating System




Windows® 10 64-bit, Windows® 11 64-bit







Form Factor




ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )




Adatok
Garancia (jogi személy):
24
Tömeg:
2,96 kg/db
