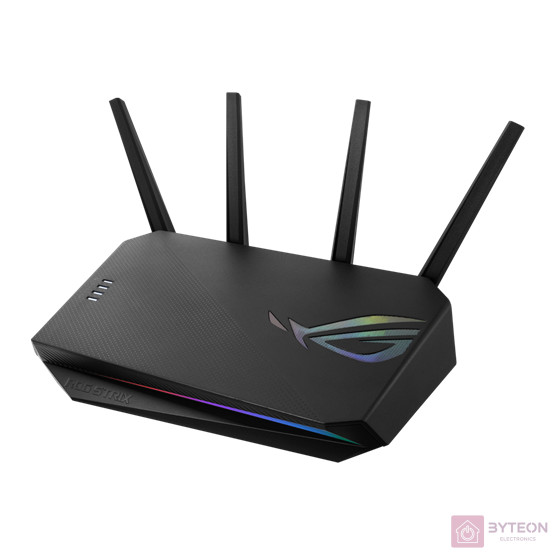

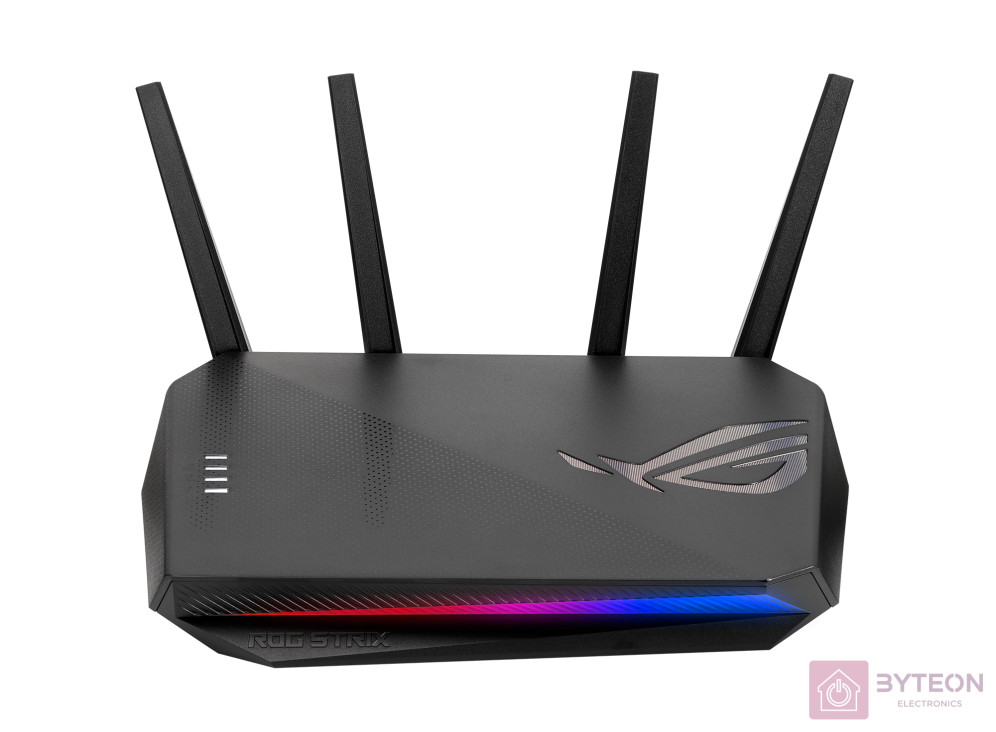

ASUS ROG Strix GS-AX5400, AX5400
ASUS ROG Strix GS-AX5400, AX5400
53 800 Ft

ASUS ROG Strix GS-AX5400, AX5400

ASUS ROG Strix GS-AX5400, AX5400
Gyártó
Asus
Gyártói cikkszám
GS-AX5400
Garancia
36 hónap
További adatok
Raktáron
53 800 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek
Garancia: 3 Év






Model Name




GS-AX5400







Network Standard




IEEE 802.11a


IEEE 802.11b


IEEE 802.11g


IEEE 802.11n


IEEE 802.11ac


IEEE 802.11ax


IPv4


IPv6







Product Segment




AX5400 ultimate AX performance : 4804 Mbps+ 574 Mbps







AX technology




Yes







Data Rate




2.4GHz N: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 500Mbps


5GHz AC: 4x4 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 2167Mbps


2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps


5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps







Antenna




External antenna x 4







Transmit/Receive




2.4 GHz 2 x 2


5 GHz 4 x 4







Processor




1.5 GHz tri-core processor







Memory




256 MB Flash

512 MB RAM







Boosts speed




OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth







Operating Frequency




2.4G Hz / 5 GHz







Ports




RJ45 for Gigabits BaseT for WAN x 1

RJ45 for Gigabits BaseT for LAN x 4

USB 3.2 Gen 1 x 1







Button




WPS Button

Reset Button

Power Switch







LED Indicator




Power x 1

2.4G x 1

5G x 1

WAN x 1







Power Supply




AC Input : 110V~240V(50~60Hz)

DC Output : 19 V with max. 1.75 A current







Package content




GS-AX5400 Router

RJ-45 cable

Power adapter

Warranty card

Quick start guide







Product Weight (g)




701.3 g







AiMesh




AiMesh : Yes


Primary AiMesh router : Yes


AiMesh node : Yes







Router APP




ASUS Router APP : Yes







Game




Game Boost/acceleration : Yes


ROG_First : Yes


OpenNAT (Game Profile) : Yes


Gaming port : Yes







Alexa




Support Alexa skill : Yes







AiProtection




AiProtection : AiProtection Pro


Router Security Assessment : Yes


Malicious site blocking : Yes


Two-Way IPS : Yes


Infected Device Prevention and Blocking : Yes







Parental Control




Parental Control : Yes


Parental Control Customized Internet schedule : Yes







Traffic Control




Adaptive QoS : Yes


Bandwidth Monitor : Yes


Bandwidth limiter : Yes


Maximum Bandwidth limiter rule : 32


Traditional QoS : Yes


Maximum Traditional QoS rule : 32


Traffic Monitor : Yes


Real-time traffic monitor : Yes


Wired Traffic Monitor : Yes


Wireless Traffic Monitor : Yes


Traffic Analyzer : Yes


Traffic analysis period : Daily, Weekly, Monthly


Website history : Yes







Wireless




IPv6 : Yes


Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support


UTF-8 SSID : Yes


Guest Network : Yes


Maximum Guest Network rule : 2.4GHz x3, 5GHz x3


WPS : Yes


Wi-Fi MAC address filter : Yes


Maximum MAC filters : 64


Wireless scheduler : Yes


Wi-Fi Radar : Yes


Airtime fairness : Yes


RADIUS Server : No


Universal beamforming : Yes







WAN




Explicit beamforming : Yes


Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP


Dual WAN : Yes


WAN Aggregation : Yes


3G/4G LTE dongle : Yes


Android tethering : Yes


Port forwarding : Yes


Maximum port forwarding rule : 64


Port triggering : Yes


Maximum port triggering rule : 32


DMZ : Yes


DDNS : Yes


NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay







LAN




DHCP Server : Yes


IGMP snooping : Yes


IPTV : Yes


LAN Link Aggregation : Yes


Manually assign IP address : Yes


Maximum manually assign IP address rule : 64







VPN




VPN Client L2PT : Yes


VPN Client OVPN : Yes


VPN Client PPTP : Yes


VPN Server IPSec : Yes


VPN Server OVPN : Yes


VPN Server PPTP : Yes


VPN Fusion : Yes







USB application




File System : HFS+, NTFS, vFAT, ext2, ext3, ext4


HDD hibernation : Yes


Safely Remove disk : Yes


AiCloud : Yes


Download master : Yes


AiDisk : Yes


Media Server : Yes


Time Machine : Yes


Samba Server : Yes


FTP Server : Yes


Shared Folder privileges : Yes







Administration




Operating mode : Wireless router mode

Access point mode

Media bridge mode

Repeater mode

AiMesh node mode


Operating system : ASUSWRT


Free OS upgrade : Yes


Firewall : Yes


Maximum Firewall keyword filter : 64


Maximum Firewall network service filter : 32


Maximum Firewall URL filter : 64


Wake on LAN (WOL) : Yes


SSH : Yes


Configuration backup and restore : Yes


Diagnosis tools : Yes


Feedback system : Yes


System log : Yes












  • ROG STRIX GS-AX5400










Product Comparison

Product added to comparison. Add up to 4 products or proceed to view compare products selected.









VIEW COMPARISON














  • Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.

  • Quoted network speeds and bandwidth based on current IEEE 802.11ac & 802.11ax specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be same standard for best results.

  • WPA/WPA2 enterprise is only available on single router, is not available under AiMesh mode.




  • Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.

  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.

  • Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.

  • PCB color and bundled software versions are subject to change without notice.

  • Brand and product names mentioned are trademarks of their respective companies.

  • Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations.

  • The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
