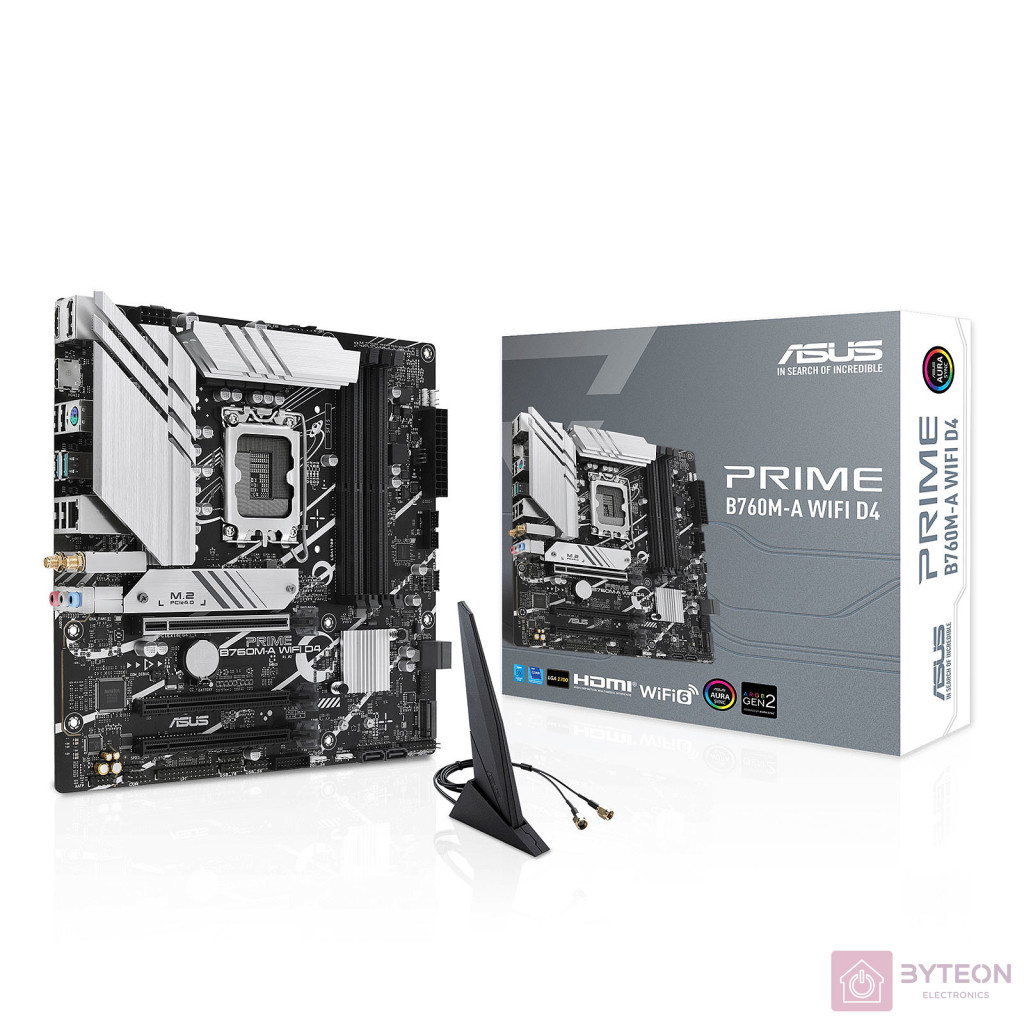

Asus PRIME B760M-A WIFI D4 Alaplap
Asus PRIME B760M-A WIFI D4 Alaplap
76 960 Ft

Asus PRIME B760M-A WIFI D4 Alaplap

Asus PRIME B760M-A WIFI D4 Alaplap
Gyártó
Asus
Gyártói cikkszám
90MB1CX0-M0EAY0
Garancia
36 hónap
További adatok
Raktáron
76 960 Ft
Külső raktár
1 db
Szállítás 1-3 munkanap
Részletek


CPU





Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

*Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.







Chipset





Intel® B760 Chipset







Memory





4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.







Graphics





1 x DisplayPort**

2 x HDMI® ports***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI® 2.1.







Expansion Slots





Intel® 13th & 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel® B760 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x16 slot (supports x1 mode)

Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.







Storage





Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.







Ethernet





1 x Realtek 2.5Gb Ethernet







Wireless & Bluetooth





Wi-Fi 6

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2

* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.







USB





Rear USB (Total 6 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 10 ports)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port







Audio





Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.







Back Panel I/O Ports





2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

2 x HDMI® ports

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port







Internal I/O Connectors





Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x LPT header

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function







Special Features





ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- ProCool

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers







Software Features





ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 2+

- Power Saving

AI Suite 3

- Digi+ VRM

- PC Cleaner

ASUS CPU-Z

MyAsus

Norton Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode







BIOS





128 Mb Flash ROM, UEFI AMI BIOS







Manageability





WOL by PME, PXE

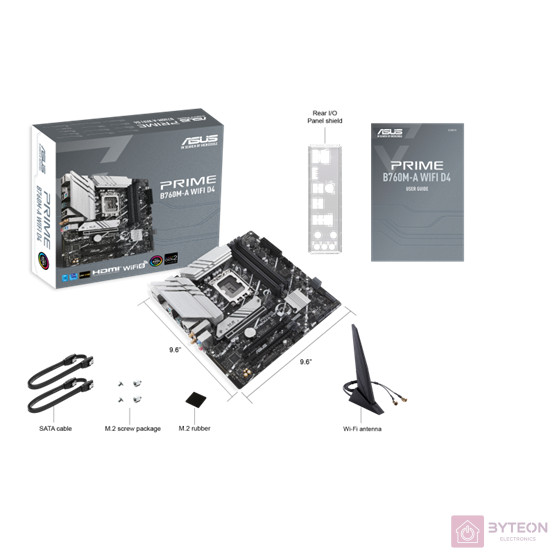

Accessories





Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x I/O Shield

1 x M.2 Rubber Package

1 x Screw package for M.2 SSD

Documentation

1 x User guide







Operating System





Windows® 11, Windows® 10 64-bit







Form Factor





mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )




Adatok
Garancia (jogi személy):
36
Tömeg:
1,94 kg/db
