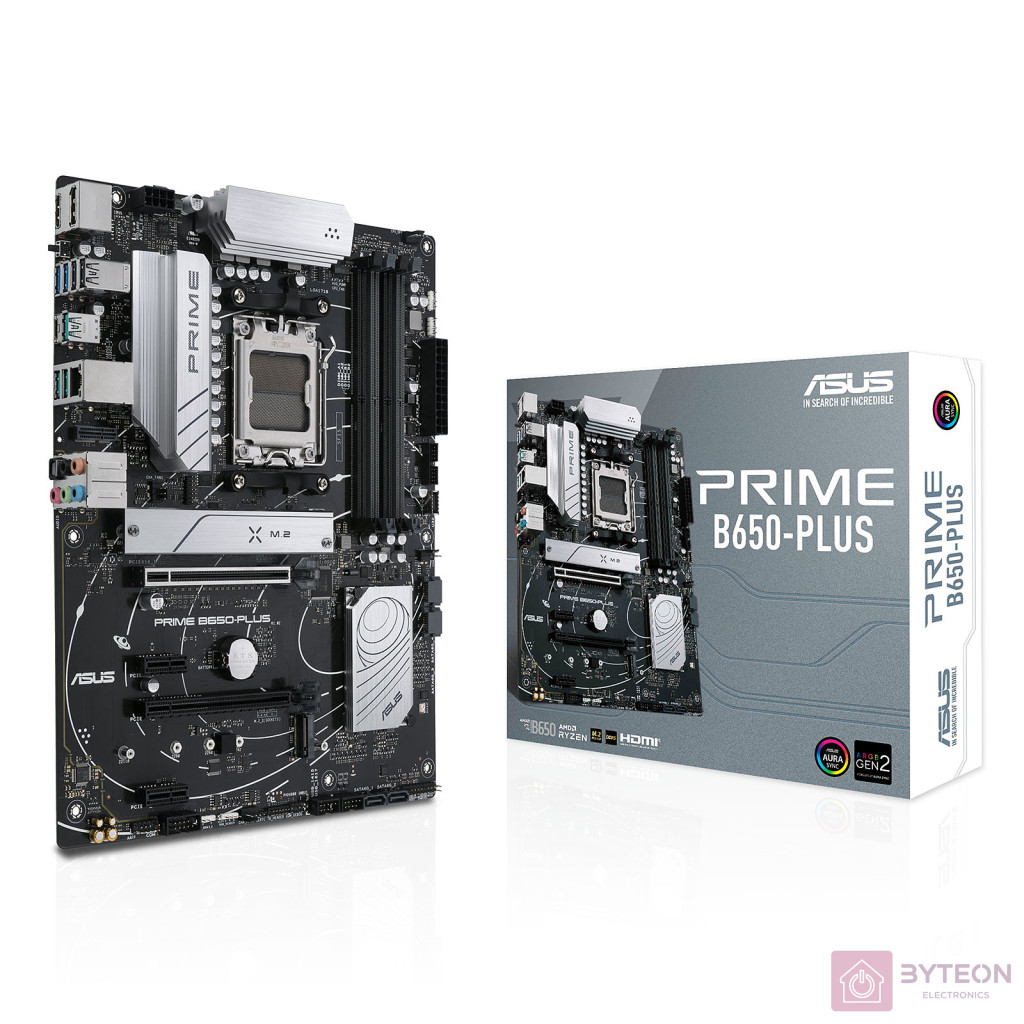

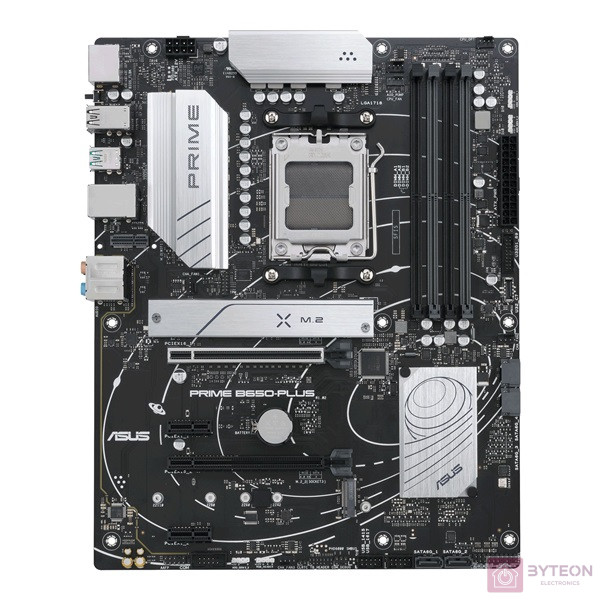

Asus Prime B650-Plus Alaplap
Asus Prime B650-Plus Alaplap
96 170 Ft

Asus Prime B650-Plus Alaplap

Asus Prime B650-Plus Alaplap
Gyártó
Asus
Gyártói cikkszám
PRIME B650-PLUS
Garancia
36 hónap
További adatok
Raktáron
96 170 Ft
Külső raktárkészlet:
5 db
Szállítás 1-3 munkanap
Részletek


Model





PRIME B650-PLUS







CPU





AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.







Chipset





AMD B650 Chipset







Memory





4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.







Graphics





1 x DisplayPort**

1 x HDMI® port***

* Graphics specifications may vary between CPU types.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI® 2.1.







Expansion Slots





AMD Ryzen™ 7000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD B650 Chipset

1 x PCIe 4.0 x16 slot (support x4 mode)

2 x PCIe 4.0 x1 slots

* Please check the PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.







Storage





Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset

4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.







Ethernet





1 x Realtek 2.5Gb Ethernet







Wireless & Bluetooth





Vertical M.2 slot only (Key E, PCIe)*

* Wi-Fi module is sold separately.







USB






Rear USB (Total 8 ports)

4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports









Audio





Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers







Back Panel I/O Ports






4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Vertical M.2 slot (Key E)

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button









Internal I/O Connectors






Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4®) header









Special Features






ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- Safeslot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- ProCool

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers









Software Features






ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 2+

- Power Saving

AI Suite 3

- TurboV EVO

- DIGI+ VRM

- PC Cleaner

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode









BIOS





256 Mb Flash ROM, UEFI AMI BIOS







Manageability





WOL by PME, PXE







Accessories






Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package

1 x Screw package for M.2 SSD

Documentation

1 x User guide









Operating System





Windows® 11, Windows® 10 64-bit







Form Factor





ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )




Adatok
Garancia (jogi személy):
36
Tömeg:
1,6 kg/db
