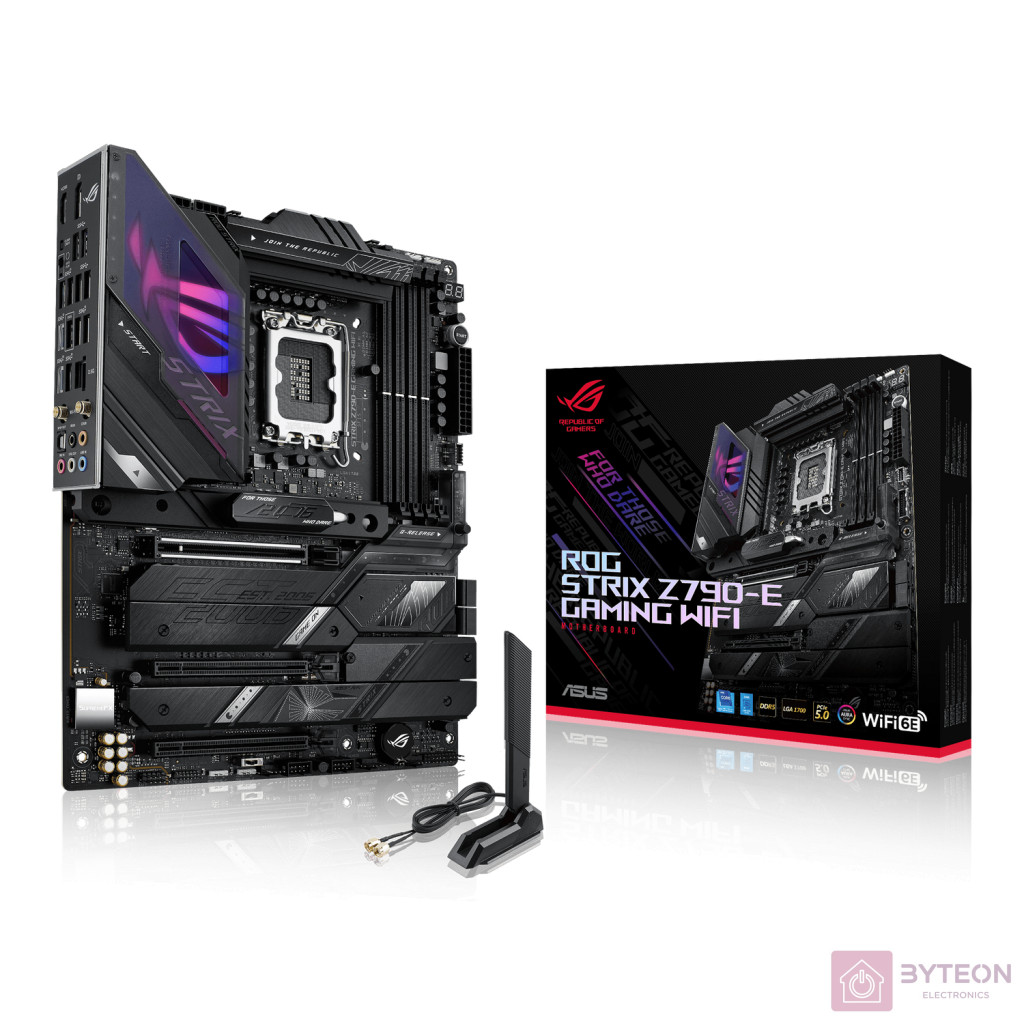

Asus ROG Strix Z790-E Gaming WiFi Alaplap
Asus ROG Strix Z790-E Gaming WiFi Alaplap
182 970 Ft

Asus ROG Strix Z790-E Gaming WiFi Alaplap

Asus ROG Strix Z790-E Gaming WiFi Alaplap
Gyártó
Asus
Gyártói cikkszám
ROG STRIX Z790-E GAMING WIFI
Garancia
12 hónap
További adatok
Raktáron
182 970 Ft
Külső raktár
4 db
Szállítás 4-5 munkanap
Részletek


CPU




Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.







Chipset




Intel® Z790 Chipset







Memory




4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

**** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.







Graphics




1 x DisplayPort**

1 x HDMI® port***

* Graphics specifications may vary between CPU types. Please refer to ww.intel.com for any updates.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

**** VGA resolution support depends on processors' or graphic cards' resolution.







Expansion Slots




Intel® 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot



Intel® Z790 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

1 x PCIe 3.0 x1 slot



* Please check the PCIe bifurcation table

on the support site (https://www.asus.com/support/FAQ/1037507/).

** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.

*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.







Storage




Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset**

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.







Ethernet




1 x Intel® 2.5Gb Ethernet

ASUS LANGuard







Wireless & Bluetooth




Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.3

* WiFi 6E 6GHz regulatory may vary between countries.







USB




Rear USB (Total 12 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

7 x USB 3.2 Gen 2 ports  (6 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports  (4 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)

2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports







Audio




ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover







Back Panel I/O Ports




1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C® )

4 x USB 3.2 Gen 1 ports (4 x Type-A)

1 x HDMI™ port

1 x DisplayPort

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks*

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.







Internal I/O Connectors




Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers



Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors



Storage related

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports



USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)

2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports



Miscellaneous

3 x Addressable Gen 2 headers

1 x Alternative PCIe Mode Switch

1 x AURA RGB header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Start button

1 x Thermal Sensor header

1 x Thunderbolt™ (USB4®) header







Special Features




Extreme Engine Digi+

- 5K Black Metallic Capacitors



ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot



ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design



ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- CPU Socket lever protector

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM



AURA Sync

- AURA RGB header

- Addressable Gen 2 RGB headers



Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support

- Support: up to 30W charging

- Output: 5/9V max. 3A, 12V max 2.5A

- Compatible with PD3.0







Software Features




ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound



ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- Aura Creator- Aura Sync

- Xpert 4 (with AI Cooling II)

- Power Saving

- Two-Way AI Noise Cancellation

AI Suite 3

- Easy Optimization with AI Overclocking

- TPU

- DIGI+ VRM

- Turbo app

- PC Cleaner

MyAsus

Norton 360 for Gamers

WinRAR



UEFI BIOS

AI Overclocking Guide

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

MemTest86







BIOS




256 Mb Flash ROM, UEFI AMI BIOS







Manageability




WOL by PME, PXE







Accessories




Cables

2 x SATA 6Gb/s cables



Additional Cooling Kit

1 x DDR5 Fan holder

1 x VRM Fan holder

1 x Thermal pad for M.2



Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties package

1 x M.2 backplate Q-Latch package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

2 x M.2 Rubber Packages

1 x M.2 backplate Rubber



PackageDocumentation

1 x User guide







Operating System




Windows® 11, Windows® 10 64-bit







Form Factor




ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )




Adatok
Garancia (jogi személy):
24
Tömeg:
2,7 kg/db
