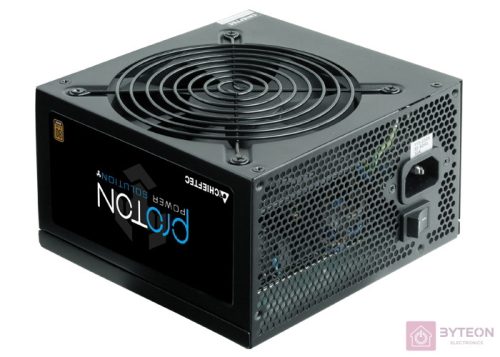

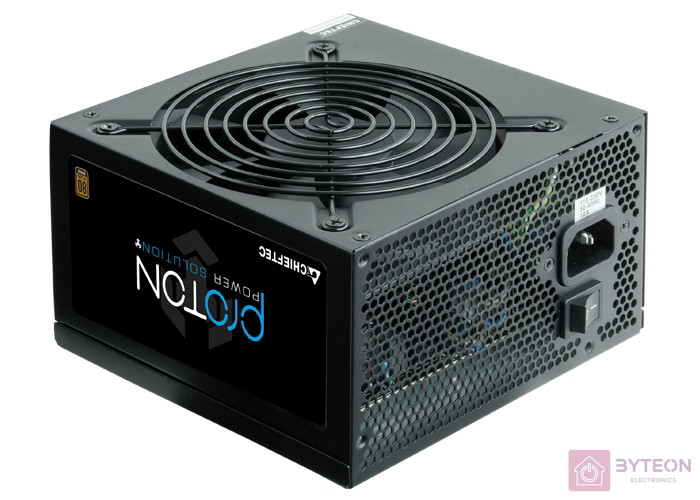

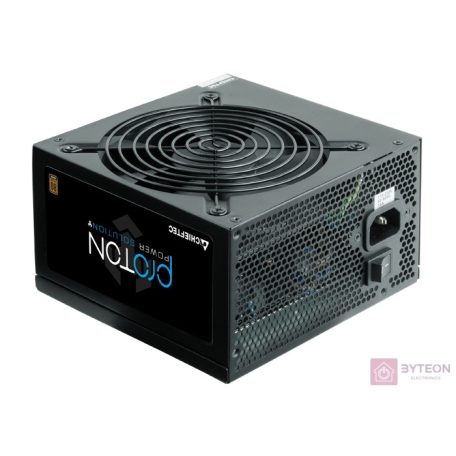

Chieftec Proton 500W [80+ Bronze]

Gyártó
Chieftec
Gyártói cikkszám
BDF-500S
Garancia
24 hónap
Nincs raktáron
22 910 Ft
Részletek



































































Model PROTON 500W
Article no. BDF-500S
EAN code 4710713231269
Weight (without/with package) 1.55kg / 1.90kg
AC Input 115-230V / 10A
Frequency 50 - 60Hz
+5V 18A
+3,3V 18A
+5V & +3,3V combined 90W
+12V1 41.68A
+12V2 -
+12V1, +12V2 combined 500W
P.F. >0,9
-12V 0,3A / 3,6W
+5VSB 2,5A / 12,5W
Maximum Power 500W




























Connectors
20+4 PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 2
SATA 6
MOLEX 3




























Cable length (mm)
20+4 PIN ATX 450
8 PIN EPS (4+4) 550
8 PIN PCIe (6+2) 450/150
SATA 2x 400/150/150
MOLEX 400/150/150




































Features
ATX12V Version ATX 12V 2.3
Efficiency 80+Bronze
Dimension (DxWxH) 140 mm x 150 mm x 86 mm
PFC Active PFC
Fan 120mm silent fan
Security AFC (Automatic Fan speed Control)

OCP (Over Current Protection)

OPP (Over Power Protection)

OTP (Over Temperature Protection)

OVP (Over Voltage Protection)

SCP (Short Circuit Protection)

SIP (Surge & Inrush Protection)

UVP (Under Voltage Protection)
Warranty 24 Months

Adatok
Garancia (jogi személy):
24
Tömeg:
2,2 kg/db
