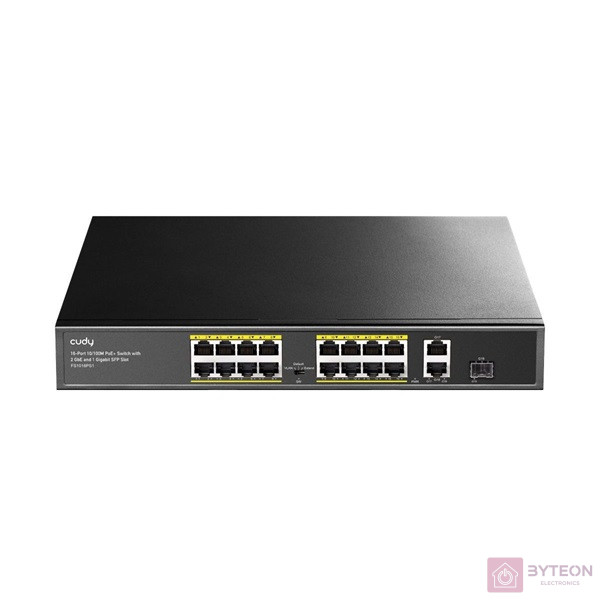

Model |
FS1018PS1 |
Power |
Power Supply |
Built-in power supply |
Voltage Range |
AC100~240V |
Consumption |
190W for 16 PoE |
Ethernet |
Speed |
1~16 Port: 10/100/Mbps |
G1(combo):10/100/1000Mbps & 1.25bps |
G2:10/100/1000Mbps |
Transmission Distance |
100Meter(328ft)for RJ-45 |
The distance is determined by the optical module |
The optical module is optional |
Network
Switch |
Ethenet Standard |
IEEE 802.3 802.3u 802.3ab 802.3af/at |
Switching Capacity |
7.2G |
Transfer Rate |
14880 pps for 10Mbps |
148800 pps for 100Mbps |
1488000 pps for 1000Mbps |
MAC Adsress |
4K MAC sddress table |
Link/ACT |
On(Green) |
The port is connecting |
Blinks |
The port is receiving or transmitting data. |
Off |
The port is notl inked successfully with the device |
POE |
On(Oranfe) |
PD is connected |
Off |
No PD is connected or power forwarding fails |
PoE Pin Assignmnet |
V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6) |
Environment |
Working Temperature |
0~40°C |
Storage Temperature |
-40~70°C |
Humidity Non Condesing |
0~85% |
Mechanical |
Dimension L*W*H |
280*180*44mm |
Color |
Gray |
