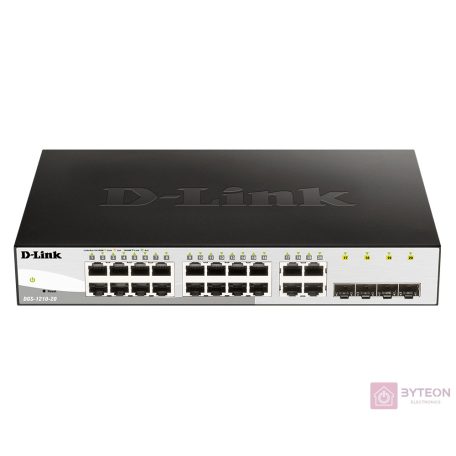

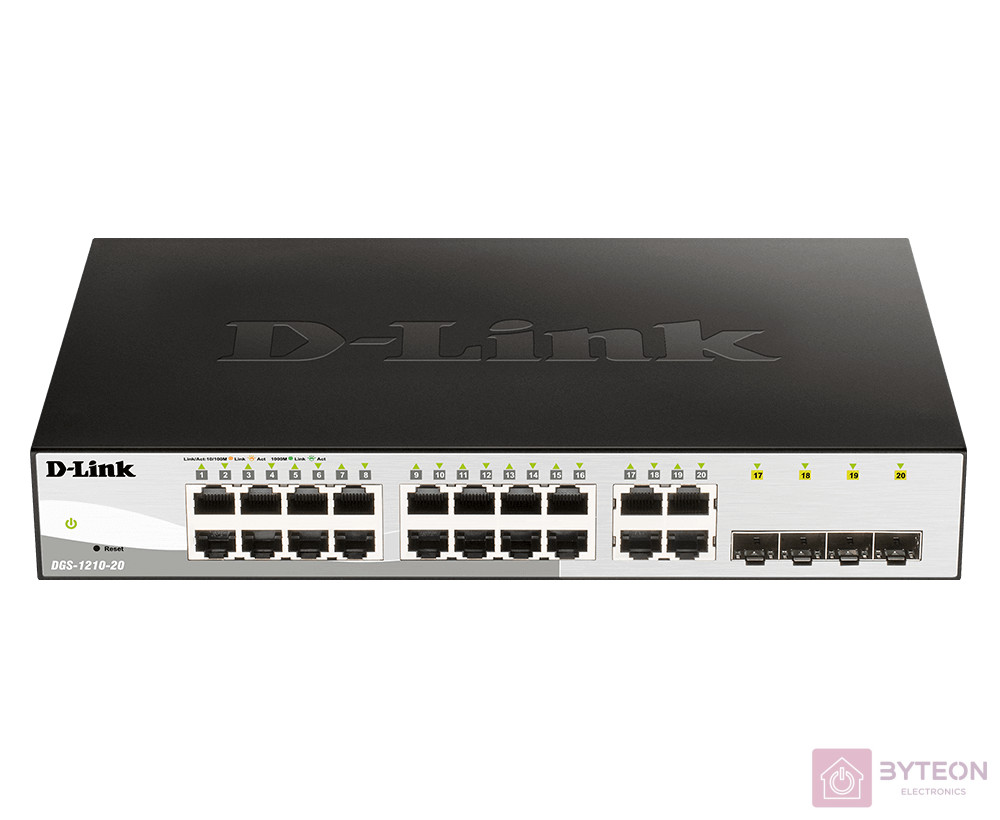

D-LINK SWITCH SMART 16-PORT GIGABIT WITH 4XSFP/RJ45 INTERF

D-LINK SWITCH SMART 16-PORT GIGABIT WITH 4XSFP/RJ45 INTERF
Gyártó
D-Link
Gyártói cikkszám
DGS-1210-20/E
Garancia
60 hónap
További adatok
Nincs raktáron
76 190 Ft
Részletek

Technical Specifications:

























































































































































































































D-Link DGS-1210 Specificatins
  DGS-1210-10 DGS-1210-20 DGS-1210-28 DGS-1210-52
General
Number of Ports

  • 8 10/100/1000 Mbps

  • 2 SFP

  • 16 10/100/1000 Mbps

  • 4 SFP

  • 24 10/100/1000 Mbps

  • 4 SFP

  • 48 10/100/1000 Mbps

  • 4 SFP
Port Standard & Functions

  • IEEE 802.3 10BASE-T Ethernet

  • IEEE 802.3u 100BASE-TX (Fast Ethernet)

  • IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)

  • IEEE 802.3x Flow Control for Full-Duplex Mode

  • Auto-negotiation
Network Cables

  • UTP Cat. 5, Cat. 5e (100 m max.)

  • EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex

  • Full/half duplex for 10/100 Mbps speeds

  • Full duplex for Gigabit speed
Media Interface Exchange Auto or configurable MDI/MDIX
Performance
Switching Capacity 20 Gbps 40 Gbps 56 Gbps 104 Gbps
Transmission Method Store-and-forward
MAC Address Table 16,000 entries per device
MAC Address Update

  • Up to 256 static MAC entries

  • Enable/disable auto-learning of MAC addresses
Maximum 64 bytes packet forwarding rate 14.88 Mpps 29.8 Mpps 41.7 Mpps 77.4 Mpps
Packet Buffer Memory 1.5 MB 1.5 MB 1.5 MB 3.0 MB
Physical & Environmental
AC Input 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption 13.59 W 16.09 W 22.45 W 38.27 W
Standy Power Consumption 9.3 W/110 V, 9.4 W/240 V 8.59 W/110 V, 8.80 W/240 V 17.65 W/110 V, 17.84 W/240 V 29.44 W/110 V, 29.49 W/240 V
Fan Quantity 0 0 0 Two smart fans
Acoustics 0 dB(A) 0 dB(A) 0 dB(A) Low speed: 39.8 dB(A) High speed: 49.2 dB(A)
Heat Dissipation 46.37 BTU/hr 54.91 BTU/hr 76.55 BTU/hr 130.58 BTU/hr
Operating Temperature 23 to 122 °F (-5 to 50 °C)
Storage Temperature -4 to 158 °F (-20 to 70°C)
Operating Humidity 0% to 95% non-condensing
Storage Humidity 0% to 95% non-condensing
Dimensions (W x D x H) 11.02 x 4.96 x 1.73 inches (280 x 126 x 44 mm) •

19” standard rack mounting width, 1U height		 11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)

19” standard rack mounting width, 1U height		 17.32 x 5.51 x 1.73 inches (440 x 140 x 44 mm)

19” standard rack mounting width, 1U height		 17.32 x 8.27 x 1.73 inches (440 x 210 x 44 mm)

19” standard rack mounting width, 1U height
Weight 3.39 lbs (1.54 kg) 2.82 lbs (1.28 kg) 3.68 lbs (1.67 kg) 5.69 lbs (2.58 kg)
Diagnostic LEDs

  • Power (per device)

  • Link/Activity/Speed (per 10/100/1000 Mbps port)

  • Link/Activity/Speed (per SFP port)

  • Power (per device)

  • Link/Activity/Speed (per 10/100/1000 Mbps port)

  • Link/Activity/Speed (per SFP port)

  • Fan (per device)
MTBF 360,844 hours 317,412 hours 540,000 hours 481,624 hours
Certifications

  • FCC Class A

  • CE Class A

  • ICES-003

  • VCCI Class A

  • C-Tick

  • BSMI
Safety

  • cUL

  • CE LVD
Software Features
L2 Features

  • MAC Address Table

    • 16,000 entries



  • Flow Control

    • 802.3x Flow Control

    • HOL Blocking Prevention



  • IGMP Snooping

    • IGMP v1/v2 Snooping

    • Supports 256 IGMP groups

    • Supports at least 64 static multicast addresses

    • IGMP per VLAN

    • Supports IGMP Snooping Querier



  • Loopback Detection

  • Spanning Tree Protocol

    • 802.1D STP

    • 802.1w RSTP



  • 802.3ad Link Aggregetion

    • DGS-1210 28/28P: Maximum of 14 groups/8 ports per group

    • DGS-1210 52/52MP: Maximum of 26 groups/8 ports per group

    • DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group



  • LLDP

  • LLDP-MED

  • Jumbo Frame

    • Up to 9,216 bytes



  • Spanning Tree Protocol

    • 802.1D STP

    • 802.1w RSTP



  • Flow Control

    • 802.3x Flow Control

    • HOL Blocking Prevention



  • Port Mirroring

    • One-to-One

    • Many-to-One

    • Supports Mirroring for Tx/Rx/Both



  • Multicast Filtering

    • Forwards all unregistered groups

    • Filters all unregistered groups



  • Configurable MDI/MDIX

    • MLD snooping v1/v2 (256 groups)
VLAN

  • 802.1Q

  • VLAN Group

    • Max 256 static VLAN groups

    • Max 4094 VIDs



  • Management VLAN

  • Asymmetric VLAN

  • Auto Voice VLAN

    • Max. 10 user defined OUI

    • Max. 8 default OUI



  • Auto Surveillance VLAN
QoS (Quality of Service)

  • 802.1p Quality of Service

  • 8 Queues per port

  • Queue Handling

    • Strict

    • Weighted Round Robin (WRR)



  • Bandwidth Control

    • Port-based (Ingress/Egress, min. granularity 64 Kb/s)



  • QoS based on:

    • 802.1p Priority Queues

    • DSCP

    • ToS

    • IPv6 Traffic Class

    • TCP/UDP port
L3 Features

  • IP Interface

    • Supports 1 interface



  • IPv6 Neighbor Discovery (ND)
Access Control List

  • Max. 50 access list

  • Max. 768 rules shared by IPv4, MAC and IPv6

  • Each rule can only be associated with a single port

  • ACL based on

    • 802.1p priority

    • VLAN

    • MAC address

    • Ether type

    • IP address

    • DSCP

    • Protocol type

    • TCP/UDP port number

    • IPv6 Traffic Class
Security

  • Broadcast/Multicast/Unicast Storm Control

  • D-Link Safeguard Engine

  • DHCP Server Screening

  • IP-MAC-Port Binding (Smart Binding)

    • Supports 512 address binding entries

    • ARP Inspection

    • ARP + IP Inspection

    • Supports DHCP Snooping



  • 802.1X Port-based Access Control

  • ARP Spoofing Prevention

    • Max. 64 entries



  • Traffic Segmentation

  • SSH v2

  • SSL

    • Supports v1/v2/v3



  • Port Security

    • Supports up to 64 MAC addresses per port



  • Duplicate address detection
AAA

  • 802.1X Authentication

    • Supports local/RADIUS database

    • Supports port-based access control

    • Supports EAP, OTP, TLS, TTLS, PEAP

    • IPv6 RADIUS Server

    • Support MD5 authentication
OAM

  • Cable Diagnostics

  • Factory Reset
MIB/RFC Standards

  • RFC 783 TFTP

  • RFC 951 BootP/DHCP Client

  • RFC 1157 SNMP v1, v2, v3

  • RFC 1213 MIB II

  • RFC 1215 MIB Traps Convention

  • RFC 1350 TFTP

  • RFC 1493 Bridge MIB

  • RFC 1769 SNTP

  • RFC 1542 BootP/DHCP Client

  • RFC 1901 SNMP v1, v2, v3

  • RFC 1907 SNMP v2 MIB

  • RFC 1908 SNMP v1, v2, v3

  • RFC 2131 BootP/DHCP Client

  • RFC 2138 RADIUS Authentication

  • RFC 2139 RADIUS Authentication

  • RFC 2233 Interface Group MIB

  • RFC-2246 SSL

  • RFC 2475

  • RFC 2570 SNMP v1, v2, v3

  • RFC 2575 SNMP v1, v2, v3

  • RFC 2598 CoS

  • RFC 2618 RADIUS Authentication

  • RFC 2819 RMON v1

  • RFC 2865 RADIUS Authentication

  • RFC 3164 System Log

  • RFC 3195 System Log

  • RFC 3411-17 SNMP

  • D-Link Private MIB

  • LLDP MIB

  • Zone Defense MIB

  • 2233 Interface Group MIB
Management

  • Web-based GUI

  • D-Link Network Assistant Utility

  • Compact CLI

  • Telnet Server

  • TFTP Client

  • Configurable MDI/MDIX

  • SNMP

    • Supports v1/v2c/v3



  • SNMP Trap

  • Backup/Upgrade firmware

  • Smart Wizard

  • Upload/Download Configuration file

  • System Log

    • Max. 500 log entries



  • BootP/DHCP Client

  • SNTP

  • ICMP v6

  • IPv4/v6 Dual Stack

  • DHCP Auto Configuration

  • Time Setting

    • SNTP



  • RMONv1

  • Trusted Host
D-Link Green 3.0 Technology

  • Power Saving by:

    • Link Status

    • Time-based PoE: PoE ports can be turned on/off by port or system through schedule

    • LED Shutoff

    • System Hibernation

    • Port Shutoff

Adatok
Garancia (jogi személy):
24
Tömeg:
2,97 kg/db
