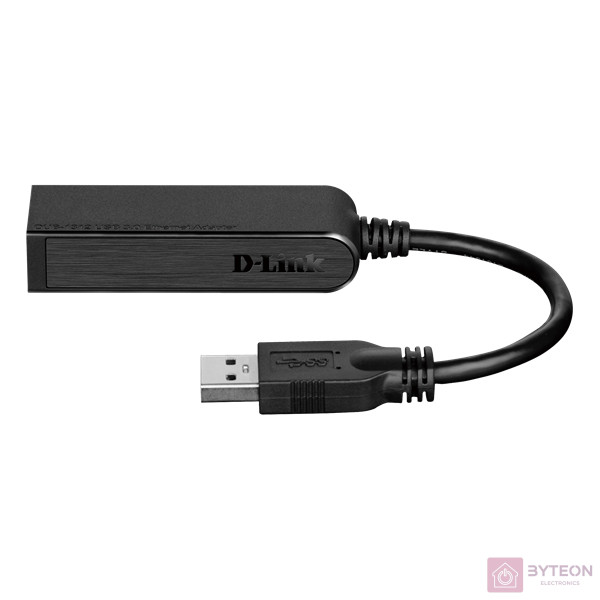

D-Link DUB-1312 USB 3.0 to Gigabit Ethernet Adapter

Features

Gigabit Connectivity

• Achieve transfer speeds of up to 1 Gbps


• Status LEDs for connection status and data transfer speed

USB 3.0 with Simple Installation

• Simply plug in, install the included software, and you’re ready to go¹


• No additional hardware installation required, leaving expansion slots free for other uses


• Small and compact design makes it easy to take with you wherever you go


• Fully backwards compatible with previous USB standards

Dynamic Power Management

• Reduces power consumption during times of light traffic, when idle, or when the Ethernet cable is unplugged


• Supports the built-in power-saving features of the USB 3.0 standard


• Especially useful for battery-powered notebook and netbook computers

Technical Specifications

Connectivity

Device Interfaces

• RJ-45 Ethernet Port (10/100/1000 Mbps)


• USB Type A Connector

LEDs

• Speed (orange)


• Link/ACT (green)

Standards

• USB Specification Version 3.0


• USB Specification Version 2.0


• USB Specification Version 1.1


• USB Specification Version 1.0


• OHCI (Open Host Controller Interface)         EHCI (Enhanced Host Controller Interface)


• IEEE 802.3 Ethernet


• IEEE 802.3u 100BASE-T, TX, and T4 compatible


• Supports suspended mode and remote wakeup


• Supports full and half duplex in gigabit Ethernet mode

General

Minimum System Requirements

• Operating system: Microsoft Windows 8/7/Vista/XP SP3


• Mac OS 10.6 to 10.8


• Linux kernel 2.6.14x or above

Power Management

• Advanced Power Management reduces power usage during idle or light traffic periods

Physical

Dimensions

• 74.4 x 21 x 16 mm (2.93 x 0.83 x .063 inches)

Weight

• 46.4 grams (1.64 oz)

Power

• Input: Bus-powered 500 mA, 5 V DC


• Consumption: 150 mA, 3.3 V DC

Temperature

• Operating: 0 to 45 °C (32 to 113 °F)


• Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing


• Storage: 5% to 90% non-condensing

Certifications

• CE


• FCC

^{1. Windows operating systems support plug-and-play functionality. Other operating systems may require software installation before the product can be used. Windows XP requires users to confirm before automatic installation can begin.}
