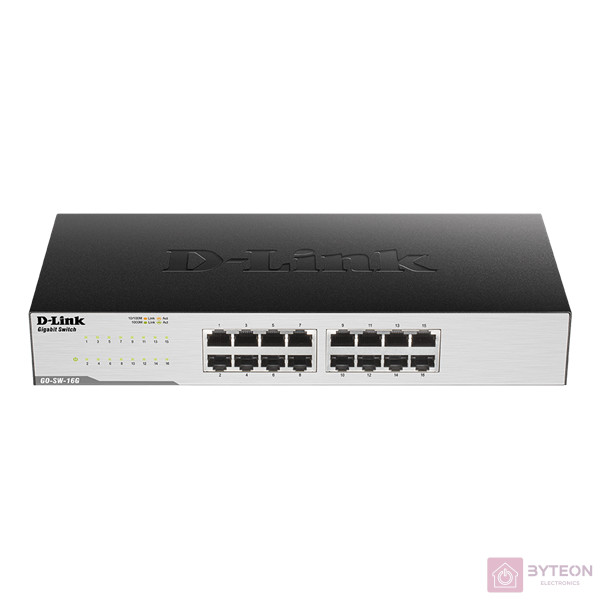

GO-SW-16GE |
GO-SW-24GE |
|---|
Number of Ports |
Sixteen 10/100/1000 Gigabit Ports |
Twenty-four 10/100/1000 Gigabit Ports |
Switching Fabric |
32Gbps |
48Gbps |
Standards |
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
|
Data Transfer Rat |
- Ethernet:
- 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet:
- 100 Mbps (half duplex), 200 Mbps (full duplex
- Gigabit Ethernet:
|
Network Cables |
- 10BASE-T:
- UTP CAT 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
- 100BASE-TX:
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
|
Media Interface Exchange |
Auto MDI/MDIX |
D-Link Green Features |
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Link status detection power saving
- RoHS Compliance
|
Switching Method |
Store-and-forward |
MAC Address Table |
8K MAC addresses |
RAM Buffer |
4 Mbits |
512 KBytes |
Jumbo Frames |
9216 Bytes |
9600 Bytes |
QoS |
4 Queues, strict mode |
LEDs |
- Power LED
- 16 Link/Activity/Speed LEDs (one per port)
|
- Power LED
- 24 Link/Activity/Speed LEDs (one per port)
|
DC Input |
100 to 240V AC input |
Power Consumption |
- Standby: 4.78 watts
- Maximum: 10.24 watts
|
- Standby: 6.5 watts
- Maximum: 13.5 watts
|
Heat Dissipation |
- Power On (Standby) AC input: 16.3 BTU/h
- Maximum DC input: 34.94 BTU/h
|
- Power On (Standby) AC input: 22.165 BTU/h
- Maximum DC input: 44.035 BTU/h
|
MTBF |
795,539hours |
633,536 hours |
Operating Temperature |
23º to 104º F (0º to 40º C) |
Storage Temperature |
14º to 158º F (-10º to 70º C) |
Humidity |
5% to 90% RH non-condensing |
Dimensions |
11.02 (W) x 4.92 (D) x 1.73 (H) inches
(280 x 125 x 44 mm) |
11.02 (W) x 7.09 (D) x 1.73 (H) inches
(280 x 180 x 44 mm) |
Weight |
2.29 lbs. (1.04 kg) |
2.95 lbs. (1.34 kg) |
Certifications |
- FCC Class A
- ICES-003 Class A
- CE Class A
- C-Tick Class A
- cUL
- CB
|
