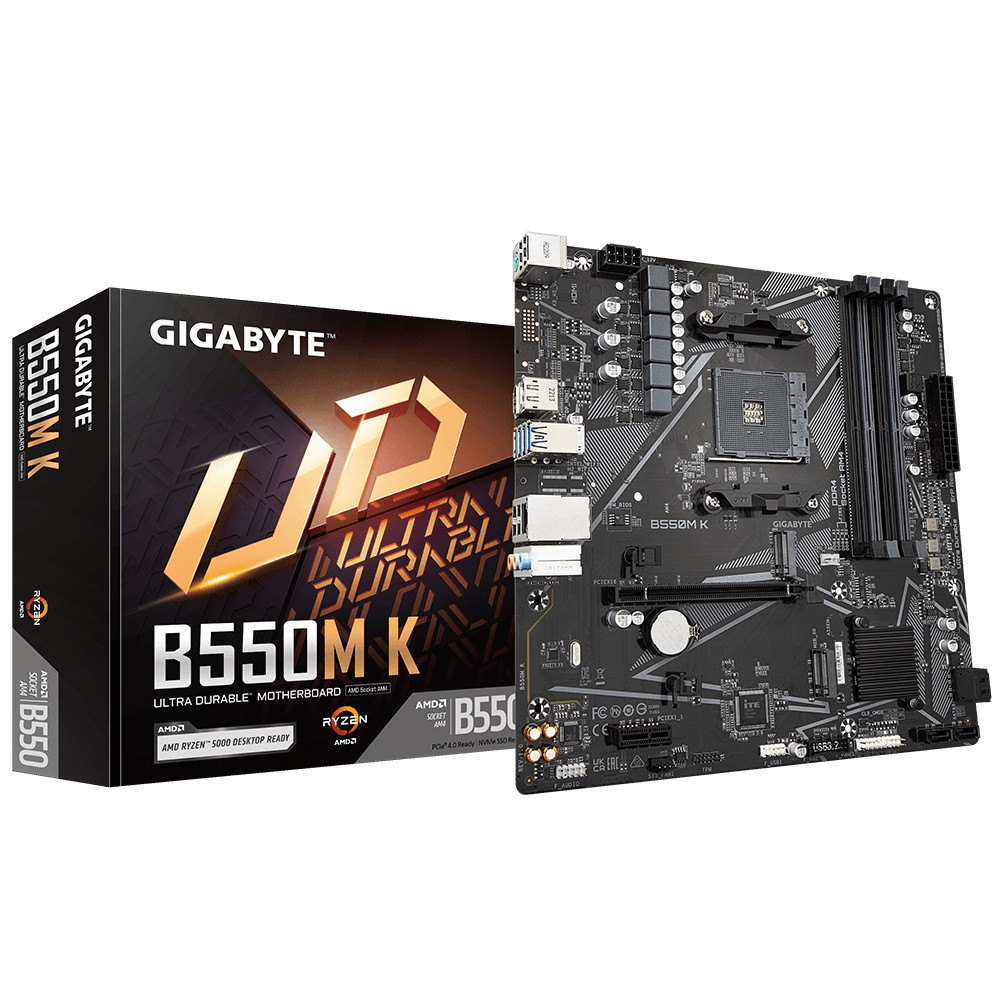

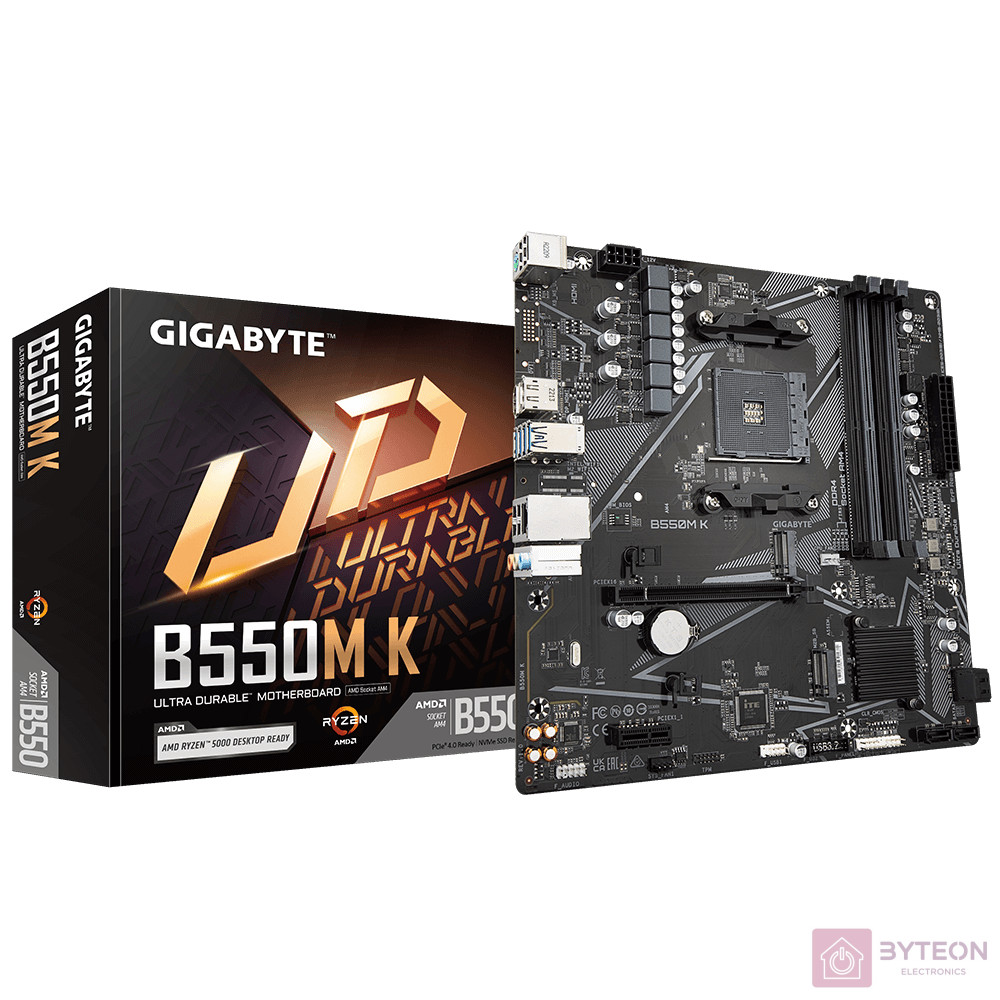

GIGABYTE Alaplap AM4 B550M K AMD B550, mATX
GIGABYTE Alaplap AM4 B550M K AMD B550, mATX
38 940 Ft

GIGABYTE Alaplap AM4 B550M K AMD B550, mATX

GIGABYTE Alaplap AM4 B550M K AMD B550, mATX
Gyártó
Gigabyte
Gyártói cikkszám
B550M K
Garancia
36 hónap
További adatok
Raktáron
38 940 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek


  • CPU




    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors


    (Please refer "CPU Support List" for more information.)


  • Chipset




    1. AMD B550




  • Memory




    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    3. Dual channel memory architecture

    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

      * ECC memory (ECC mode) support varies by CPU

    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    6. Support for Extreme Memory Profile (XMP) memory modules


    (Please refer "Memory Support List" for more information.)


  • Onboard Graphics


    Integrated Graphics Processor:


    1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.


    Maximum shared memory of 16 GB


  • Audio




    1. Realtek® Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.




  • LAN




    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)




  • Expansion Slots


    1 x PCI Express x16 slot, integrated in the CPU:


    1. AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode

    2. AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode


    1 x PCI Express x1 slot, integrated in the Chipset:


    1. Supporting PCIe 3.0 x1 mode




  • Storage Interface


    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:


    1. AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

    2. AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs


    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:


    1. Supporting PCIe 3.0 x2 SSDs


    4 x SATA 6Gb/s connectors, integrated in the Chipset:


    1. Support for RAID 0, RAID 1, and RAID 10




  • USB


    CPU:


    1. 4 x USB 3.2 Gen 1 ports on the back panel


    Chipset:


    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header

    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)




  • Internal I/O Connectors




    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 1 x system fan header

    5. 2 x M.2 Socket 3 connectors

    6. 4 x SATA 6Gb/s connectors

    7. 1 x front panel header

    8. 1 x front panel audio header

    9. 1 x USB 3.2 Gen 1 header

    10. 1 x USB 2.0/1.1 header

    11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

    12. 1 x Clear CMOS jumper




  • Back Panel Connectors




    1. 1 x PS/2 keyboard/mouse port

    2. 1 x DisplayPort

    3. 1 x HDMI port

    4. 4 x USB 3.2 Gen 1 ports

    5. 4 x USB 2.0/1.1 ports

    6. 1 x RJ-45 port

    7. 3 x audio jacks




  • I/O Controller




    1. iTE® I/O Controller Chip




  • H/W Monitoring




    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Fan fail warning

    5. Fan speed control

      * Whether the fan speed control function is supported will depend on the cooler you install.




  • BIOS




    1. 1 x 128 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




  • Unique Features




    1. Support for APP Center

      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

      @BIOS

      EasyTune

      Smart Backup

      System Information Viewer

    2. Support for Q-Flash

    3. Support for Xpress Install




  • Bundled Software




    1. Norton® Internet Security (OEM version)

    2. LAN bandwidth management software




  • Operating System




    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit




  • Form Factor




    1. Micro ATX Form Factor; 24.4cm x 24.4cm




  • Remark




    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.




Adatok
Garancia (jogi személy):
24
Tömeg:
880 g/db
