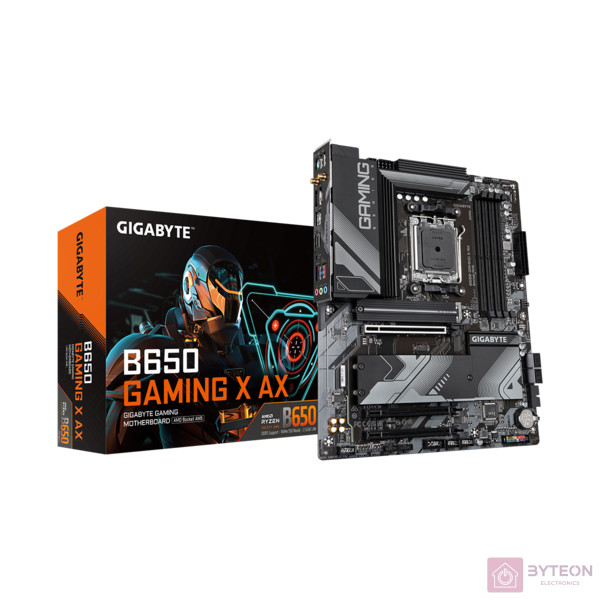

GigaByte B650 GAMING X AX alaplap

79 580 Ft

GigaByte B650 GAMING X AX alaplap

GigaByte B650 GAMING X AX alaplap

Gyártó

Gigabyte

Gyártói cikkszám

B650 GAMING X AX

Garancia

36 hónap

További adatok

Raktáron

79 580 Ft

Külső raktár

2 db

Szállítás 1-3 munkanap

Részletek

CPU
1. AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
(Please refer "CPU Support List" for more information.)

Chipset
1. AMD B650

Memory
1. Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics
Integrated Graphics Processor:
1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

  * Support for DisplayPort 1.4 version and HDR.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.

  ** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)

Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel^® Wi-Fi 6E AX210 (For PCB rev. 1.1)
1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage Interface
CPU:
1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3. 1 x USB 3.2 Gen 1 port on the back panel
CPU + USB 2.0 Hub:
1. 3 x USB 2.0/1.1 ports on the back panel
Chipset:
1. 1 x USB Type-C^® port with USB 3.2 Gen 2x2 support, available through the internal USB header
2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
3. 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers
7. 1 x system fan/water cooling pump header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 3 x M.2 Socket 3 connectors
12. 4 x SATA 6Gb/s connectors
13. 1 x front panel header
14. 1 x front panel audio header
15. 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support
16. 1 x USB 3.2 Gen 1 header
17. 2 x USB 2.0/1.1 headers
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x serial port header
20. 1 x reset button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

Back Panel Connectors
1. 2 x SMA antenna connectors (2T2R)
2. 1 x Q-Flash Plus button
3. 1 x DisplayPort
4. 1 x HDMI port
5. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
6. 1 x USB 3.2 Gen 2 Type-A port (red)
7. 3 x USB 3.2 Gen 1 ports
8. 3 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 3 x audio jacks

I/O Controller
1. iTE^® I/O Controller Chip

H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control

  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1. Support for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus

Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software

Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm

Adatok

Garancia (jogi személy):

36

Tömeg:

1,89 kg/db
