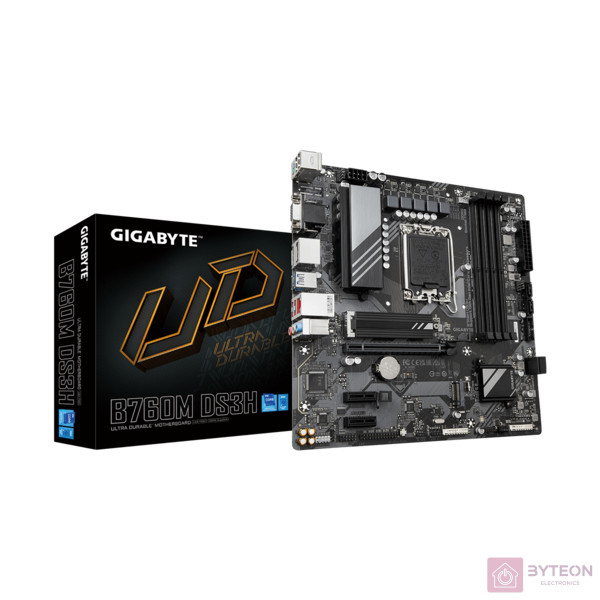

GigaByte B760M DS3H alaplap (DDR5)

46 130 Ft

GigaByte B760M DS3H alaplap (DDR5)

GigaByte B760M DS3H alaplap (DDR5)

Raktáron

46 130 Ft

Gyártó:

Gigabyte

Gyártói cikkszám:

B760M DS3H

Garancia:

36 hónap

Külső raktár

1 db

Szállítás 1-3 munkanap

CPU
1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset
1. Intel^® B760 Express Chipset

Memory
1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.0 version and HDCP 2.3.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

  * Support for DisplayPort 1.2 version and HDCP 2.3
4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

  * Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)

Support for up to quad-display at the same time

Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Storage Interface

CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:
1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3. 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
1. 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header
6. 1 x RGB LED strip header
7. 2 x M.2 Socket 3 connectors
8. 4 x SATA 6Gb/s connectors
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x USB 3.2 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x S/PDIF Out header
17. 1 x Q-Flash Plus button
18. 1 x reset jumper
19. 1 x Clear CMOS jumper

Back Panel Connectors
1. 2 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x DisplayPorts
6. 3 x USB 3.2 Gen 1 ports
7. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
8. 1 x RJ-45 port
9. 3 x audio jacks

I/O Controller
1. iTE^® I/O Controller Chip

H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control

  * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
1. Support for GIGABYTE Control Center (GCC)

  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus

Bundled Software
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software

Operating System
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm

Garancia (jogi személy):

36

Tömeg:

970 g/db
