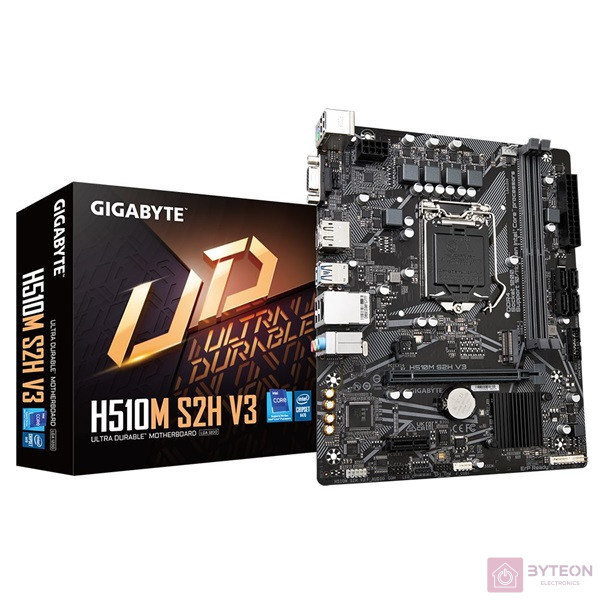

GigaByte H510M S2H V3 alaplap
GigaByte H510M S2H V3 alaplap
29 210 Ft

GigaByte H510M S2H V3 alaplap

GigaByte H510M S2H V3 alaplap
Gyártó
Gigabyte
Gyártói cikkszám
H510M S2H V3
Garancia
36 hónap
További adatok
Raktáron
29 210 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek


  • CPU


    LGA1200 package:


    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors

    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors

    3. L3 cache varies with CPU


    (Please refer to "CPU Support List" for more information.)


  • Chipset




    1. Intel® H470 Express Chipset




  • Memory




    1. 11th Generation Intel® Core™ i9/i7/i5 processors:

      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

    2. 10th Generation Intel® Core™ i9/i7 processors:

      Support for DDR4 2933/2666/2400/2133 MHz memory modules

    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:

      Support for DDR4 2666/2400/2133 MHz memory modules

    4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

    5. Dual channel memory architecture

    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    8. Support for Extreme Memory Profile (XMP) memory modules


    (Please refer "Memory Support List" for more information.)


  • Onboard Graphics


    Integrated Graphics Processor-Intel® HD Graphics support:


    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version and HDCP 2.3.

    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

      * Support for HDMI 1.4 version and HDCP 2.3.

    3. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

      * The D-Sub port is only available with the 10th Generation processors.

    4. Support for up to 3 displays at the same time

      * Only available with the 10th Generation processors.


    (Graphics specifications may vary depending on CPU support.)


  • Audio




    1. Realtek® Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.




  • LAN




    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)




  • Expansion Slots


    CPU:


    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16


    Chipset:


    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1




  • Storage Interface


    Chipset:


    1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

    2. 4 x SATA 6Gb/s connectors


    RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices

    RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices


  • USB


    Chipset:


    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)




  • Internal I/O Connectors




    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 1 x system fan header

    5. 1 x RGB LED strip header

    6. 1 x M.2 Socket 3 connector

    7. 4 x SATA 6Gb/s connectors

    8. 1 x front panel header

    9. 1 x front panel audio header

    10. 1 x USB 3.2 Gen 1 header

    11. 1 x USB 2.0/1.1 header

    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    13. 1 x serial port header

    14. 1 x Clear CMOS jumper




  • Back Panel Connectors




    1. 1 x PS/2 keyboard/mouse port

    2. 1 x D-Sub port

    3. 1 x DisplayPort

    4. 1 x HDMI port

    5. 2 x USB 3.2 Gen 1 ports

    6. 4 x USB 2.0/1.1 ports

    7. 1 x RJ-45 port

    8. 3 x audio jacks




  • I/O Controller




    1. iTE® I/O Controller Chip




  • H/W Monitoring




    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Fan fail warning

    5. Fan speed contro

      * Whether the fan speed control function is supported will depend on the cooler you install.




  • BIOS




    1. 1 x 128 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




  • Unique Features




    1. Support for APP Center

      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

      @BIOS

      Ambient LED

      EasyTune

      Smart Backup

      System Information Viewer

    2. Support for Q-Flash

    3. Support for Xpress Install




  • Bundled Software




    1. Norton® Internet Security (OEM version)

    2. LAN bandwidth management software




  • Operating System




    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit




  • Form Factor




    1. Micro ATX Form Factor; 22.6cm x 18.5cm




Adatok
Garancia (jogi személy):
36
Tömeg:
680 g/db
