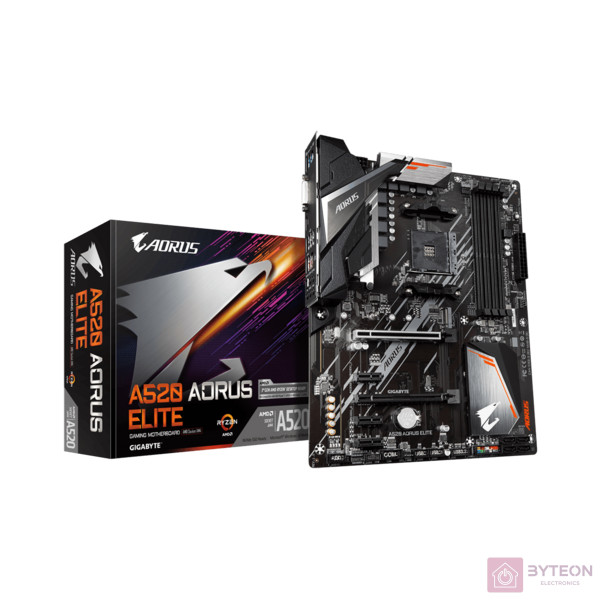

Gigabyte A520 AORUS elite (AM4)

CPU

1. AMD Socket AM4, support for : AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Chipset

1. AMD A520

Memory

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory


2. Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules


3. Dual channel memory architecture


4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

   ECC memory (ECC mode) support varies by CPU


5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules


6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

   * The DVI-D port does not support D-Sub connection by adapter.


2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Audio

1. Realtek^® ALC1200 codec


2. High Definition Audio


3. 2/4/5.1/7.1-channel


4. Support for S/PDIF Out

LAN

1. Realtek^® GbE LAN chip (1000 Mbit/100 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)

   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)


2. 3 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)

   * The PCIEX1_2 and PCIEX1_3 slots share bandwidth with the PCIEX2 slot. The PCIEX2 slot becomes unavailable when a device is installed in the PCIEX1_2 or PCIEX1_3 slot.

Storage Interface

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

1. 4 x SATA 6Gb/s connectors


2. Support for RAID 0, RAID 1, and RAID 10

USB

1. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel


2. 3 x USB 3.2 Gen 1 ports on the back panel

1. 2 x USB 3.2 Gen 1 ports available through the internal USB header


2. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 4 x USB 2.0/1.1 ports on the back panel

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector


2. 1 x 8-pin ATX 12V power connector


3. 1 x CPU fan header


4. 1 x water cooling CPU fan header


5. 3 x system fan headers


6. 2 x addressable LED strip headers


7. 2 x RGB LED strip headers


8. 1 x M.2 Socket 3 connector


9. 4 x SATA 6Gb/s connectors


10. 1 x front panel header


11. 1 x front panel audio header


12. 1 x USB 3.2 Gen 1 header


13. 2 x USB 2.0/1.1 headers


14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)


15. 1 x serial port header


16. 1 x Clear CMOS jumper


17. 1 x Q-Flash Plus button

Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port


2. 1 x DVI-D port


3. 1 x HDMI port


4. 1 x USB 3.2 Gen 2 Type-A port (red)


5. 3 x USB 3.2 Gen 1 ports


6. 4 x USB 2.0/1.1 ports


7. 1 x RJ-45 port


8. 1 x optical S/PDIF Out connector


9. 5 x audio jacks

I/O Controller

1. iTE^® I/O Controller Chip

H/W Monitoring

1. Voltage detection


2. Temperature detection


3. Fan speed detection


4. Water cooling flow rate detection


5. Overheating warning


6. Fan fail warning


7. Fan speed control

   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1. 1 x 128 Mbit flash


2. Use of licensed AMI UEFI BIOS


3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for APP Center

   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   @BIOS

   EasyTune

   Fast Boot

   Game Boost

   ON/OFF Charge

   RGB Fusion

   Smart Backup

   System Information Viewer


2. Support for Q-Flash Plus


3. Support for Q-Flash


4. Support for Xpress Install

Bundled Software

1. Norton^® Internet Security (OEM version)


2. Realtek^® 8118 Gaming LAN Bandwidth Control Utility

Operating System

1. Support for Windows 11 64-bit


2. Support for Windows 10 64-bit

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.


2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
