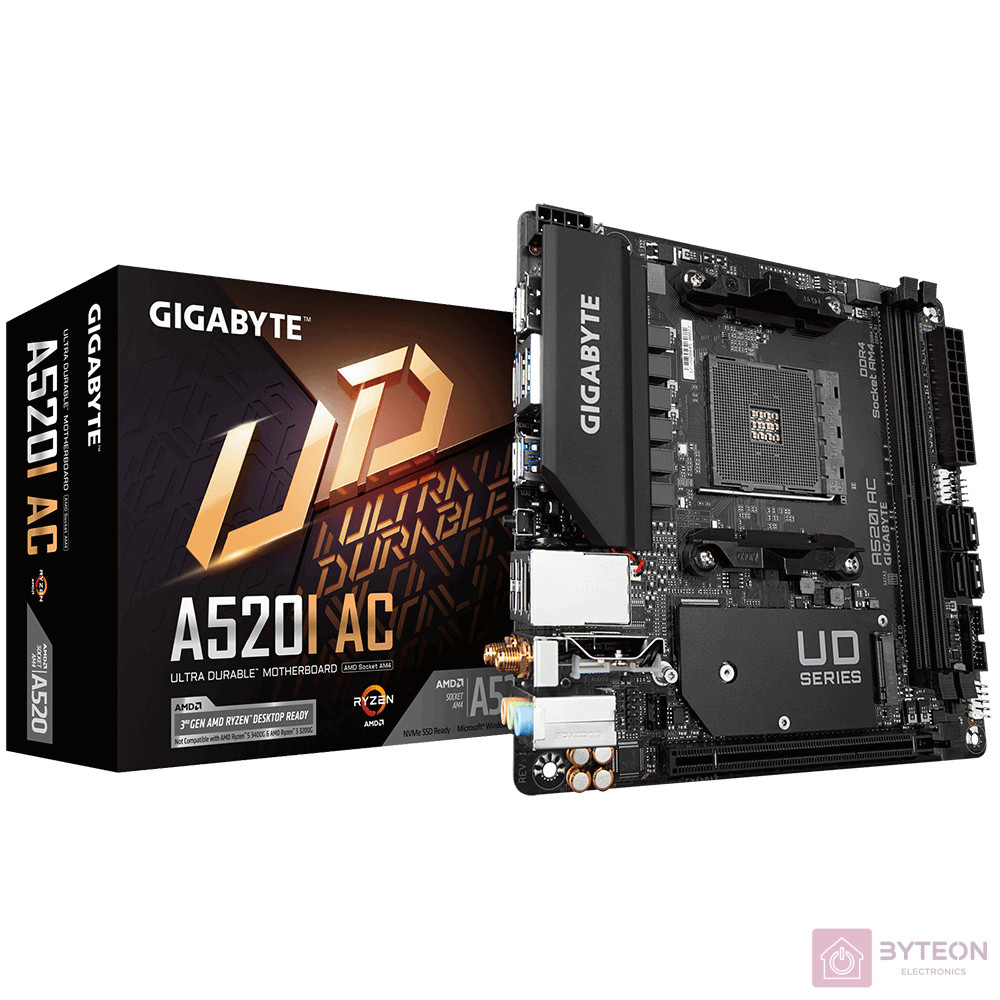

Gigabyte A520I AC (AM4)

Gigabyte A520I AC (AM4)
Gyártó
Gigabyte
Gyártói cikkszám
A520I AC
Garancia
36 hónap
További adatok
Nincs raktáron
54 640 Ft
Részletek


  • CPU




    1. AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors


    (Please refer "CPU Support List" for more information.)


  • Chipset




    1. AMD A520




  • Memory




    1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

    2. Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

    3. Dual channel memory architecture

    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

      * ECC memory (ECC mode) support varies by CPU

    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    6. Support for Extreme Memory Profile (XMP) memory modules


    (Please refer "Memory Support List" for more information.)


  • Onboard Graphics


    Integrated Graphics Processor with AMD Radeon™ Graphics support:


    1. 1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz

      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

    2. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.


    Support for up to 3 displays at the same time

    Maximum shared memory of 16 GB


  • Audio




    1. Realtek® Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.




  • LAN




    1. Realtek® GbE LAN chip (10/100/1000 Mbit)




  • Wireless Communication module


    Intel® Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3)/Intel® Wi-Fi AC 9260 (For PCB rev. 1.1)/ Realtek® Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)


    1. WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

    2. BLUETOOTH 4.2

    3. Support for 11ac wireless standard

      * Actual data rate may vary depending on environment and equipment.




  • Expansion Slots


    Integrated in the CPU:


    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16




  • Storage Interface


    Integrated in the CPU:


    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)


    Chipset:


    1. 4 x SATA 6Gb/s connectors

    2. Support for RAID 0, RAID 1, and RAID 10




  • USB


    Integrated in the CPU:


    1. 4 x USB 3.2 Gen 1 ports on the back panel


    Chipset:


    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header

    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)




  • Internal I/O Connectors




    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 2 x system fan headers

    5. 1 x addressable LED strip header

    6. 1 x RGB LED strip header

    7. 1 x M.2 Socket 3 connector

    8. 4 x SATA 6Gb/s connectors

    9. 1 x front panel header

    10. 1 x front panel audio header

    11. 1 x speaker header

    12. 1 x USB 3.2 Gen 1 header

    13. 1 x USB 2.0/1.1 header

    14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

    15. 1 x serial port header

    16. 1 x Clear CMOS jumper


    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.


  • Back Panel Connectors




    1. 1 x DisplayPort

    2. 2 x HDMI ports

    3. 4 x USB 3.2 Gen 1 ports

    4. 2 x USB 2.0/1.1 ports

    5. 1 x Q-Flash Plus button

    6. 1 x RJ-45 ports

    7. 2 x SMA antenna connectors (1T1R)

    8. 3 x audio jacks




  • I/O Controller




    1. iTE® I/O Controller Chip




  • H/W Monitoring




    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Overheating warning

    5. Fan fail warning

    6. Fan speed control

      * Whether the fan speed control function is supported will depend on the cooler you install.




  • BIOS




    1. 1 x 128 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0




  • Unique Features




    1. Support for APP Center

      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

      @BIOS

      EasyTune

      RGB Fusion

      Smart Backup

      System Information Viewer

    2. Support for Q-Flash Plus

    3. Support for Q-Flash




  • Bundled Software




    1. Norton® Internet Security (OEM version)

    2. LAN bandwidth management software




  • Operating System




    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit




  • Form Factor




    1. Mini-ITX Form Factor; 17.0cm x 17.0cm




  • Remark




    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.




Adatok
Garancia (jogi személy):
24
Tömeg:
1 kg/db
