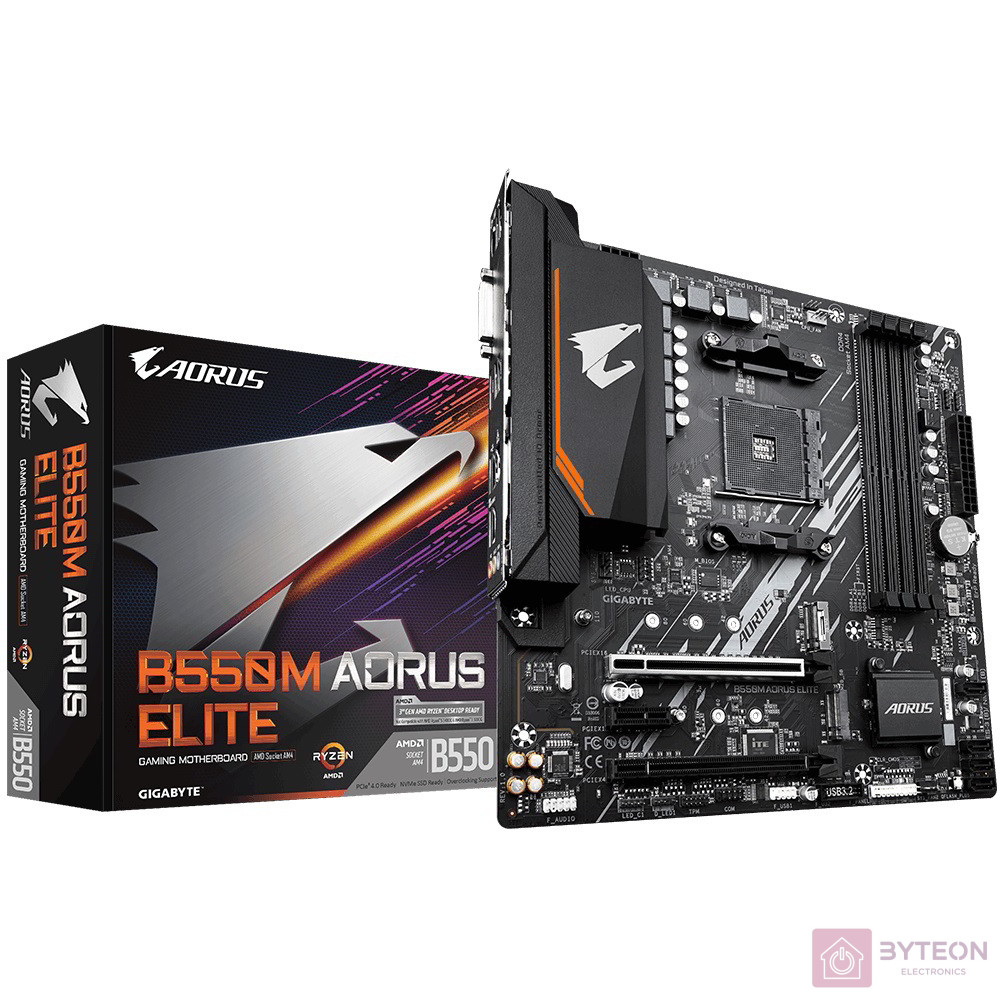

Gigabyte B550M Aorus Elite (AM4)
Gigabyte B550M Aorus Elite (AM4)
46 360 Ft

Gigabyte B550M Aorus Elite (AM4)

Gyártó
Gigabyte
Gyártói cikkszám
B550M AORUS ELITE
Garancia
36 hónap
Raktáron
46 360 Ft
Külső raktár
3 db
Szállítás 4-5 munkanap
Részletek



  • CPU







    1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors


    (Please refer "CPU Support List" for more information.)






  • Chipset







    1. AMD B550








  • Memory







    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    2. 3rd Gen AMD Ryzen™ Processors:

      Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

    3. New Generation AMD Ryzen™ with Radeon™ Graphics processors:

      Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules

    4. Dual channel memory architecture

    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    7. Support for Extreme Memory Profile (XMP) memory modules


    (Please refer "Memory Support List" for more information.)






  • Onboard Graphics





    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

    1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

      * The DVI-D port does not support D-Sub connection by adapter.

    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.


    Maximum shared memory of 16 GB






  • Audio







    1. Realtek® ALC887 codec

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.








  • LAN







    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)








  • Expansion Slots





    1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode

    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode

      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:


    1. Supporting PCIe 3.0 x4 mode


    1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:


    1. Supporting PCIe 3.0 x1 mode








  • Storage Interface





    1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs


    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:


    1. Supporting SATA and PCIe 3.0 x2 SSDs


    4 x SATA 6Gb/s connectors, integrated in the Chipset:


    1. Support for RAID 0, RAID 1, and RAID 10








  • USB





    CPU:

    1. 4 x USB 3.2 Gen 1 ports on the back panel


    Chipset:


    1. 2 x USB 3.2 Gen 1 ports available through the internal USB header

    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)








  • Internal I/O Connectors







    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 2 x system fan headers

    5. 2 x addressable LED strip headers

    6. 2 x RGB LED strip headers

    7. 1 x CPU cooler LED strip/RGB LED strip header

    8. 2 x M.2 Socket 3 connectors

    9. 4 x SATA 6Gb/s connectors

    10. 1 x front panel header

    11. 1 x front panel audio header

    12. 1 x USB 3.2 Gen 1 header

    13. 1 x USB 2.0/1.1 header

    14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

    15. 1 x serial port header

    16. 1 x Clear CMOS jumper

    17. 1 x Q-Flash Plus button








  • Back Panel Connectors







    1. 1 x PS/2 keyboard/mouse port

    2. 1 x DVI-D port

    3. 1 x HDMI port

    4. 4 x USB 3.2 Gen 1 ports

    5. 4 x USB 2.0/1.1 ports

    6. 1 x RJ-45 port

    7. 3 x audio jacks








  • I/O Controller







    1. iTE® I/O Controller Chip








  • H/W Monitoring







    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Overheating warning

    5. Fan fail warning

    6. Fan speed control

      * Whether the fan speed control function is supported will depend on the cooler you install.








  • BIOS







    1. 1 x 256 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0








  • Unique Features







    1. Support for APP Center

      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

      @BIOS

      EasyTune

      Fast Boot

      Game Boost

      ON/OFF Charge

      RGB Fusion

      Smart Backup

      System Information Viewer

    2. Support for Q-Flash Plus

    3. Support for Q-Flash

    4. Support for Xpress Install








  • Bundled Software







    1. Norton® Internet Security (OEM version)

    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility








  • Operating System







    1. Support for Windows 10 64-bit








  • Form Factor







    1. Micro ATX Form Factor; 24.4cm x 24.4cm








  • Remark







    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.







Adatok
Garancia (jogi személy):
24
Tömeg:
1 kg/db
