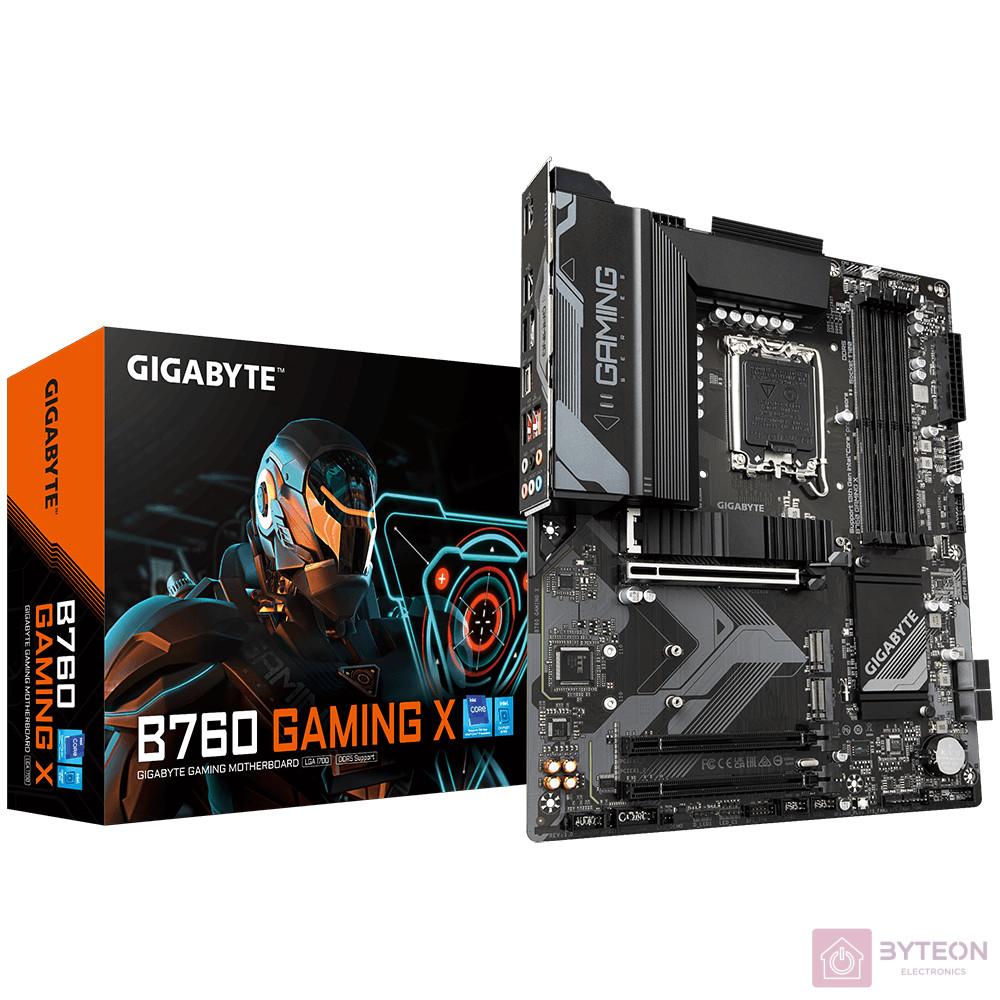

Gigabyte B760 Gaming X Alaplap

CPU

1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors


2. L3 cache varies with CPU

Chipset

1. Intel^® B760 Express Chipset

Memory

1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules


2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory


3. Dual channel memory architecture


4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)


5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules


6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3


2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.0 version and HDCP 2.3.

Audio

1. Realtek^® Audio CODEC


2. High Definition Audio


3. 2/4/5.1/7.1-channel


4. Support for S/PDIF Out

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Storage Interface

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)


2. 4 x SATA 6Gb/s connectors

USB

1. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header


2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel


3. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 1 support


4. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)


5. 1 x USB 2.0/1.1 port on the back panel

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector


2. 1 x 8-pin ATX 12V power connector


3. 1 x CPU fan header


4. 1 x CPU fan/water cooling pump header


5. 3 x system fan headers


6. 1 x system fan/water cooling pump header


7. 2 x addressable LED strip headers


8. 2 x RGB LED strip headers


9. 3 x M.2 Socket 3 connectors


10. 4 x SATA 6Gb/s connectors


11. 1 x front panel header


12. 1 x front panel audio header


13. 1 x S/PDIF Out header


14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support


15. 1 x USB 3.2 Gen 1 header


16. 2 x USB 2.0/1.1 headers


17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)


18. 1 x serial port header


19. 1 x Q-Flash Plus button


20. 1 x reset jumper


21. 1 x Clear CMOS jumper

Back Panel Connectors

1. 1 x USB 3.2 Gen 2 Type-A port (red)


2. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support


3. 1 x USB 3.2 Gen 1 port


4. 5 x USB 2.0/1.1 ports


5. 1 x DisplayPort


6. 1 x HDMI port


7. 1 x RJ-45 port


8. 6 x audio jacks

I/O Controller

1. iTE^® I/O Controller Chip

H/W Monitoring

1. Voltage detection


2. Temperature detection


3. Fan speed detection


4. Water cooling flow rate detection


5. Fan fail warning


6. Fan speed control

   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

1. 1 x 256 Mbit flash


2. Use of licensed AMI UEFI BIOS


3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


2. Support for Q-Flash


3. Support for Q-Flash Plus

Bundled Software

1. Norton^® Internet Security (OEM version)


2. LAN bandwidth management software

Operating System

1. Support for Windows 11 64-bit


2. Support for Windows 10 64-bit

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm
