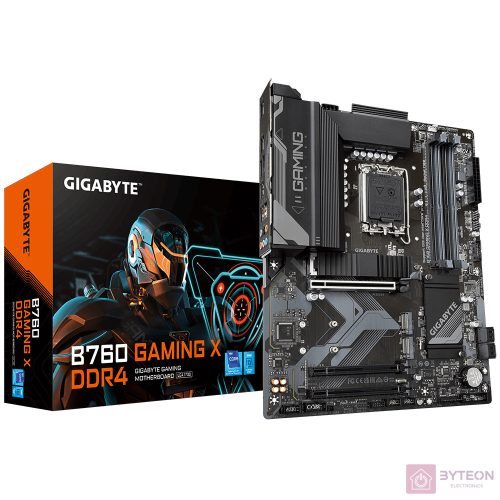

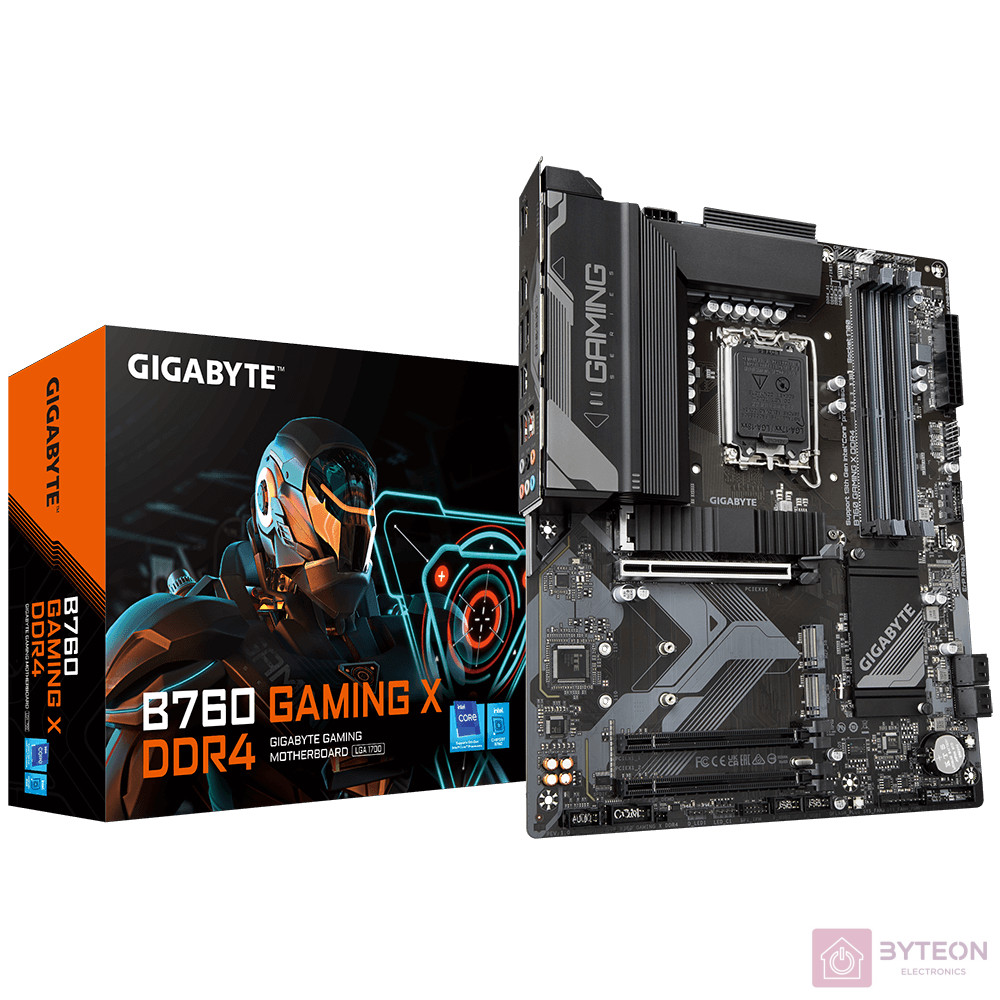

Gigabyte B760 Gaming X DDR4 Alaplap
Gigabyte B760 Gaming X DDR4 Alaplap
58 760 Ft

Gigabyte B760 Gaming X DDR4 Alaplap

Gigabyte B760 Gaming X DDR4 Alaplap
Gyártó
Gigabyte
Gyártói cikkszám
B760 GAMING X DDR4
Garancia
36 hónap
További adatok
Raktáron
58 760 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek



  • CPU







    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

    2. L3 cache varies with CPU


    (Please refer "CPU Support List" for more information.)






  • Chipset







    1. Intel® B760 Express Chipset








  • Memory







    1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    3. Dual channel memory architecture

    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    6. Support for Extreme Memory Profile (XMP) memory modules


    (Please refer "Memory Support List" for more information.)






  • Onboard Graphics





    Integrated Graphics Processor-Intel® HD Graphics support:


    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version and HDCP 2.3

    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.0 version and HDCP 2.3.


    (Graphics specifications may vary depending on CPU support.)






  • Audio







    1. Realtek® Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

    4. Support for S/PDIF Out

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.








  • LAN







    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)








  • Expansion Slots





    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset:


    1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)








  • Storage Interface





    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)


    Chipset:


    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

    2. 4 x SATA 6Gb/s connectors


    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices






  • USB





    Chipset:

    1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

    3. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    4. 1 x USB 2.0/1.1 port on the back panel


    Chipset+2 USB 2.0 Hubs:


    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)








  • Internal I/O Connectors







    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 1 x CPU fan/water cooling pump header

    5. 3 x system fan headers

    6. 1 x system fan/water cooling pump header

    7. 2 x addressable LED strip headers

    8. 2 x RGB LED strip headers

    9. 3 x M.2 Socket 3 connectors

    10. 4 x SATA 6Gb/s connectors

    11. 1 x front panel header

    12. 1 x front panel audio header

    13. 1 x S/PDIF Out header

    14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support

    15. 1 x USB 3.2 Gen 1 header

    16. 2 x USB 2.0/1.1 headers

    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    18. 1 x serial port header

    19. 1 x Q-Flash Plus button

    20. 1 x reset button

    21. 1 x reset jumper

    22. 1 x Clear CMOS jumper








  • Back Panel Connectors







    1. 1 x USB 3.2 Gen 2 Type-A port (red)

    2. 2 x USB 3.2 Gen 1 ports

    3. 5 x USB 2.0/1.1 ports

    4. 1 x DisplayPort

    5. 1 x HDMI port

    6. 1 x RJ-45 port

    7. 6 x audio jacks








  • I/O Controller







    1. iTE® I/O Controller Chip








  • H/W Monitoring







    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Water cooling flow rate detection

    5. Fan fail warning

    6. Fan speed control

      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.








  • BIOS







    1. 1 x 256 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0








  • Unique Features







    1. Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    2. Support for Q-Flash

    3. Support for Q-Flash Plus








  • Bundled Software







    1. Norton® Internet Security (OEM version)

    2. LAN bandwidth management software








  • Operating System







    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit








  • Form Factor







    1. ATX Form Factor; 30.5cm x 24.4cm







Adatok
Garancia (jogi személy):
36
Tömeg:
1,55 kg/db
