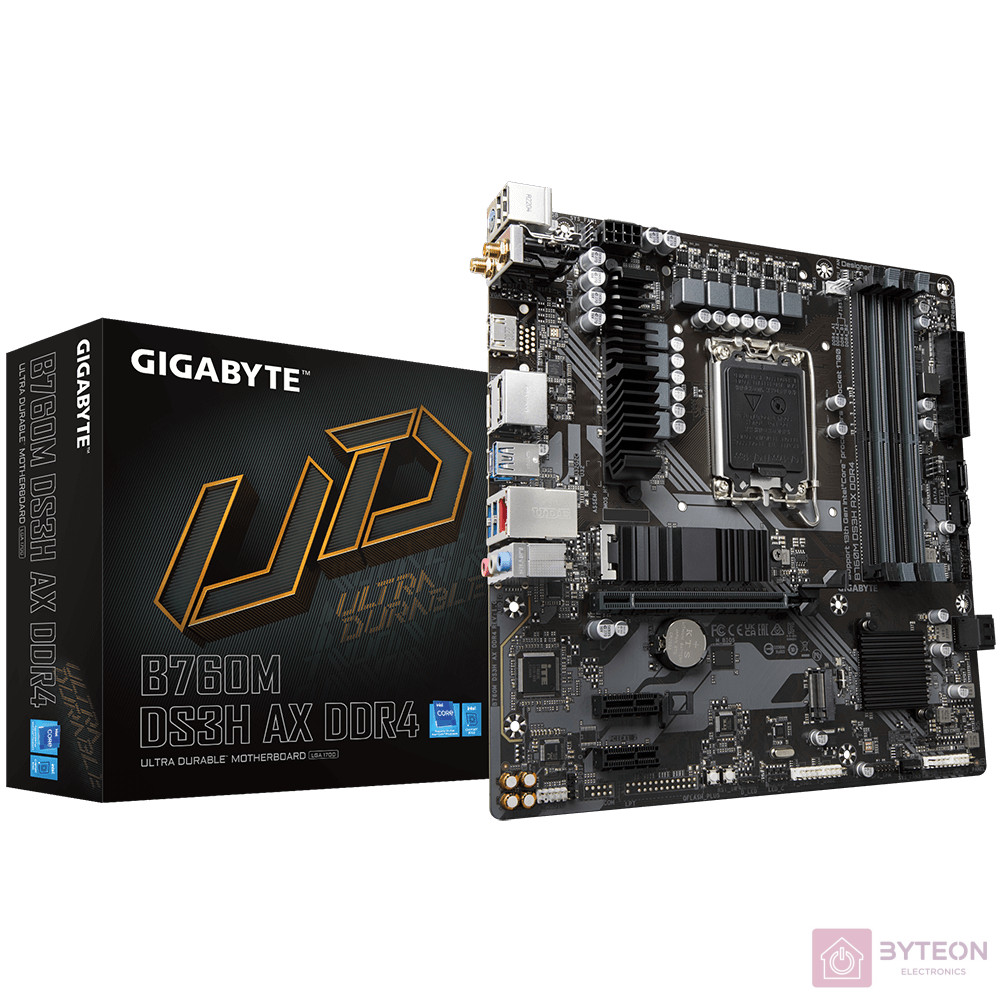

Gigabyte B760M DS3H AX DDR4 Alaplap
Gigabyte B760M DS3H AX DDR4 Alaplap
57 240 Ft

Gigabyte B760M DS3H AX DDR4 Alaplap

Gigabyte B760M DS3H AX DDR4 Alaplap
Gyártó
Gigabyte
Gyártói cikkszám
B760M DS3H AX DDR4
Garancia
36 hónap
További adatok
Raktáron
57 240 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek



  • CPU







    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

    2. L3 cache varies with CPU


    (Please refer "CPU Support List" for more information.)






  • Chipset







    1. Intel® B760 Express Chipset








  • Memory







    1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    3. Dual channel memory architecture

    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    6. Support for Extreme Memory Profile (XMP) memory modules


    (Please refer "Memory Support List" for more information.)






  • Onboard Graphics





    Integrated Graphics Processor-Intel® HD Graphics support:


    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.0 version and HDCP 2.3.

    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version and HDCP 2.3

    3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version.


    (Graphics specifications may vary depending on CPU support.)



    Support for up to triple-display at the same time






  • Audio







    1. Realtek® Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    4. Support for S/PDIF Out








  • LAN







    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)








  • Wireless Communication module





    AMD Wi-Fi 6E RZ608 (MT7921K)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    2. LUETOOTH 5.2

    3. Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate


    (Actual data rate may vary depending on environment and equipment.)






  • Expansion Slots





    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16


    Chipset:


    1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1








  • Storage Interface





    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)


    Chipset:


    1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

    2. 4 x SATA 6Gb/s connectors


    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices






  • USB





    Chipset:

    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

    2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

    3. 2 x USB 2.0/1.1 ports on the back panel


    Chipset+2 USB 2.0 Hubs:


    1. 4 x USB 2.0/1.1 ports available through the internal USB headers








  • Internal I/O Connectors







    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 3 x system fan headers

    5. 1 x addressable LED strip header

    6. 1 x RGB LED strip header

    7. 2 x M.2 Socket 3 connectors

    8. 4 x SATA 6Gb/s connectors

    9. 1 x front panel header

    10. 1 x front panel audio header

    11. 1 x USB 3.2 Gen 1 header

    12. 2 x USB 2.0/1.1 headers

    13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    14. 1 x S/PDIF Out header

    15. 1 x Q-Flash Plus button

    16. 1 x reset button

    17. 1 x reset jumper

    18. 1 x Clear CMOS jumper








  • Back Panel Connectors







    1. 2 x USB 2.0/1.1 ports

    2. 1 x PS/2 keyboard/mouse port

    3. 2 x SMA antenna connectors (2T2R)

    4. 1 x HDMI port

    5. 2 x DisplayPorts

    6. 3 x USB 3.2 Gen 1 ports

    7. 1 x USB Type-C® port, with USB 3.2 Gen 2 support

    8. 1 x RJ-45 port

    9. 3 x audio jacks








  • I/O Controller







    1. iTE® I/O Controller Chip








  • H/W Monitoring







    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Water cooling flow rate detection

    5. Fan fail warning

    6. Fan speed control

      * Whether the fan speed control function is supported will depend on the cooler you install.








  • BIOS







    1. 1 x 128 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0








  • Unique Features







    1. Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    2. Support for Q-Flash

    3. Support for Q-Flash Plus








  • Bundled Software







    1. Norton® Internet Security (OEM version)

    2. LAN bandwidth management software








  • Operating System







    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit








  • Form Factor







    1. Micro ATX Form Factor; 24.4cm x 24.4cm







Adatok
Garancia (jogi személy):
36
Tömeg:
1,19 kg/db
