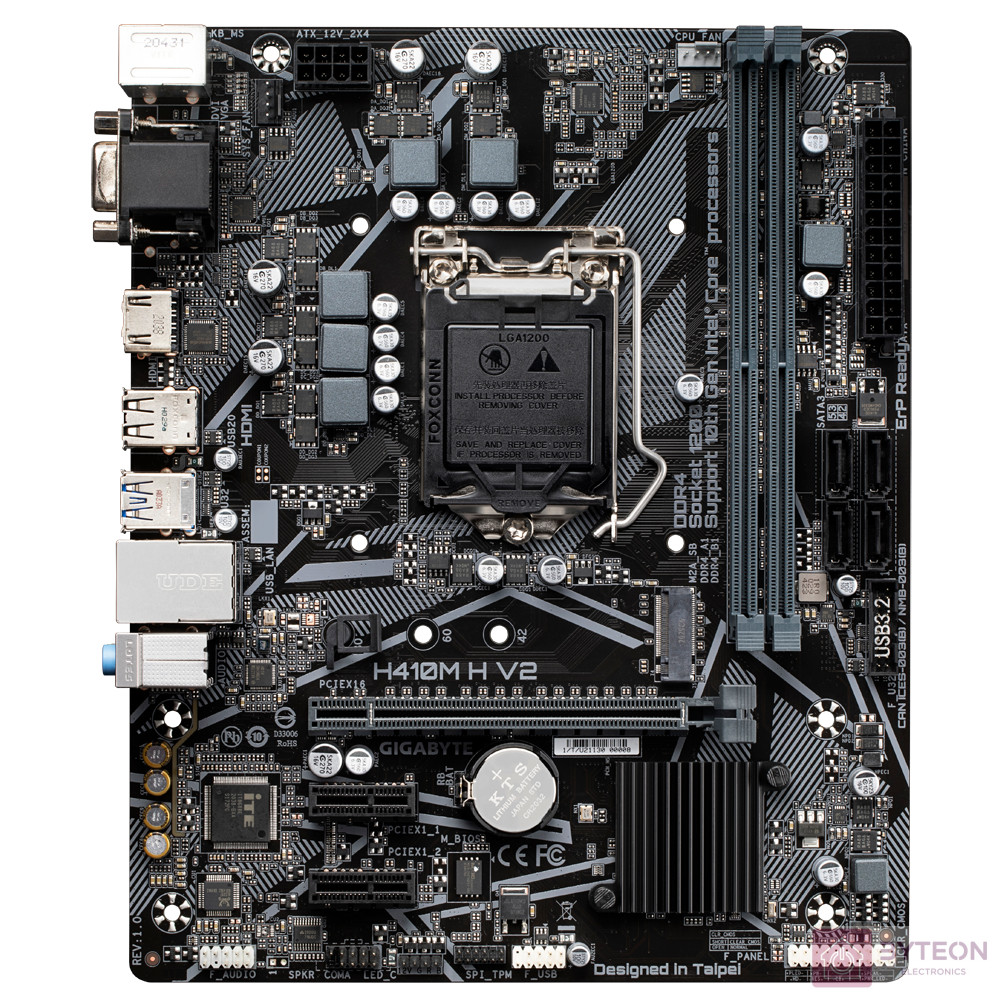

Gigabyte H410M H V2 alaplap Intel H410 LGA 1200 Micro ATX
Gigabyte H410M H V2 alaplap Intel H410 LGA 1200 Micro ATX
26 990 Ft

Gigabyte H410M H V2 alaplap Intel H410 LGA 1200 Micro ATX

Gigabyte H410M H V2 alaplap Intel H410 LGA 1200 Micro ATX
Gyártó
Gigabyte
Gyártói cikkszám
H410M H V2
Garancia
36 hónap
További adatok
Raktáron
26 990 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek



  • CPU







    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package

    2. L3 cache varies with CPU


    (Please refer "CPU Support List" for more information.)






  • Chipset







    1. Intel® H410 Express Chipset








  • Memory







    1. Intel® Core™ i9/i7 processors:

      Support for DDR4 2933/2666/2400/2133 MHz memory modules

    2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:

      Support for DDR4 2666/2400/2133 MHz memory modules

    3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

    4. Dual channel memory architecture

    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    7. Support for Extreme Memory Profile (XMP) memory modules


    (Please refer "Memory Support List" for more information.)






  • Onboard Graphics





    Integrated Graphics Processor-Intel® HD Graphics support:


    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

    2. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz

      * Support for HDMI 1.4 version and HDCP 2.3.


    Maximum shared memory of 512 MB






  • Audio







    1. Realtek® Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.








  • LAN







    1. Intel® GbE LAN chip (1 Gbit/100 Mbit)








  • Expansion Slots







    1. 1 x PCI Express x16 slot, running at x16

    2. 2 x PCI Express x1 slots

      (The PCI Express slots conform to PCI Express 3.0 standard.)


    Supports up to ASPM L1.2 power management protocols.






  • Storage Interface







    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

    2. 4 x SATA 6Gb/s connectors

    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10

    4. Intel® Optane™ Memory Ready


    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.






  • USB





    Chipset:

    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)








  • Internal I/O Connectors







    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x CPU fan header

    4. 1 x system fan header

    5. 1 x RGB LED strip header

    6. 4 x SATA 6Gb/s connectors

    7. 1 x front panel header

    8. 1 x front panel audio header

    9. 1 x USB 3.2 Gen 1 header

    10. 1 x USB 2.0/1.1 header

    11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    12. 1 x serial port header

    13. 1 x Clear CMOS jumper








  • Back Panel Connectors







    1. 1 x PS/2 keyboard/mouse port

    2. 1 x D-Sub port

    3. 1 x HDMI port

    4. 2 x USB 3.2 Gen 1 ports

    5. 4 x USB 2.0/1.1 ports

    6. 1 x RJ-45 port

    7. 3 x audio jacks








  • I/O Controller







    1. iTE® I/O Controller Chip








  • H/W Monitoring







    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Overheating warning

    5. Fan fail warning

    6. Fan speed control

      * Whether the fan speed control function is supported will depend on the cooler you install.








  • BIOS







    1. 1 x 256 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0








  • Unique Features







    1. Support for APP Center

      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

      @BIOS

      Ambient LED

      EasyTune

      Fast Boot

      Game Boost

      ON/OFF Charge

      Smart Backup

      System Information Viewer

    2. Support for Q-Flash

    3. Support for Xpress Install








  • Bundled Software







    1. Norton® Internet Security (OEM version)

    2. cFosSpeed








  • Operating System







    1. Support for Windows 10 64-bit








  • Form Factor







    1. Micro ATX Form Factor; 22.6cm x 18.5cm








  • Remark







    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.







Adatok
Garancia (jogi személy):
36
Tömeg:
780 g/db
