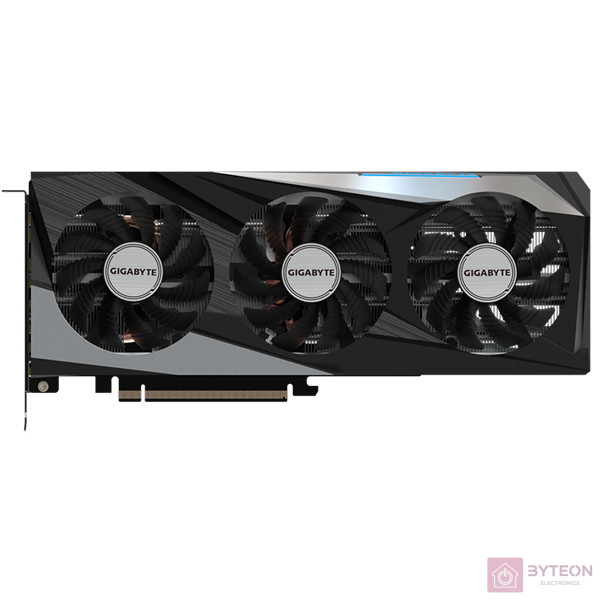

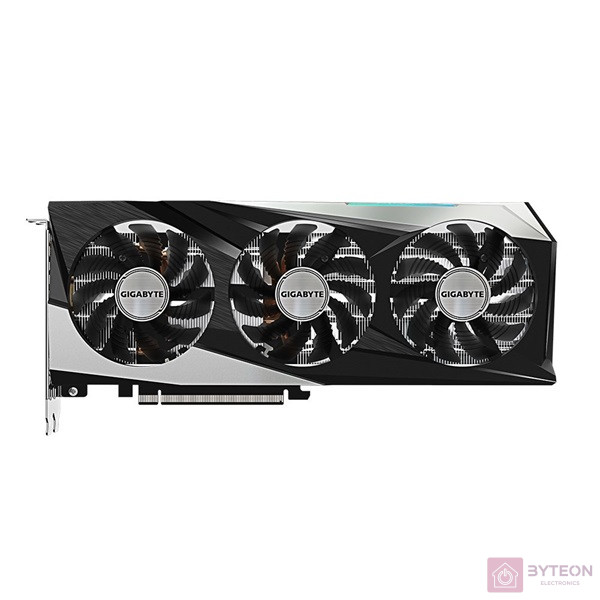

Gigabyte RX7600 GAMING OC 8G

Graphics Processing

Radeon™ RX 7600

Core Clock

Boost Clock* : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock* : up to 2355 MHz (Reference card: 2250 MHz)

Stream Processors

2048

Memory Clock

18 Gbps

Memory Size

8 GB

Memory Type

GDDR6

Memory Bus

128 bit

Card Bus

PCI-E 4.0

Digital max resolution

7680x4320

Multi-view

4

Card size

L=282 W=115 H=50 mm

PCB Form

ATX

DirectX

12 Ultimate

OpenGL

4.6

Recommended PSU

550W

Power Connectors

8 pin*1

Output

DisplayPort 1.4a *2
HDMI 2.1a *2

Accessories

Quick guide

Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
