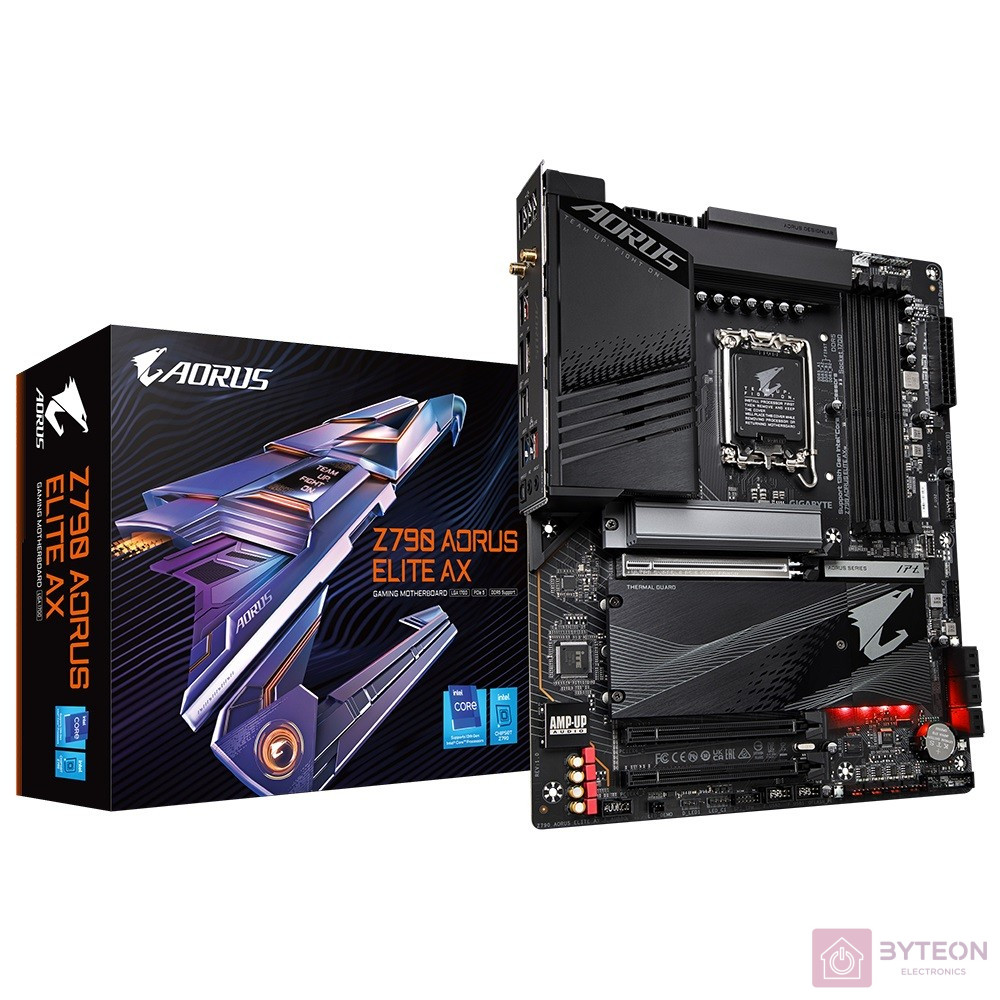

Gigabyte Z790 Aorus Elite AX Alaplap

Gigabyte Z790 Aorus Elite AX Alaplap
Gyártó
Gigabyte
Gyártói cikkszám
Z790 AORUS ELITE AX
Garancia
36 hónap
További adatok
Nincs raktáron
118 090 Ft
Részletek



  • CPU







    1. LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

    2. L3 cache varies with CPU


    (Please refer "CPU Support List" for more information.)






  • Chipset







    1. Intel® Z790 Express Chipset








  • Memory







    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    3. Dual channel memory architecture

    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    6. Support for Extreme Memory Profile (XMP) memory modules


    (Please refer "Memory Support List" for more information.)






  • Onboard Graphics





    Integrated Graphics Processor-Intel® HD Graphics support:


    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.0 version and HDCP 2.3.

    2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60

      * Support for DisplayPort 1.2 version and HDCP 2.3


    (Graphics specifications may vary depending on CPU support.)






  • Audio







    1. Realtek® Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    4. Support for S/PDIF Out








  • LAN







    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)








  • Wireless Communication module





    Intel® Wi-Fi 6E AX211


    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    2. BLUETOOTH 5.3

    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

      * Actual data rate may vary depending on environment and equipment.








  • Expansion Slots





    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset:


    1. 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)


    Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)






  • Storage Interface





    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)


    Chipset:


    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

    2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

    3. 6 x SATA 6Gb/s connectors


    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices



    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

    * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.






  • USB





    Chipset:

    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

    2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

    3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)


    Chipset+2 USB 2.0 Hubs:


    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)








  • Internal I/O Connectors







    1. 1 x 24-pin ATX main power connector

    2. 2 x 8-pin ATX 12V power connectors

    3. 1 x CPU fan header

    4. 1 x water cooling CPU fan header

    5. 3 x system fan headers

    6. 1 x system fan/water cooling pump header

    7. 2 x addressable LED strip headers

    8. 2 x RGB LED strip headers

    9. 4 x M.2 Socket 3 connectors

    10. 6 x SATA 6Gb/s connectors

    11. 1 x front panel header

    12. 1 x front panel audio header

    13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support

    14. 1 x USB 3.2 Gen 1 header

    15. 2 x USB 2.0/1.1 headers

    16. 2 x Thunderbolt™ add-in card connectors

    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    18. 1 x reset button

    19. 1 x Q-Flash Plus button

    20. 1 x Clear CMOS button

    21. 1 x reset jumper

    22. 1 x Clear CMOS jumper








  • Back Panel Connectors







    1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

    2. 2 x USB 3.2 Gen 2 Type-A ports (red)

    3. 3 x USB 3.2 Gen 1 ports

    4. 4 x USB 2.0/1.1 ports

    5. 2 x SMA antenna connectors (2T2R)

    6. 1 x HDMI 2.0 port

    7. 1 x DisplayPort

    8. 1 x RJ-45 port

    9. 1 x optical S/PDIF Out connector

    10. 2 x audio jacks








  • I/O Controller







    1. iTE® I/O Controller Chip








  • H/W Monitoring







    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Water cooling flow rate detection

    5. Fan fail warning

    6. Fan speed control

      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.








  • BIOS







    1. 1 x 256 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0








  • Unique Features







    1. Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    2. Support for Q-Flash

    3. Support for Q-Flash Plus

    4. Support for Smart Backup








  • Bundled Software







    1. Norton® Internet Security (OEM version)

    2. LAN bandwidth management software








  • Operating System







    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit








  • Form Factor







    1. ATX Form Factor; 30.5cm x 24.4cm







Adatok
Garancia (jogi személy):
24
Tömeg:
2,06 kg/db
