Form Factor |

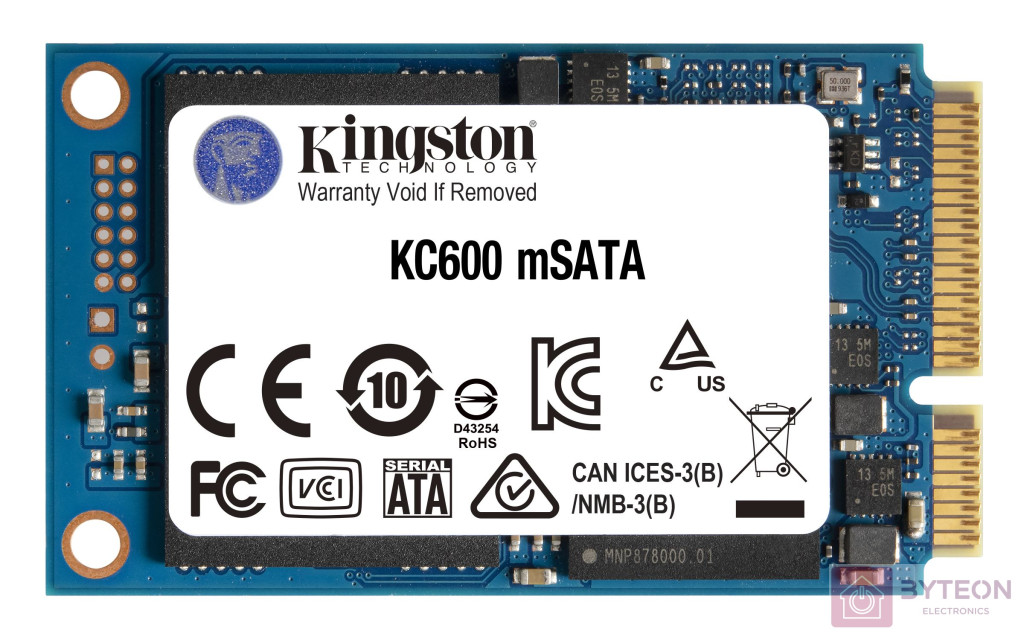

mSATA |
Interface |
SATA Rev. 3.0 (6Gb/s) – with backwards capability to SATA Rev 2.0 (3Gb/s) |
Capacities |
256GB, 512GB, 1024GB |
Controller |
SM2259 |
NAND |
3D TLC |
Encrypted |
XTS-AES 256-bit encryption |
Sequential Read/Write |
256GB — up to 550/500MB/s
512GB – 1024GB — up to 550/520MB/s |
Maximum 4K Read/Write |
up to 90,000/80,000 IOPS |
Power Consumption |
0.08W Idle / 0.1W Avg / 1.2W (MAX) Read / 2.4W (MAX) Write |
Dimensions |
50.8mm x2 9.85mm x 4.85mm |
Weight |
7g |
Operating temperature |
0°C~70°C |
Storage temperature |
-40°C~85°C |
Vibration operating |
2.17G Peak (7-800Hz) |
Vibration non-operating |
20G Peak (10-2000Hz) |
Life expectancy |
1 millions hours MTBF |
Warranty/support |
Limited 5-year warranty with free technical support |
Total Bytes Written (TBW) |
256GB — 150TB
512GB — 300TB
1024GB — 600TB |
