Antenna Type |
4 Fixed Omni-Directional Antennas
|
|---|
Frequency |
2.4 - 2.5GHz, 5.15 - 5.35GHz
|
|---|
Reception Sensitivity |
5 GHz
• 11a 6M: -92 dBm
• 11a 54M: -75 dBm
• 11ac 20M MCS8: -70 dBm
• 11ac 40M MCS9: -64 dBm
• 11ac 80M MCS9: -60 dBm
2.4 GHz
• 11g 6M: -95 dBm
• 11g 54M: -77 dBm
• 11n 20M MCS7: -74 dBm
• 11n 40M MCS7: -71 dBm
|
|---|
Dimensions (W X D X H) |
222 × 140 × 32 mm
|
|---|
External Power Supply |
9 VDC/ 0.85 A
|
|---|
Signal Rate |
300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
|
|---|
Button |
WPS/Reset Button
|
|---|
Wireless Standards |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
|
|---|
Interfaces |
1 Gigabit WAN Port
3 Gigabit LAN Ports
|
|---|
Package Contents |

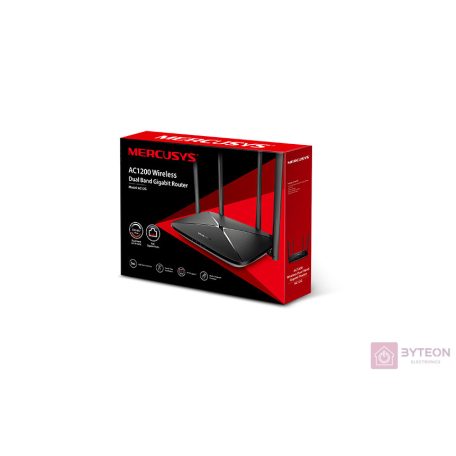

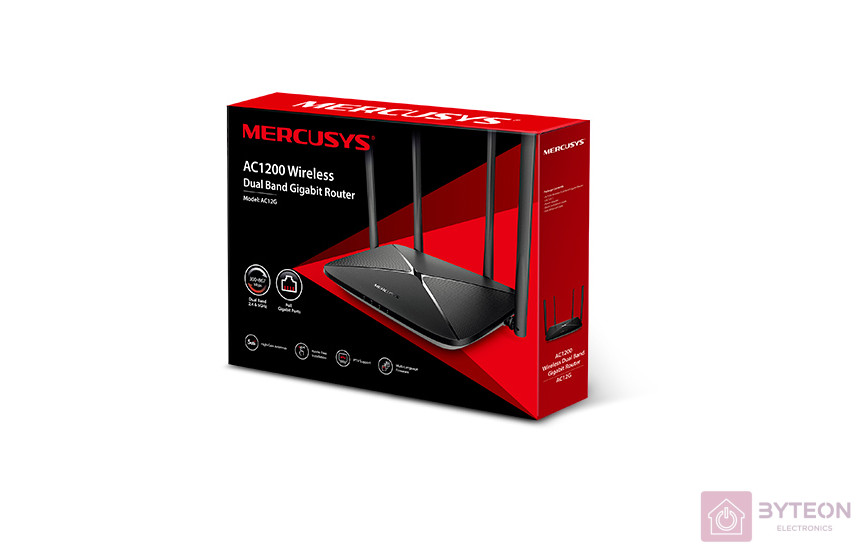

• AC1200 Wireless Dual Band Gigabit Router
(AC12G)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
|
|---|
Environment |
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
|
|---|
Transmission Power |
<20dBm (EIRP)
|
|---|
Wireless Security |
WPA-PSK / WPA2-PSK
|
|---|
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics
|
|---|
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
|
|---|
Management |
Access Control
Local Management
Remote Management
|
|---|
DHCP |
Server
|
|---|
Port Forwarding |
Virtual Server, UPnP, DMZ
|
|---|
Firewall Security |
IP and MAC Address Binding
|
|---|
Guest Network |
2.4GHz Guest Network, 5GHz Guest Network
|
|---|
Protocols |
IPv4, IPv6
|
|---|
Dynamic DNS |
NO-IP, DynDNS
|
|---|
Certifications |
CE, ROHS
|
|---|
