Dimensions (W X D X H) |
114x94x26 mm
|
|---|
Protocols |
IPv4, IPv6
|
|---|
External Power Supply |
5VDC/0.6A |
|---|
Antenna Type |
2 x 5dBi fixed omni directional antennas |
|---|
Signal Rate |
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
|
|---|
Button |
RESET |
|---|
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|
Frequency |
2.4 - 2.4835GHz |
|---|
Reception Sensitivity |
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -77dBm@10% PER
54M: -76dBm@10% PER
11M: -90dBm@8% PER
6M: -92dBm@10% PER
1M: -97dBm@8% PER
|
|---|
Interfaces |
2 10/100Mbps LAN ports
1 10/100Mbps WAN port
|
|---|
Certifications |
CE, ROHS |
|---|
Package Contents |

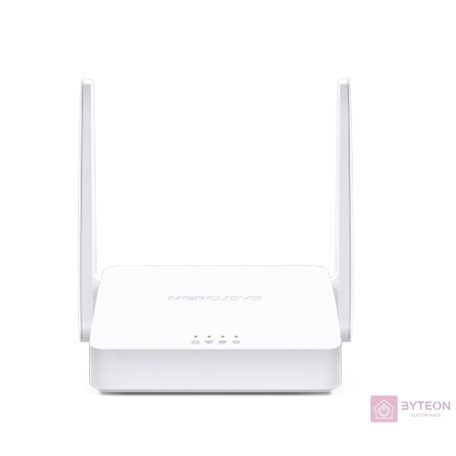

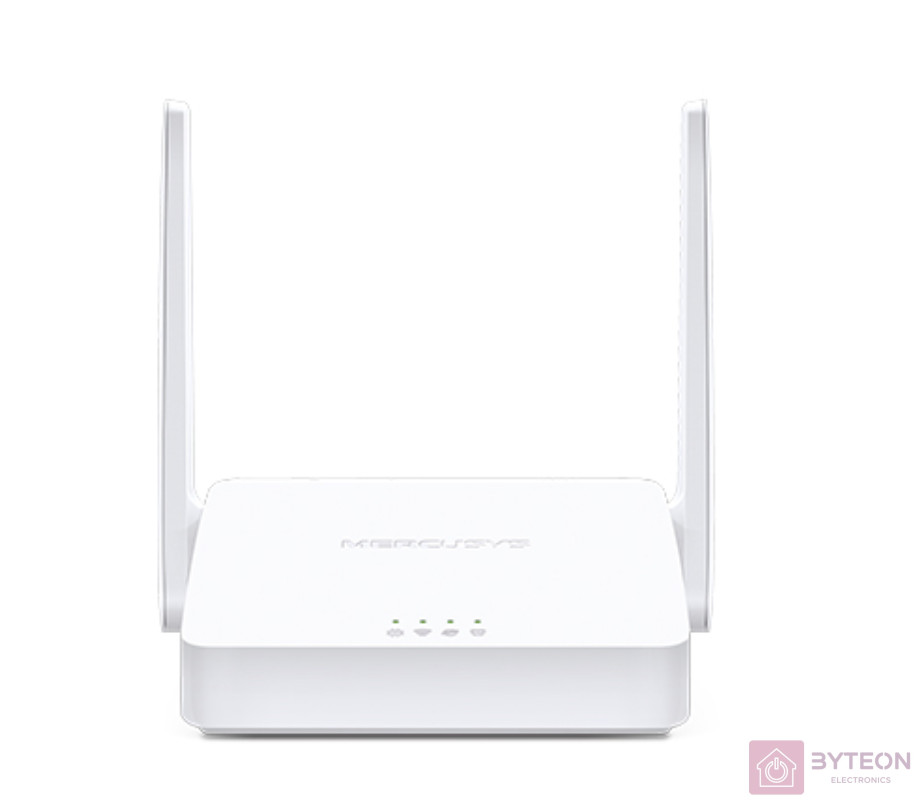

300Mbps Wireless N Router
MW301R
Power adapter
Quick Installation Guide
Ethernet cable
|
|---|
Environment |
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
|
|---|
Transmission Power |
<20dBm |
|---|
Wireless Security |
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
|---|
Wireless Functions |
WDS bridge |
|---|
WAN Type |
Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
|---|
Management |
Parental Control
Access control
Local management
Remote management
|
|---|
DHCP |
Server |
|---|
Port Forwarding |
Virtual server, UPnP, DMZ |
|---|
Dynamic DNS |
DynDNS?NO-IP |
|---|
Firewall Security |
IP and MAC address binding |
|---|
Guest Network |
2.4GHz guest network |
|---|
