Interfaces |
1× Gigabit WAN Port
2× Gigabit LAN Ports
|
|---|
Button |
WPS/Reset Button
|
|---|
External Power Supply |
12V/1A
|
|---|
Dimensions (W X D X H) |
175.6 x 157.2 x 45 mm
|
|---|
Antenna Type |
6 Fixed Omni-Directional Antennas
|
|---|
Package Contents |

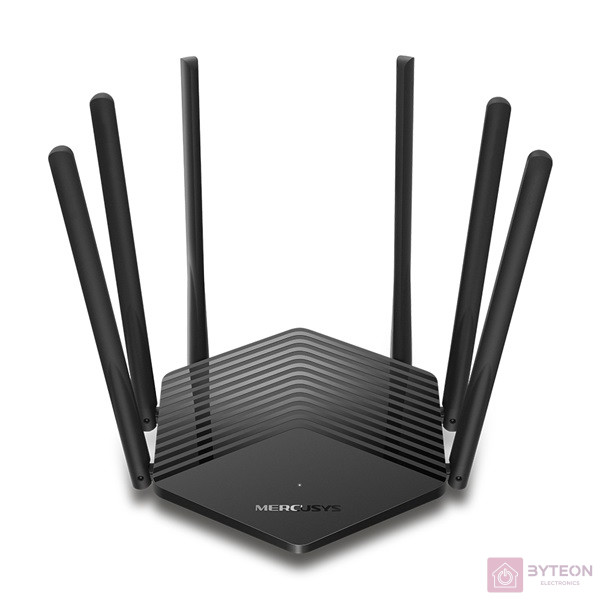

• AC1900 Wireless Dual Band Gigabit Router
(MR50G)
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
|
|---|
Wireless Standards |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n/ac 2.4 GHz
|
|---|
Frequency |
2.4 - 2.5GHz, 5.15 - 5.25GHz
|
|---|
Signal Rate |
600 Mbps at 2.4 GHz, 1300 Mbps at 5 GHz
|
|---|
Transmission Power |
CE:<20dBm (2.4GHz), <23dBm (5.15 - 5.25GHz)
FCC:<30dBm(2.4 GHz & 5GHz)
|
|---|
Reception Sensitivity |
5GHz:
11a 6Mbps: -98dBm, 11a 54M: -78dBm
11ac VHT20_MCS0: -98dBm, 11ac VHT20_MCS8: -72dBm
11ac VHT40_MCS0: -92dBm, 11ac VHT40_MCS9: -68dBm
11ac VHT80_MCS0: -89dBm, 11ac VHT80_MCS9: -64dBm
2.4GHz:
11g 6Mbps: -97dBm, 11a 54M: -77dBm
11n VHT20_MCS0: -97dBm, 11n VHT20_MCS8: -72dBm
11n VHT40_MCS0: -92dBm, 11n VHT40_MCS9: -67dBm
|
|---|
Wireless Functions |
Enable/Disable Wireless Radio, Wireless Statistics
|
|---|
Wireless Security |
WPA-PSK / WPA2-PSK
|
|---|
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
|
|---|
DHCP |
Server
|
|---|
Port Forwarding |
Virtual Server, UPnP, DMZ
|
|---|
Management |
Access Control
Local Management
Remote Management
|
|---|
Firewall Security |
IP and MAC Address Binding
|
|---|
Protocols |
IPv4, IPv6
|
|---|
Guest Network |
2.4 GHz Guest Network, 5 GHz Guest Network
|
|---|
