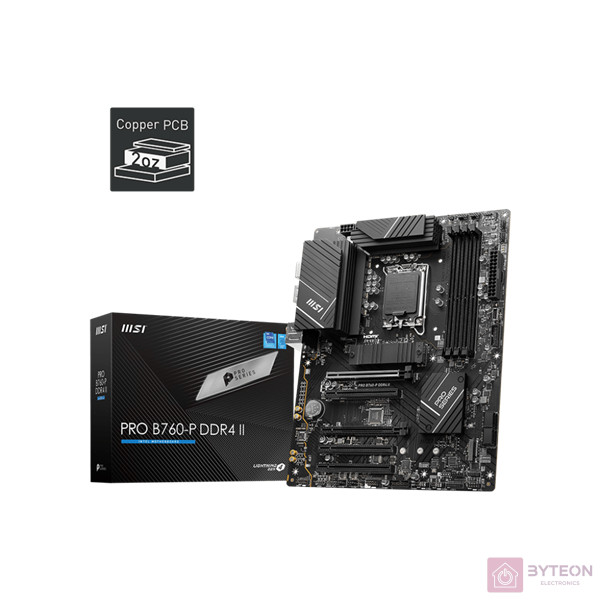

MSI PRO B760-P DDR4 II Intel B760 LGA1700 ATX alaplap
MSI PRO B760-P DDR4 II Intel B760 LGA1700 ATX alaplap
58 760 Ft

MSI PRO B760-P DDR4 II Intel B760 LGA1700 ATX alaplap

Gyártó
MSI
Gyártói cikkszám
PRO B760-P DDR4 II
Garancia
36 hónap
Raktáron
58 760 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek











































CHIPSET INTEL B760
CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

LGA 1700
MEMORY 4x DDR4, Maximum Memory Capacity 128GB

Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 5333+ MHz

• 1DPC 2R Max speed up to 4800+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz



Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS 1x HDMI™

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT 5x PCI-E x16 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen1 Type C (Front)

1x USB 3.2 Gen2 Type C (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
AUDIO Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Adatok
Garancia (jogi személy):
36
Tömeg:
1,33 kg/db
