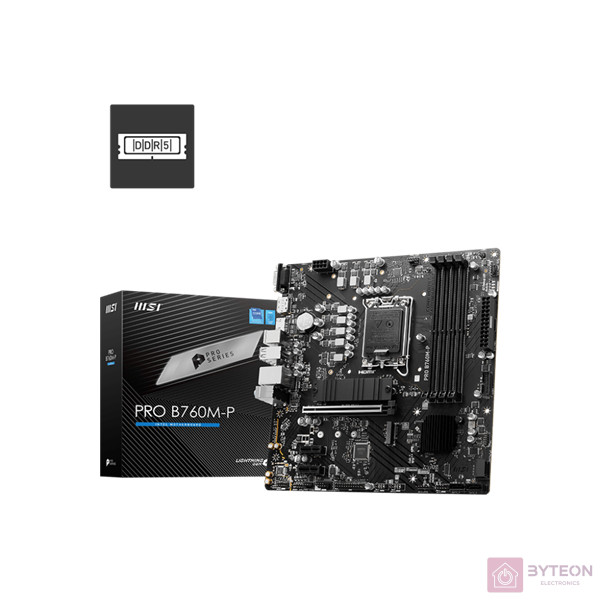

MSI PRO B760M-P Intel B760 LGA1700 mATX alaplap
MSI PRO B760M-P Intel B760 LGA1700 mATX alaplap
52 400 Ft

MSI PRO B760M-P Intel B760 LGA1700 mATX alaplap

Gyártó
MSI
Gyártói cikkszám
PRO B760M-P
Garancia
36 hónap
Raktáron
52 400 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek











































CHIPSET INTEL B760
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz



Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS 1x HDMI™

Support HDMI™ 1.4, maximum resolution of 4K 30Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot

2x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
STORAGE 2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

1x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type C (Rear)
LAN Realtek® RTL8111H Gigabit LAN
AUDIO Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Adatok
Garancia (jogi személy):
36
Tömeg:
1,33 kg/db
