- Wireless Standards
-
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
-
- WiFi Speeds
-
2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz
-
- Reception Sensitivity
-
2.4GHz:
11g 6Mbps:-96.5dBm
11g 54Mbps:-78dBm
11AX HE20 MCS0:-96.5dBm
11AX HE20 MCS11:-65dBm
11AX HE40 MCS0:-93.5dBm
11AX HE40 MCS11:-63dBm
5GHz:
11a 6Mbps:-96dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74.5dBm
11ac VHT40 MCS9:-70.5dBm
11ac VHT80 MCS9:-66.5dBm
11AX HE20 MCS11:-66dBm
11AX HE40 MCS11:-63dBm
11AX HE80 MCS11:-61dBm
-
- Transmission Power
-
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
-
- Wireless Security
-
WPA-PSK/WPA2-PSK/WPA3
-
- Mesh protocol
-
802.11k/v/r
- Operation Modes
-
Router, Access Point
-
- Quality of Service
-
WMM
-
- WAN Type
-
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
-
- Management
-
Local Management, Remote Management, Multi-Managers
-
- DHCP
-
Server, Client
-
- Firewall Security
-
SPI Firewall
-
- Protocols
-
Supports IPv4 and IPv6
-
- Guest Network
-
2.4 GHz Guest Network,
5 GHz Guest Network
- Dimensions
-
5 × 3.2 × 3.3 in (128 × 81 × 83.7 mm)
-
- Interfaces
-
3× Gigabit Ports per Halo Unit
(WAN/LAN auto-sensing)
-
- Button
-
Reset button
- Package Contents
-

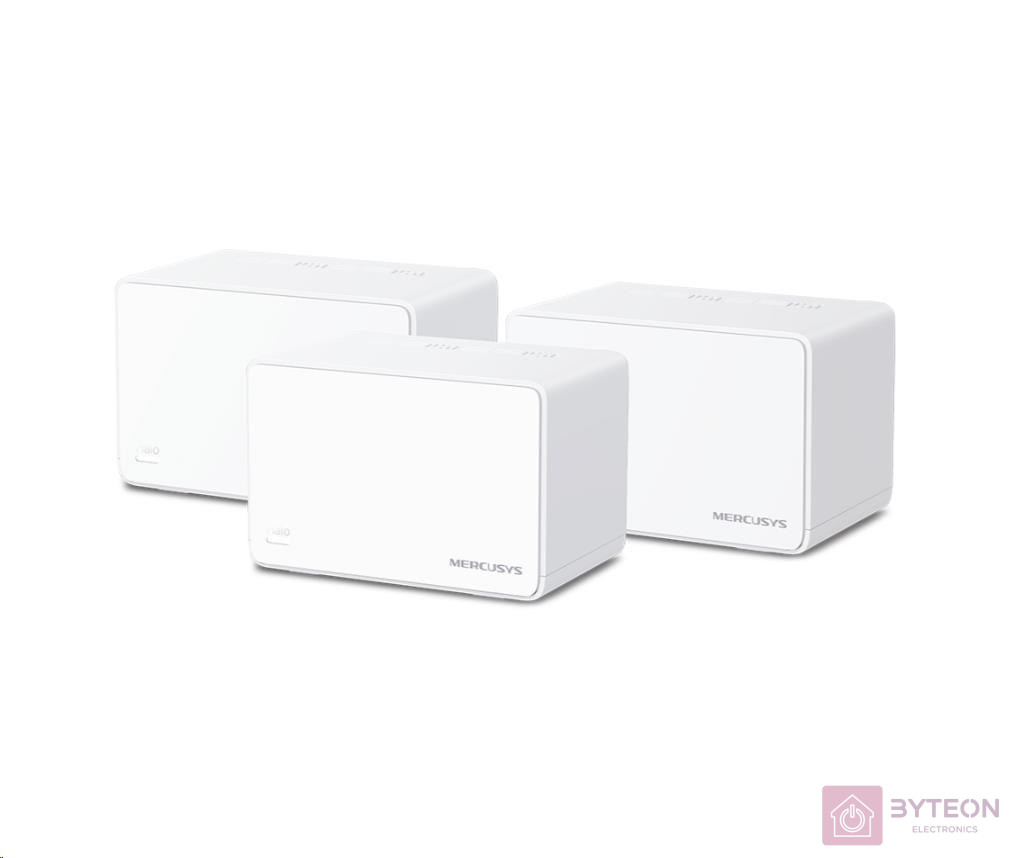

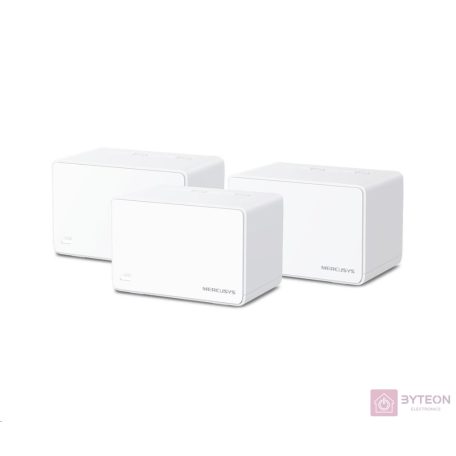

3× Halo H80X Units
1× RJ45 Ethernet Cable
3× Power Adapters
Quick Installation Guide
-
- Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
