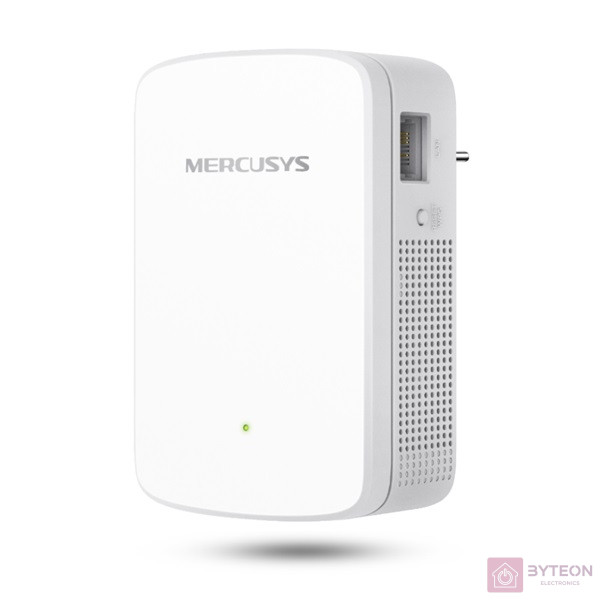

Mercusys ME20 AC750 Wi-Fi Range Extender

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

2.4 GHz - 2.5 GHz, 5 GHz

Up to 750 Mbps (433 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)

5 GHz:

11AC VHT80 MCS9< -63dBm

2.4 GHz:

11N HT40 MCS7< -71dBm

2.4 GHz: ≤30dBm; 5 GHz: band1&band4 ≤30dBm; band2&band3 ≤24dBm

WPA-PSK/WPA2-PSK

112*84.7*39 mm

10/100 Mbps RJ45 Port

RESET/WPS Button

7.2 W

NCC, RoHS

• Wi-Fi Range Extender (ME20)

• Quick Installation Guide

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Operating Humidity: 10%~90% Non-Condensing

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

2.4 - 2.5 GHz, 5 GHz

Up to 1200 Mbps (867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz)



5 GHz:

11ac HT80 MCS9 < -63 dBm

2.4 GHz:

11n HT40 MCS7 < -70 dBm

< 20 dBm

WPA-PSK/WPA2-PSK

112 × 84.7 × 39 mm

1× 10/100Mbps RJ45 Port

RESET/WPS Button

2× External Antennas

9.2 W

CE, RoHS

• Wi-Fi Range Extender (ME30)

• Quick Installation Guide

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Operating Humidity: 10%~90% Non-Condensing
