Mercusys MR90X WiFi router AX6000

Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)

11g 6Mbps: -97dBm

11g 54Mbps: -79dBm

11n HT40 MCS7:-74dBm

11n HT20 MCS7:-77dBm

11a 6Mbps: -97dBm

11a 54Mbps: -79dBm

11ac VHT20 MCS8:-75dBm

11ac VHT40 MCS9:-71dBm

11ac VHT80 MCS9:-67dBm

11ax VHT20 MCS11:-67dBm

11ax VHT40 MCS11:-64dBm

11ax VHT80 MCS11:-61dBm

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (band1? band2)

5 GHz < 30dBm (band3)

WPA / WPA2-Personal, WPA2 / WPA3-Personal

Enable/Disable Wireless Radio, WMM

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Access Control

Local Management

Remote Management

Server, DHCP Client List

Port Forwarding, Port Triggering, UPnP, DMZ

SPI Firewall, IP and MAC Address Binding

2.4 GHz Guest Network, 5 GHz Guest Network

OpenVPN, PPTP supported

8.2 × 6.8 × 1.6 in

(209 × 172.2 × 42.4 mm)

1× 2.5 Gbps WAN/LAN Port + 1× Gigabit WAN/LAN Port + 2× Gigabit LAN Ports

Reset/WPS Button

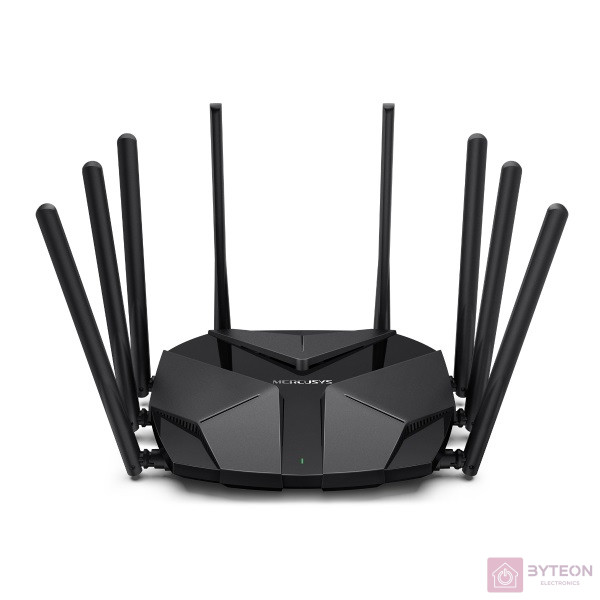

8× Fixed Omni-Directional Antennas

• AX6000 8-Stream Wi-Fi 6 Router MR90X

• Power Adapter

• Quick Installation Guide

• RJ45 Ethernet Cable

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Operating Humidity: 10%~90% Non-Condensing

• Storage Humidity: 5%~90% Non-Condensing
