Environment |
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5%~90% non-condensing
|
|---|
Dimensions (W X D X H) |
127 x 60.3 x 22 mm |
|---|
External Power Supply |
External power adapter
(Output: 5.0VDC / 0.6A) |
|---|
Interfaces |
8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX |
|---|
Standards and Protocols |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD |
|---|
Fan Quantity |
Fanless |
|---|
Data Rates |
10/100Mbps at half duplex
20/200Mbps at full duplex |
|---|
Buffer Capacity |
768Kb |
|---|
Jumbo Frame |
2KB |
|---|
Switching Capacity |
1.6Gbps |
|---|
LED |
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power |
|---|
Transfer Method |
Store and forward |
|---|
Certifications |
CE, RoHS |
|---|
Package Contents |

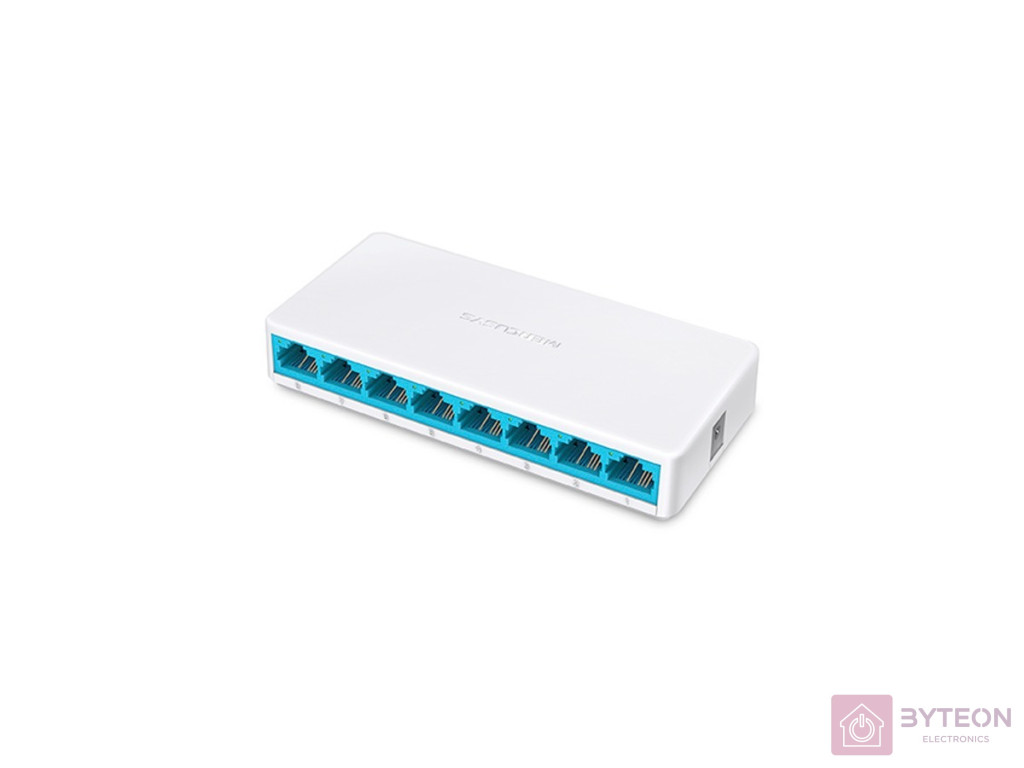

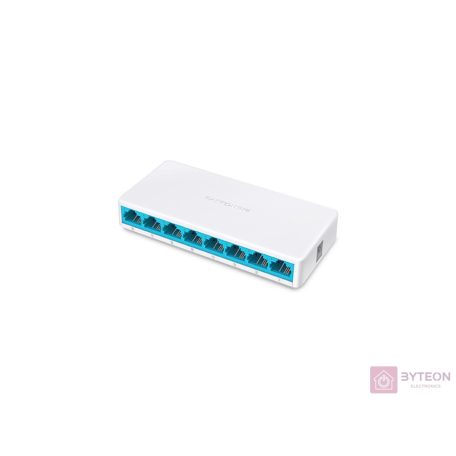

8-Port 10/100Mbps Desktop Switch
MS108
Power adapter
Quick installation guide |
|---|
