Reception Sensitivity |
• 130M: -65dBm@10% PER • 11M: -85dBm@8% PER
• 108M: -68dBm@10% PER • 6 M: -88dBm@10% PER
• 54M: -68dBm@10% PER • 1 M: -90dBm@8% PER
|
|---|
System Requirements |
Windows 10/8.1/8/7/XP (32/64bit)
|
|---|
Dimensions (W X D X H) |
0.74 × 0.58 × 0.27 in. (18.9 × 14.8 × 6.85 mm) |
|---|
Antenna Type |
Internal |
|---|
Signal Rate |
11n: Up to 150Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
|
|---|
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|
Frequency |
2.400 - 2.4835GHz |
|---|
Interfaces |
USB 2.0 |
|---|
Certifications |
CE, ROHS |
|---|
Package Contents |

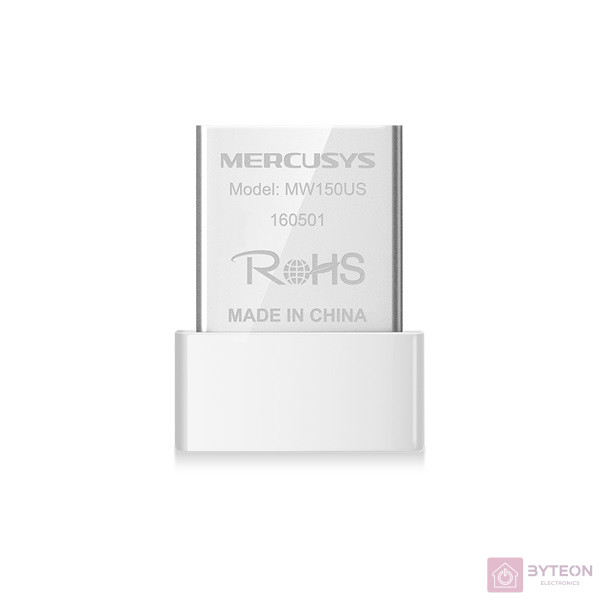

N150 Wireless Nano USB Adapter
MW150US
Quick installation guide
Resource CD
|
|---|
Environment |
Operating temperature: 0°C ~40°C (32°F ~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10%~ 90% non-condensing
Storage humidity: 5%~90% non-condensing |
|---|
Transmission Power |
<20dBm |
|---|
Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|---|
