Dimensions (W X D X H) |
1.69 × 0.68 × 0.33 in. (42.9 × 17.2 × 8.5 mm) |
|---|
Antenna Type |
Internal |
|---|
Signal Rate |
11n: Up to 300Mbps(Dynamic)
11g: Up to 54Mbps(Dynamic)
11b: Up to 11Mbps(Dynamic) |
|---|
Wireless Standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|
Frequency |
2.400 - 2.4835GHz |
|---|
Reception Sensitivity |
270M: -62dBm@10% PER
130M: -65dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER |
|---|
Interfaces |
USB 2.0 |
|---|
Certifications |
CE, ROHS |
|---|
Package Contents |

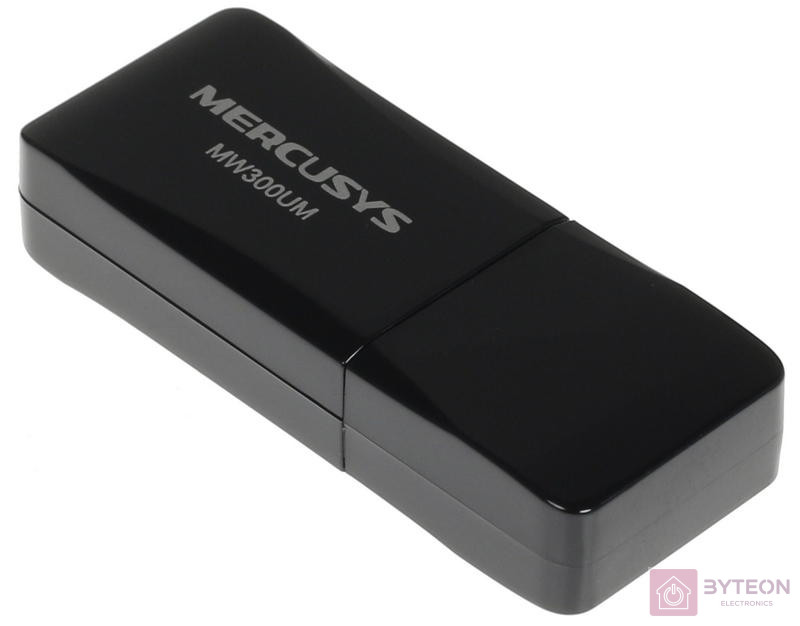

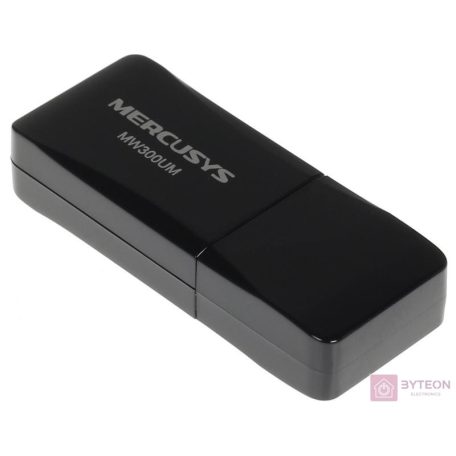

N300 Wireless Mini USB Adapter
MW300UM
Quick installation guide
Resource CD
|
|---|
Environment |
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating humidity: 10% ~ 90% Non-Condensing
Storage humidity: 5% ~ 90% Non-Condensing |
|---|
Transmission Power |
<20dBm |
|---|
Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|---|
System Requirements |
Windows 10/8.1/8/7/XP (32/64bit) |
|---|
