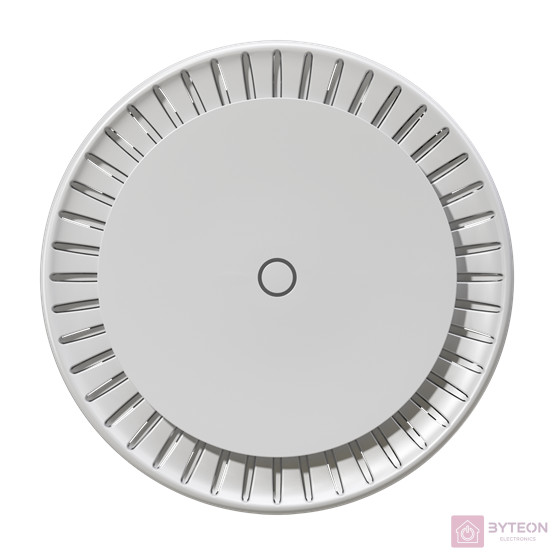

MikroTik cAP ax cAPGi-5HaxD2HaxD 802.11ax Wi-Fi 6 Vezeték nélküli Access Point
MikroTik cAP ax cAPGi-5HaxD2HaxD 802.11ax Wi-Fi 6 Vezeték nélküli Access Point
61 380 Ft

MikroTik cAP ax cAPGi-5HaxD2HaxD 802.11ax Wi-Fi 6 Vezeték nélküli Access Point

MikroTik cAP ax cAPGi-5HaxD2HaxD 802.11ax Wi-Fi 6 Vezeték nélküli Access Point
Gyártó
Mikrotik
Gyártói cikkszám
CAPGI-5HAXD2HAXD
Garancia
24 hónap
További adatok
Raktáron
61 380 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek



Specifications







































































Details
Product code cAPGi-5HaxD2HaxD
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 - 1800) MHz
Switch chip model IPQ-6010
RouterOS license 4
Operating System RouterOS (v7 only)
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes



Wireless capabilities































































Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 6
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800


Ethernet



















Details
10/100/1000 Ethernet ports 2
Number of 1G Ethernet ports with PoE-out 1


Powering







































Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 18-57 V
Max power consumption 28.2 W
Max power consumption without attachments 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V


PoE-out







































Details
PoE-out ports Ether2
PoE out Passive PoE up to 57V
Max out per port output (input 18-30 V) 600 mA
Max out per port output (input 30-57 V) 400 mA
Max total out (A) 600 mA
Total output current 0.4
Total output power 19.2


Certification & Approvals



















Details
Certification CE, FCC, IC, EAC, ROHS
IP 20


Other



















Details
CPU temperature monitor Yes
Mode button Yes


Wireless specifications





















































2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s   -100
11MBit/s   -94
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 19 -70
MCS11 17 -67










































5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -96
54MBit/s 21 -80
MCS0 24 -96
MCS7 20 -75
MCS9 19 -70
MCS11 17 -67









Adatok
Garancia (jogi személy):
24
Tömeg:
800 g/db
