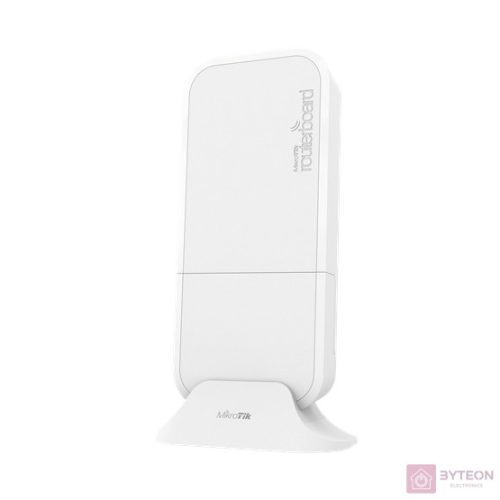

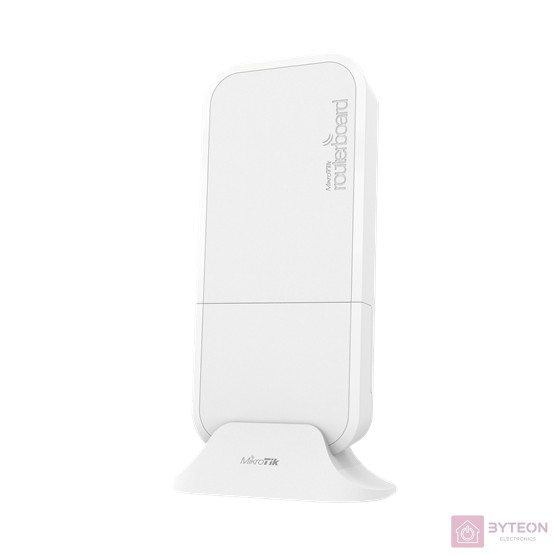

MikroTik wAP ac LTE6 kit 802.11ac 2xGbE LAN kültéri WiFi accesspoint, beépített LTE CAT6 modemmel
MikroTik wAP ac LTE6 kit 802.11ac 2xGbE LAN kültéri WiFi accesspoint, beépített LTE CAT6 modemmel
87 400 Ft

MikroTik wAP ac LTE6 kit 802.11ac 2xGbE LAN kültéri WiFi accesspoint, beépített LTE CAT6 modemmel

MikroTik wAP ac LTE6 kit 802.11ac 2xGbE LAN kültéri WiFi accesspoint, beépített LTE CAT6 modemmel
Gyártó
Mikrotik
Gyártói cikkszám
RBWAPGR-5HACD2HND&R11E-LTE6
Garancia
24 hónap
További adatok
Raktáron
87 400 Ft
Külső raktárkészlet:
1 db
Szállítás 1-3 munkanap
Részletek

Specifications























































Details
Product code RBwAPGR-5HacD2HnD&R11e-LTE6
Architecture ARM 32bit
CPU IPQ-4018
CPU core count 4
CPU nominal frequency 716 MHz
License level 4
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30°C to 60°C






Powering



































Details
PoE in 802.3af/at
PoE in input Voltage 18-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V
Max power consumption 16 W
Max power consumption without attachments 10 W





Mobile







































Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)





Wireless































































Details
AC speed AC1200
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model IPQ-4018
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2.5
Wireless 5 GHz chip model IPQ-4018
Wireless 5 GHz generation Wi-Fi 5





Ethernet















Details
10/100/1000 Ethernet ports 2





Peripherals



















Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1





Other



















Details
PCB temperature monitor Yes
Voltage Monitor Yes





Certification & Approvals















Details
Certification CE/RED, FCC, IC, EAC, ROHS





Wireless specifications











































2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 22 -100
11MBit/s 22 -94
6MBit/s 23 -95
54MBit/s 19 -78
MCS0 23 -95
MCS7 18 -73








































5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 24 -95
54MBit/s 20 -78
MCS0 24 -95
MCS7 19 -73
MCS9 17 -68








Included parts




Adatok
Garancia (jogi személy):
24
Tömeg:
830 g/db
