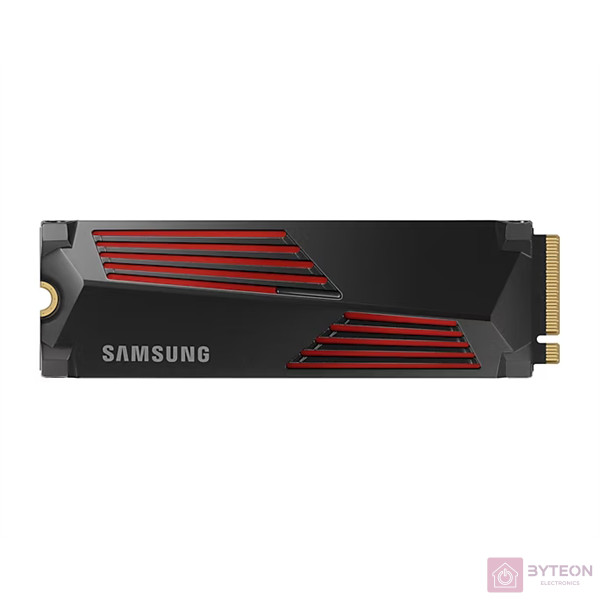

990 PRO with Heatsink PCIe 4.0 M.2 |
MZ-V9P4T0GW |
|
|
|
|
Specifications |
|
General Feature |
|
- Application: Client PCs, Game Consoles
Capacity: 4,000GB (1GB=1 Billion byte by IDEMA)
* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor: M.2 (2280)
Interface: PCIe Gen 4.0 x4, NVMe 2.0
Dimension (WxHxD): Max 80.15 x Max 25 x Max 8.88mm (with heatsink)
Weight: Max 28.0g Weight
Storage Memory: Samsung V-NAND TLC
Controller: Samsung in-house Controller
Cache Memory: Samsung 4GB Low Power DDR4 SDRAM
.
|
|
|
Special Feature |
|
- TRIM Support: Supported
S.M.A.R.T Support: Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support: Not supported
Device Sleep Mode Support: Yes
.
|
|
|
Performance |
|
- Sequential Read: Up to 7,450 MB/s
* Performance may vary based on system hardware & configuration
Sequential Write: Up to 6,900 MB/s
* Performance may vary based on system hardware & configuration
Random Read (4 KB, QD32): Up to 1,600,000 IOPS
* Performance may vary based on system hardware & configuration
Random Write (4KB, QD32): Up to 1,550,000 IOPS
* Performance may vary based on system hardware & configuration
Random Read (4 KB, QD1): Up to 22,000 IOPS
* Performance may vary based on system hardware & configuration
Random Write (4 KB, QD1): Up to 80,000 IOPS
* Performance may vary based on system hardware & configuration
.
|
|
|
Environment |
|
- Average Power Consumption (system level):
*Average: 6.5 W
*Maximum: 8.6 W (Burst mode)
* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle): Max. 55 mW
* Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage: 3.3 V ± 5 % Allowable voltage
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
Operating Temperature: 0 - 70 °C Operating Temperature
Shock: 1,500 G & 0.5 ms (Half sine)
.
|
|
|
Accessories |
|
- Installation Kit: Not Available
.
|
|
|
Software |
|
- Management SW: Magician Software for SSD management
.
|
|
|
Warranty |
|
- 5-year Limited Warranty or 2400 TBW Limited Warranty
.
|
|
