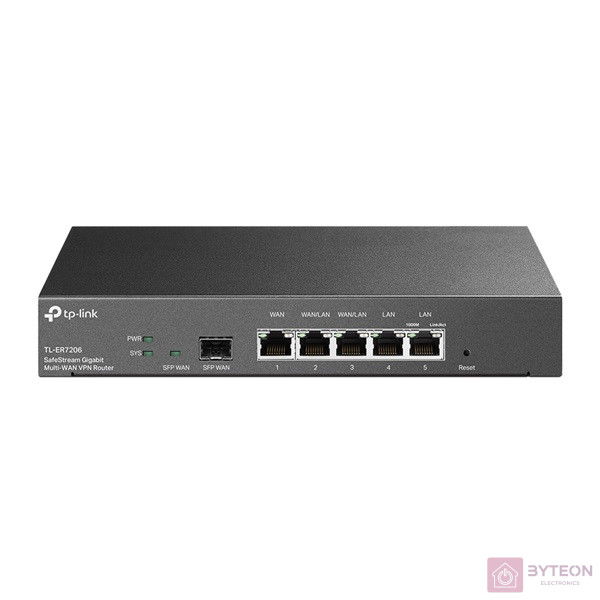

TP-LINK TL-ER7206 vezetékes router Gigabit Ethernet Fekete
TP-LINK TL-ER7206 vezetékes router Gigabit Ethernet Fekete
89 500 Ft

TP-LINK TL-ER7206 vezetékes router Gigabit Ethernet Fekete

TP-LINK TL-ER7206 vezetékes router Gigabit Ethernet Fekete
Gyártó
TPLink
Gyártói cikkszám
TL-ER7206
Garancia
60 hónap
További adatok
Raktáron
89 500 Ft
Külső raktárkészlet:
3 db
Szállítás 1-3 munkanap
Részletek







































Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface • 1 Fixed Gigabit SFP WAN Port

• 1 Fixed Gigabit RJ45 WAN Port

• 2 Fixed Gigabit RJ45 LAN Ports

• 2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply 100–240 V~50/60 Hz
Flash SPI 4MB + NAND 128MB
DRAM 512MB
LED PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in.

(226 × 131 × 35 mm)


















PERFORMANCE
Concurrent Session 150,000
IPsec VPN Throughput 291.6 Mbps






























BASIC FUNCTIONS
WAN Connection Type • Static/Dynamic IP

• PPPoE

• PPTP

• L2TP
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server

• DHCP Address Reservation

• Multi-IP Interfaces*

• Multi-Net DHCP*
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy






































ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing • Static Routing

• Policy Routing
Bandwidth Control • IP/Port-based Bandwidth Control

• Guarantee & Limited Bandwidth
Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing§, Failover)

• Online Detection
NAT • One-to-One NAT§

• Multi-Net NAT

• Virtual Server

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security • SPI Firewall

• VPN Passthrough

• FTP/H.323/PPTP/SIP/IPsec ALG

• DoS Defence, Ping of Death

• Local Management
Session Limit IP-based Session Limit


























VPN
IPsec VPN • 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IKEv1/v2*

• MD5, SHA1 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server

• 10 PPTP VPN Clients

• 50 Tunnels

• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server

• 10 L2TP VPN Clients

• 50 Tunnels

• L2TP over IPSec
OpenVPN • OpenVPN Server*

• 10 OpenVPN Clients*

• 50 OpenVPN Tunnels*


























SECURITY
Filtering WEB Group Filtering§

URL Filtering

Web Security§
ARP Inspection • Sending GARP Packets§

• ARP Scanning§

• IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN
Access Control Source/Destination IP Based Access Control














AUTHENTICATION
Web Authentication • No Authentication

• Simple Password*

• Hotspot(Local User / Voucher* / SMS* / Radius*)

• External Radius Sever

• External Portal Sever*

• Facebook*


































MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3*

• Diagnostics (Ping & Traceroute)§

• NTP Synchronize§

• Syslog Support
Management Features • Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

• ZTP (Zero-Touch Provisioning)**






















OTHERS
Certification CE, FCC, RoHS
Package Contents • ER7206

• Power Cord

• Quick Installation Guide
Environment • Operating Temperature: 0–40 ? (32–104 ?);

• Storage Temperature: -40–70 ? (-40–158 ?)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

Adatok
Garancia (jogi személy):
60
Tömeg:
1,41 kg/db
