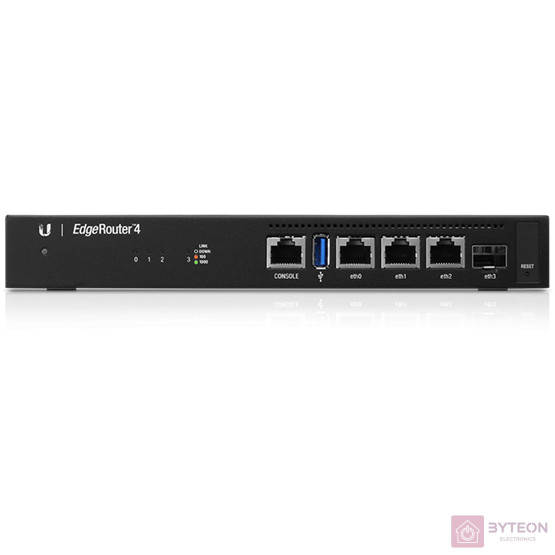

EdgeRouter 4 |
|---|
Dimensions |
229 x 136.5 x 31.1 mm
(9.02 x 5.37 x 1.22") |
Weight |
795 g
(1.75 lb) |
Max. Power Consumption |
13W |
Power Method |
Universal AC Power Cord (C13) |
Power Supply |
Internal AC/DC Power Adapter, 30W DC |
Supported Voltage Range |
100-240VAC, 50/60 Hz Universal Adapter |
Button |
Reset |
LEDs
Data Ports
SFP Data Port |
Speed/Link/Activity
Link/Activity |
Processor |
4-Core 1 GHz MIPS64 |
System Memory |
1 GB DDR3 RAM |
On-Board Flash Storage |
4 GB eMMC, 8 MB SPI NOR |
ESD/EMP Protection |
Air: ± 24 kV, Contact: ± 24 kV |
Management Interfaces |
(1) RJ45 Serial Port
(4) Ethernet Ports (Default eth0) |
Networking Interfaces |
(3) 10/100/1000 RJ45 Ports
(1) 1 Gbps SFP Port |
Operating Temperature |
-10 to 50° C (14 to 122° F) |
Operating Humidity |
10 - 90% Noncondensing |
Certifications |
CE, FCC, IC |
