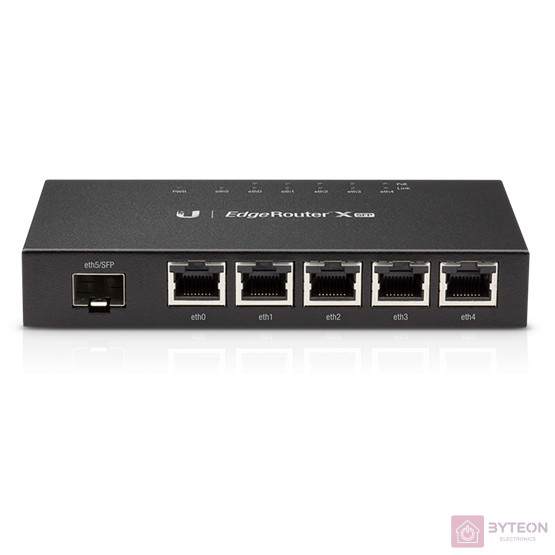

EdgeRouter |
|---|
Dimensions |
142 x 75 x 23 mm (5.59 x 2.95 x 0.91") |
Weight |
215 g (7.58 oz) |
Max. Power Consumption |
5W |
Power Input |
24VDC, 2.5A Power Adapter (Included) |
Power Supply |
External AC/DC Adapter |
Supported Voltage Range |
9 to 26VDC |
Buttons |
Reset |
LEDs |
Power, Link/Activity (6), PoE (5) |
Processor |
Dual-Core 880 MHz, MIPS1004Kc |
Memory |
256 MB DDR3 RAM |
Code Storage |
256 MB NAND |
Certifications |
CE, FCC, IC |
Wall Mount |
Yes |
Operating Temperature |
-10 to 45° C (14 to 113° F) |
Operating Humidity |
10 to 90% Noncondensing |
Networking Interfaces |
|---|
Data/PoE Input Port |
(5) 10/100/1000 RJ45 Ports |
Data Port |
(1) 100/1000 SFP Port |
PoE with 24VDC Power Adapter |
|---|
PoE Out Voltage Range |
22-24VDC |
Max. PoE Wattage Per Data Port |
12W (24V) |
Max. PoE Wattage Combined for All 5 Data Ports |
50W |
PoE Method |
Passive |
