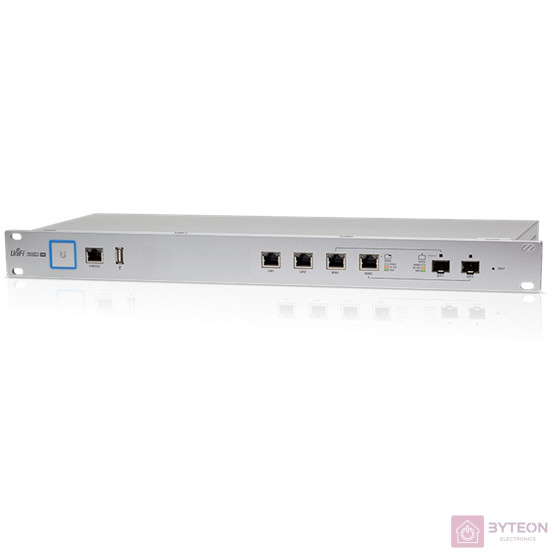

Build your secure and flexible network with Ubiquiti UniFi® Security Gateway Pro, part of the UniFi Enterprise System. The Unifi Security Gateway Pro is a high-performance Gigabit router, delivering robust security and advanced routing features. Two combination SFP/RJ45 ports provide fiber connectivity options capable of speeds of up to 1 Gbps.
Advanced hardware-accelerated packet forwarding delivers 1+ million packets per second performance. The Unifi Security Gateway PRO offers four independent Ethernet ports with a full line rate of 4 Gbps.
Features:
- (2) Gigabit RJ45 Ethernet Ports
- (2) Gigabit Combination RJ45/SFP Ports
- 4 Gbps Full Line Rate Layer 3 Forwarding
- 1+ Million Packets per Second for 64-Byte Packets
- Sophisticated and Intuitive Graphical UI Control
- Integrated and Managed by UniFi Application
Mechanical |
|---|
Dimensions |
484 x 44 x 164 mm (19.06 x 1.73 x 6.46") |
Weight |
2.3 kg (5.07 lb) |
Max. Power Consumption |
40W |
Power Supply |
Internal AC/DC Power Adapter, 60W (24V, 2.5A) |
Power Input |
110 - 240VAC |
LEDs
System
Data Ports |
Status
Speed/Link/Activity |
Networking Interfaces
Serial Console Port
Data Ports |
(1) RJ45 Serial Port
(2) 10/100/1000 RJ45 LAN Ports
(2) 1 Gbps RJ45/SFP Combination WAN Ports |
Layer 3 Forwarding Performance
Packet Size: 64 Bytes
Packet Size: 512 Bytes or Larger |
2,400,000 pps
4 Gbps (Line Rate) |
Processor |
Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing |
System Memory |
2 GB DDR3 RAM |
On-Board Flash Storage |
4 GB |
Certifications |
CE, FCC, IC |
Rackmount |
Yes |
Operating Temperature |
-10 to 45° C (14 to 113° F) |
Operating Humidity |
10 to 90% Noncondensing |
