188 mm x 100.5 mm x 175 mm
|
Product color
|
White
|
Processor
|
MT7628DA
|
ROM
|
16MB
|
Internal memory
|
64MB
|
2.4GHz Wi-Fi
|
2x2 (supports the IEEE 802.11n protocol, maximum possible speed of 300Mbps)
|
5GHz Wi-Fi
|
2x2 (supports the IEEE 802.11ac protocol, maximum possible speed of 867Mbps)
|

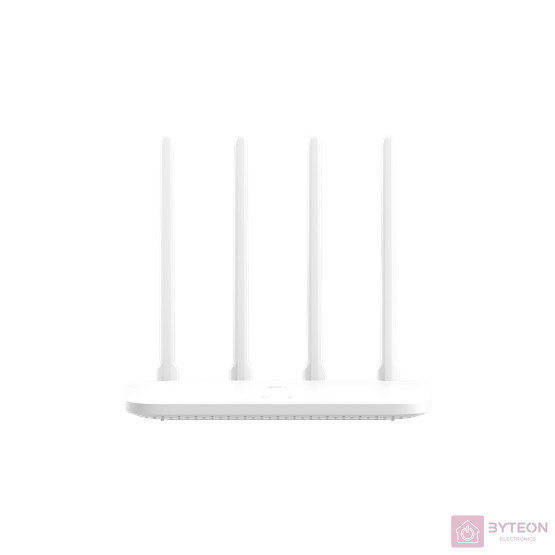

Product antennas
|
4 external omnidirectional antennas (two 2.4GHz antennas with maximum gain of 5dBi; two 5GHz antennas with maximum gain of 6dBi)
|
Product heat dissipation
|
Natural heat dissipation
|
Total interfaces
|
Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX) One 10/100M self-adaptive WAN port (Auto MDI/MDIX)
|
LED indicator lights
|
2
|
System reset buttons
|
1
|
Power input interface
|
1
|
Protocol standards
|
IEEE 802.11a/b/g/n/ac, IEEE 802.3/3u
|
Certification standards
|
GB9254-2008 YD/T993-1998 GB4943.1-2011
|
Warranty information
|
1 year whole device warranty
|
|
|
|
|
|
|
Wireless specifications
|
|
|
|
|
2.4GHz and 5GHz
|
Modulation
|
11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps) |
|
11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
|
|
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15
|
.
|
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 to MCS9 (supports 2 streams)
|
|
|
|
|
|
|
wifi transmission power
|
|
|
|
|
<20dBm(2.4GHz)
|
.
|
<23dBm(5GHz)
|
|
|
|
|
|
|
Software specifications
|
|
|
|
|
Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT
|
Wireless security
|
WPA-PSK/WPA-PSK2 encryption, wireless access control (blacklist and whitelist), SSID hiding, smart unauthorized access prevention
|
Management Application
|
Supports web, Android, and iOS
|
Product accessories
|
1 x user manual (includes warranty card) 1 x product power supply (12V/0.6A)
|
|
|
|
|
|
|
Operating environment
|
|
|
|
Operating temperature: 0–40°C
|
0–40°C
|
Operating humidity
|
10%–90% RH (no condensation)
|
Storage temperature
|
-40–70°C
|
Storage humidity:
|
5%–90% RH (no condensation)
|
|
|
|
|
Package contents
|
|
|
|
|
x1
|
User manual
|
x1
|
Power cable
|
x1
|
