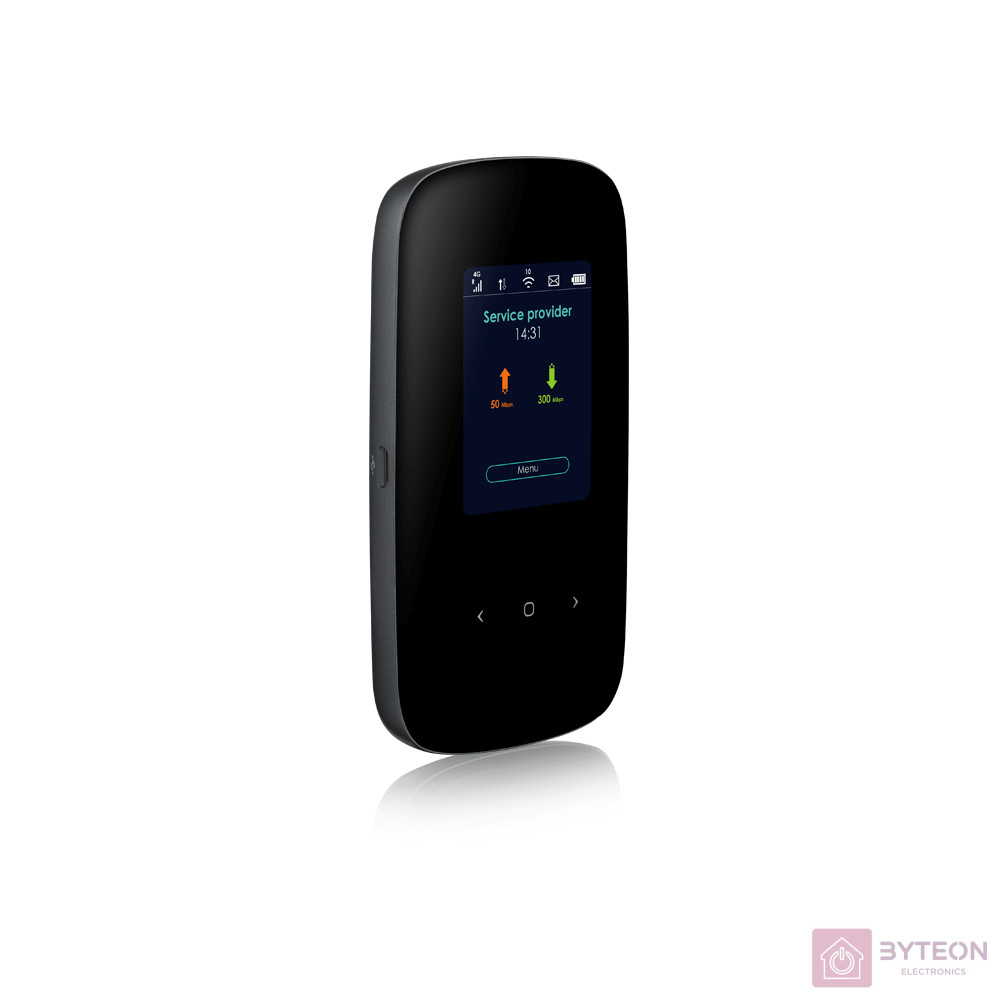

Zyxel LTE2566-M634 vezetéknélküli router Kétsávos (2,4 GHz / 5 GHz) 3G 4G Fekete

LTE Air Interface

• Standard compliant: 3GPP release 10, category 6


• Supported frequency: LTE B1/B3/B7/B8/B20/B28a/B38/B40/B41


• Carrier aggregation support:



  • B1+B1/B3/B/B8/B20/B28a/38/40/41


  • B3+B3/B7/B8/B20/28a/B38/B40/B41


  • B7+B7/B8/B20/B28a


  • B20+B38/40


  • B38+B38, B40+B40, B41+B41






• FDD LTE peak data rate:



  • 300 Mbps DL within 40 MHz bandwidth (CA)


  • 50 Mbps UL within 20 MHz bandwidth






• TDD LTE peak data rate:



  • 224 Mbps DL within 40MHz bandwidth (CA)


  • 10 Mbps UL within 20 MHz bandwidth





UMTS Air Interface

• Standard compliant: DC-HSDPA/ HSPA+ compliant


• Supported frequency: HSPA+/UMTS 2100/900 MHz (band 1/8)


• DC-HSPA+ downlink DL up to 42 Mbps


• HSUPA UL up to 5.76 Mbps

Hardware Interface

• One 3FF/Micro SIM card slot


• One USB port for power supply or USB with RNDIS


• Reset button


• Power button


• Left, Home/OK, Right (touch sensing keys)


• DC input (5V/1.5A, Micro USB)


• 2.4-inch TFT display


• Service provider name


• 3G/4G network status


• Roaming status


• Signal strength


• Battery status


• WiFi status

Battery

• 3000 mAh Lithium-ion polymer, un-removable battery


• Up to 10 hours operating time*


• Up to 300 hours standby time*
