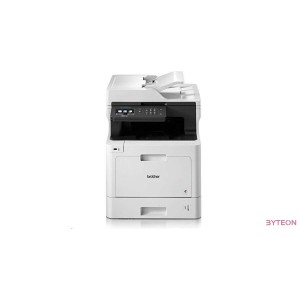

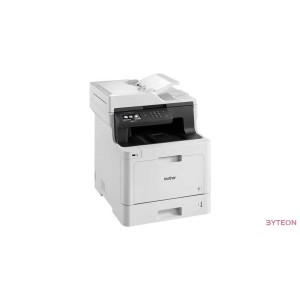

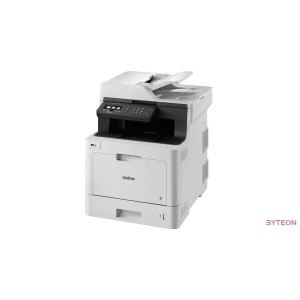

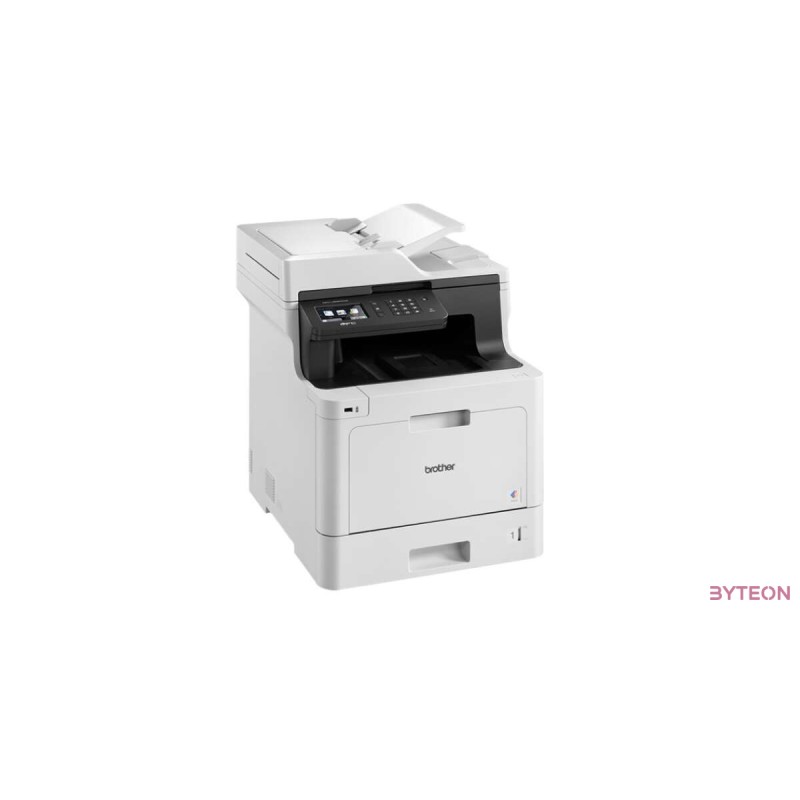

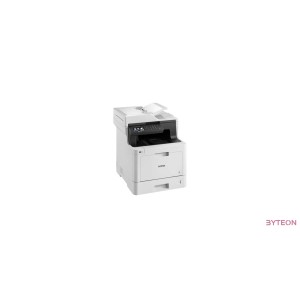

Brother MFC-L8690CDW wireless színes lézernyomtató/másoló/síkágyas scanner/fax

Name: Brother MFC-L8690CDW wireless színes lézernyomtató/másoló/síkágyas scanner/fax
Brand: Brother
SKU: 100085
Price: 233330 HUF
Availability: InStock

Cikkszám 100085

Márka Brother

233 330 Ft

Adóval együtt

Mennyiség

Raktáron: 20 Elemek

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Leírás
Termék részletei

Leírás

Garancia: 3 Év

A professional colour laser printer, the MFC-L8690CDW provides great print speeds, combined with comprehensive mobile and cloud connectivity options, making integration into your office seamless.

General Specifications

Printer Type			Laser
Print Method			Electrophotographic Laser Printer
Memory Capacity	Standard		(DCP-L8410CDW/MFC-L8690CDW/MFC-L8900CDW) 512 MB (MFC-L9570CDW) 1 GB
				LCD (Liquid Crystal Display)		(DCP-L8410CDW/MFC-L8690CDW) 3.7 in. (93.4 mm) TFT Colour Touchscreen LCD 1 (MFC-L8900CDW) 5.0 in. (125.9 mm) TFT Colour Touchscreen LCD 1 (MFC-L9570CDW) 7.0 in. (176.1 mm) TFT Colour Touchscreen LCD *1
Power Source			220 to 240 V AC 50/60 Hz
Power Consumption (Average)	Peak		Approximately 1230 W
	Printing *2		Approximately 580 W at 25 °C
	Printing (Quiet Mode) *2		Approximately 340 W at 25 °C
	Copying *2		Approximately 550 W at 25 °C
	Copying (Quiet Mode) *2		Approximately 350 W at 25 °C
	Ready *2		Approximately 70 W at 25 °C
	Sleep *2		Approximately 10 W
	Deep Sleep *2		(DCP-L8410CDW) Approximately 1.3 W (MFC-L8690CDW) Approximately 1.4 W (MFC-L8900CDW/MFC-L9570CDW) Approximately 1.7 W
	Power Off 2 3 *4		Approximately 0.03 W
Dimensions (Typical outline view)			Unit: mm (DCP-L8410CDW/MFC-L8690CDW) * : 435 : 539 * : 526 (MFC-L8900CDW/MFC-L9570CDW) * : 495 : 549 * : 526
				Weights (with supplies)		(DCP-L8410CDW) 27.6 kg (MFC-L8690CDW) 27.9 kg (MFC-L8900CDW) 28.7 kg (MFC-L9570CDW) 29.7 kg
Noise Level	Sound Pressure	Printing	LpAm = 49 dB (A)
				Printing (Quiet Mode)	LpAm = 44 dB (A)
		Ready	LpAm = Inaudible
		Sound Power	Copying 5 6	Monochrome (Excluding Belgium) LWAd = 6.40 B (A) (For Belgium) LWAd = 6.35 B (A)
				Colour (Excluding Belgium) LWAd = 6.41 B (A) (For Belgium) LWAd = 6.36 B (A)
	Printing (Quiet Mode)		Monochrome LWAd = 6.00 B (A)
			Colour LWAd = 6.00 B (A)
	Ready 5 6		LWAd = Inaudible
	Temperature	Operating		10 to 32 °C
		Storage		0 to 40 °C
Humidity	Operating		20 to 80% (without condensation)
	Storage		10 to 90% (without condensation)
ADF (automatic document feeder)			(DCP-L8410CDW/MFC-L8690CDW) Up to 50 sheets (MFC-L8900CDW) Up to 70 sheets (MFC-L9570CDW) Up to 80 sheets For best results we recommend: Temperature: 20 to 30 °C Humidity: 50 to 70% Paper: 80 g/m2
Laser Notice			Click here for details.

Measured diagonally

USB connections to computer

Measured according to IEC 62301 Edition 2.0.

Power consumption varies slightly depending on the usage environment.

Measured in accordance with the method described in RAL-UZ171.

Office equipment with LWAd>6.30 B(A) is not suitable for use in room where people require high levels of concentration. Such equipment should be placed in separate rooms because of noise emissions.

Document Size Specification

Document Size	ADF Width	105 to 215.9 mm
	ADF Length	147.3 to 355.6 mm
	Scanner Glass Width	Maximum 215.9 mm
	Scanner Glass Length	(DCP-L8410CDW/MFC-L8690CDW) Maximum 300 mm (MFC-L8900CDW/MFC-L9570CDW) Maximum 355.6 mm

Print Media Specifications

Paper Input	Paper Tray (Standard)	Paper Type	Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
		Paper Size	A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal
		Paper Weight	60 to 105 g/m2
		Maximum Paper Capacity	Up to 250 sheets of 80 g/m2 Plain Paper
	Multi-Purpose Tray (MP tray)	Paper Type	Plain Paper, Letterhead, Coloured Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
		Paper Size	Width: 76.2 to 215.9 mm Length: 127 to 355.6 mm Envelope: COM-10, DL, C5, Monarch
		Paper Weight	60 to 163 g/m2
		Maximum Paper Capacity	Up to 50 sheets of 80 g/m2 Plain Paper Envelope: 10 envelopes up to 10 mm thick
	Paper Tray 2, 3, 4 (Optional) 1 2	Paper Type	Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper
		Paper Size	A4, Letter, A5, Executive, Legal, Folio, Mexico Legal
		Paper Weight	60 to 105 g/m2
		Maximum Paper Capacity	LT-330CL Up to 250 sheets of 80 g/m2 Plain Paper LT-340CL *3 Up to 500 sheets of 80 g/m2 Plain Paper
Paper Output *4	Face Down Output Tray		Up to 150 Sheets of 80 g/m2 Plain Paper (face down delivery to the face down output paper tray)
Paper Output *4	Face Up Output Tray		One sheet (face up delivery to the face up output tray)
2-sided	Automatic 2-sided Printing	Paper Type	Plain Paper, Letterhead, Coloured Paper, Thin Paper, Recycled Paper, Glossy Paper
		Paper Size	A4
		Paper Weight	60 to 105 g/m2

(DCP-L8410CDW/MFC-L8690CDW) Maximum number of Lower Trays: Up to three LT-330CL Lower Trays

(MFC-L8900CDW/MFC-L9570CDW) Maximum number of Lower Trays: Up to three LT-330CL Lower Trays or up to two Lower Trays in any other combinations

Applicable to MFC-L8900CDW/MFC-L9570CDW

For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.

Fax Specifications

NOTE: This feature is available for MFC models.

Compatibility		ITU-T Super Group 3
Coding System		MH / MR / MMR / JBIG
Modem Speed		33,600 bps (with Automatic Fallback)
2-sided Print Receiving		Yes
Automatic 2-sided Sending		(MFC-L8690CDW/MFC-L8900CDW/MFC-L9570CDW) Yes (from ADF)
Scanning Width		Maximum 208 mm
Printing Width		Maximum 208 mm
Greyscale		8 bit / 256 levels
Resolution	Horizontal	203 dpi
	Vertical	Standard: 98 dpi Fine: 196 dpi Super fine: 392 dpi Photo: 196 dpi
			Address Book	300 Locations
Groups		Up to 20
Broadcasting		350 Locations
Automatic Redial		3 times at 5 minutes intervals
Memory Transmission		Up to 500 pages *1
Out of Paper Reception		Up to 500 pages *1

‘Pages’ refers to the ‘ITU-T Test Chart #1’ (a typical business letter, Standard resolution, JBIG code).

Copy Specification

Copy Width	Maximum 210 mm
Automatic 2-sided Copy	(MFC-L8690CDW/MFC-L8900CDW/MFC-L9570CDW) Yes (from ADF)
Sort Copy	Yes
Stack Copy	Up to 999 pages
Enlarge/Reduce	25 to 400% (in increments of 1%)
Resolution	Maximum 1200 x 600 dpi
First Copy Out Time *1	Monochrome Less than 16 seconds at 23 °C / 230 V
First Copy Out Time *1	Colour Less than 17 seconds at 23 °C / 230 V

From Ready Mode and standard tray

Scanner Specifications

Colour / Black	Yes / Yes
TWAIN Compliant	Yes (Windows® 7 / Windows® 8 / Windows® 8.1 / Windows® 10) (macOS v10.10.5, v10.11.x, v10.12)
WIA Compliant	Yes (Windows® 7 / Windows® 8 / Windows® 8.1 / Windows® 10)
ICA Compliant	Yes (macOS v10.10.5, v10.11.x, v10.12)
Colour Depth	48 bit colour Processing (Input) 24 bit colour Processing (Output)
Grey Scale	16 bit colour Processing (Input) 8 bit colour Processing (Output)
Resolution *1	Up to 19200 x 19200 dpi (interpolated) Up to 1200 x 2400 dpi (from Scanner Glass) Up to 1200 x 600 dpi (from ADF)
Scanning Width	Maximum 210 mm
Automatic 2-sided Scanning	(MFC-L8690CDW/MFC-L8900CDW/MFC-L9570CDW) Yes (from ADF)

Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows® 7, Windows® 8, Windows® 8.1 and Windows® 10 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility)

Printer Specifications

Automatic 2-sided Print		Yes
Emulation		PCL6, BR-Script3, PDF Version 1.7, XPS Version 1.0
Resolution		600 x 600 dpi, 2,400 dpi class (2400 x 600) quality
Print Speed 1 2	1-sided print	Monochrome Up to 33 pages/minute (Letter size) Up to 31 pages/minute (A4 size)
		Colour Up to 33 pages/minute (Letter size) Up to 31 pages/minute (A4 size)
	2-sided Print	Monochrome Up to 14 sides/minute (Up to 7 sheets/minute) (Letter or A4 size)
		Colour Up to 14 sides/minute (Up to 7 sheets/minute) (Letter or A4 size)
First Print Time *3		Monochrome Less than 15 seconds at 23 °C / 230 V
		Colour Less than 15 seconds at 23 °C / 230 V

The print speed may change depending on the type of document you print.

Print speed may be slower when the machine is connected by wireless LAN.

From Ready mode and standard tray

Interface Specifications

USB 1 2	Hi-Speed USB 2.0 Use a USB 2.0 interface cable that is no more than 2.0 metres long.
LAN	10Base-T/100Base-TX/1000Base-T 3 4
Wireless LAN	IEEE 802.11b/g/n (Infrastructure Mode) IEEE 802.11g/n (Wi-Fi Direct®)
NFC *5	(MFC-L8900CDW/MFC-L9570CDW) Yes

Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.

Third party USB ports are not supported.

Use a straight-through Category 5e (or greater) twisted-pair cable.

When you connect the machine to a Gigabit Ethernet Network, use network devices complying with the 1000BASE-T specification.

When you connect an external IC card reader, use a HID class driver supported device.

Direct Print Feature Specifications

Compatibility	PDF version1.7, JPEG, Exif+JPEG, PRN (created by own printer driver), TIFF (scanned by Brother models), XPS version 1.0
Interface	USB direct interface : Front x 1, Rear x 1(MFC-L9570CDW)

Supported Protocols and Security Features

Ethernet: 10Base-T/100Base-TX/1000Base-T

Wireless LAN: IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)

Protocols (IPv4): ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), SNTP Client, LDAP, IMAP4

Protocols (IPv6): NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, TELNET Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, SNTP Client, LDAP, Web Services (Print/Scan), IMAP4

Network Security (Wired): APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec

Network Security (Wireless): APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP3, IMAP4), SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPSec

Wireless Network Security: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) *1

Wireless Certification: Wi-Fi Certification Mark License (WPA™/WPA2™ - Enterprise, Personal), Wi-Fi Protected Setup (WPS) Identifier Mark License, Wi-Fi CERTIFIED™ Wi-Fi Direct

Wi-Fi Direct supports WPA2-PSK (AES) only.

Consumables & Accessories

Toner Cartridge

TN-421BK	Black Standard Approx. 3000 pages in accordance with ISO/IEC 19798
TN-421C	Cyan Standard Approx. 1800 pages in accordance with ISO/IEC 19798
TN-421M	Magenta Standard Approx. 1800 pages in accordance with ISO/IEC 19798
TN-421Y	Yellow Standard Approx. 1800 pages in accordance with ISO/IEC 19798
TN-423BK	Black High Yield Approx. 6500 pages in accordance with ISO/IEC 19798
TN-423C	Cyan High Yield Approx. 4000 pages in accordance with ISO/IEC 19798
TN-423M	Magenta High Yield Approx. 4000 pages in accordance with ISO/IEC 19798
TN-423Y	Yellow High Yield Approx. 4000 pages in accordance with ISO/IEC 19798
